Kawasaki KAF950 Mule 3010 Diesel UTV Repair Manual 2003–2007 (P/N 99924-1306-02)
472 Pages • ZIP Download: Printable PDF • 9.28 MB
Kawasaki Models Covered & Key Technical Specifications
Models & Model Codes: KAF950 Mule 3010 Diesel (KAF950-B1, KAF950-B2)
Model Years: 2003–2007 (2003, 2004, 2005, 2006, 2007)
Beginning Frame Numbers: KAF950-B1: JK1AFDB1□3B500001; KAF950-B2: JK1AF950BBB600101 or JK1AFDB1□4B501501 (□ = variable digit).
-
Engine displacement: 953 mL
-
Engine type: 4-stroke, OHV, Diesel, 3 cylinder
-
Cooling system: Liquid-cooled
-
Alternator output: 12V, 40 A
-
Battery: 12 V 52 Ah
-
Primary reduction system: Belt drive torque converter
-
Transmission / drive: High/Low forward ranges and Low reverse; selectable 2WD/4WD
-
Brake type: Drum (hydraulic)
-
Fuel system: Denso VE type injection pump
Kawasaki Manual Features & Selected Content Preview

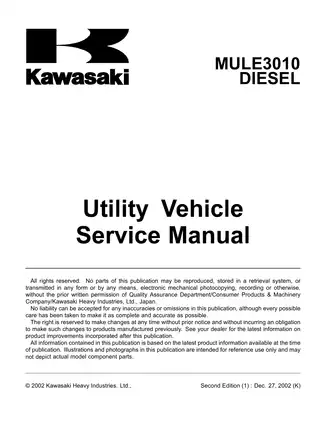

Kawasaki Heavy Industries’ MULE3010 DIESEL Utility Vehicle Service Manual, P/N 99924-1306-02, Second Edition (1), issued December 27, 2002, documents the 2003 KAF950-B1 and 2004 KAF950-B2.

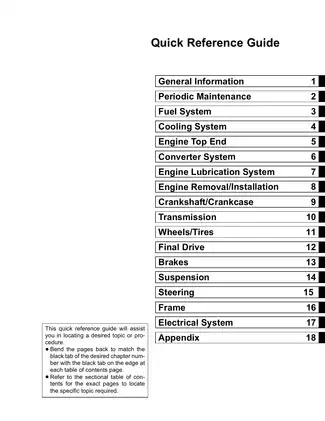

Searchable Text, Bookmarks and Wiring Detail
Search and diagram access: Body text is searchable, with embedded bookmarks for chapters, procedures, and tables. Text within the wiring diagrams and injection-pump troubleshooting charts is not searchable. Small wiring labels are readable when zoomed in.
The ZIP contains one printable English PDF with 472 pages total, including 10 opening pages, nine blank separator pages within the main sections, and the closing model-application/publication page.
Diesel Engine, B1/B2 Converter and Chassis Repair
The following is a selection of covered work. Other topics include spark-arrester cleaning and fuel-filter water draining.
-
Diesel engine repair: Compression testing, cylinder-head removal and installation, rocker-arm and valve-lifter service, valve-guide and seat repair, engine removal, and crankshaft/crankcase work.
-
Fuel injection: Nozzle testing, pump removal and installation, injection-timing inspection and adjustment, throttle setup, and symptom-based troubleshooting.
-
B1/B2 torque converters: Separate exploded views and procedures for covers, belts, drive and driven pulleys, bushings, springs, and wear shoes, with B2-specific adjustments.
-
Transmission and final drive: Case splitting and assembly, shift-mechanism inspection, bearing and seal replacement, differential service, propeller shafts, axles, and joint boots.
-
Brakes and chassis: Brake bleeding, master- and wheel-cylinder service, drum and brake-panel repair, parking-brake adjustment, wheel alignment, steering-gear setup, suspension, and body-component removal.
-
Cooling system: Front and rear radiator removal, cap testing, water-pump replacement and inspection, thermostat testing, coolant service, and fan-switch checks.
-
Electrical diagnosis: Alternator and starter-motor service, glow-plug and preheating-control tests, fuel-cut solenoid checks, and separate B1/B2 wiring diagrams.
Written primarily for trained mechanics in a properly equipped shop, this manual also supports owners doing basic maintenance and repair who understand mechanics, tool use, and workshop procedures; unfamiliar work calls for qualified mechanics.
Engine Internals and Lubrication
The top-end chapter includes cylinder-head warp checks and rocker-shaft wear inspection. Overcutting a valve seat can sink the valve beyond the adjustable clearance range, requiring cylinder-head replacement.
Lower-engine coverage extends to timing gears, camshaft bearings, connecting rods, crankshaft bearing inserts, pistons, cylinder boring and honing, and crankcase inspection. The lubrication chapter pairs the Engine Oil Flow Chart with oil-pressure testing, oil-pump inspection, and relief-valve service.
Factory tool references include compression gauge adapter 57001-1431 and crankcase splitting tool assembly 57001-1098. Exploded views identify torque, locking-agent, grease, adhesive, and sealant requirements; specification tables distinguish standard dimensions from service limits.
Injection Timing and Pump-Repair Limits
The fuel chapter covers idle and maximum-speed adjustment, injection-pipe service, nozzle pressure and spray-pattern checks, and dial-gauge timing work using adapter 57001-1430. Troubleshooting charts address hard starting, unstable idling, stalling, power loss, and excessive exhaust smoke.
Pump and nozzle repair: These units are not intended for field disassembly or hand rebuilding. Malfunctioning units are to be replaced or handled by a qualified diesel-injection repair facility.
Converter Variants and Final-Drive Setup
The manual separates B1 and B2 converter assemblies, belt specifications, wear-shoe data, drive ratios, and differential-gear-housing tightening data. B2 procedures include belt-deflection and spider-shoe clearance adjustment. That distinction helps prevent selecting a B1 procedure or specification for a B2 machine.
Loading the B1 converter clutch holder against the spider instead of the pulley cover can break the spider assembly. B2 drive-pulley work calls out holder 57001-1548 and wrench 57001-1549.
The Transmission Sectional Figure supports the Hi/Low, 2WD/4WD, and differential shift-mechanism sections. Final-drive setup includes LSD clutch inspection, pinion and ring-gear work, bearing preload, tooth-contact patterns, and backlash adjustment, with pinion gear holder 57001-1281 identified.
Cooling, Chassis and Circuit Diagnosis
The Cooling System Flow Chart shows the relationship between the engine and both radiators. Cooling procedures distinguish the front radiator cap, thermostat, fan switches, and coolant-temperature warning switch.
Chassis work extends to struts, rear shock absorbers, leaf springs, steering knuckles, and the rear subframe. Brake drum remover 57001-1260 is among the specified brake-service tools.
The Battery Testing Chart, component-location pages, and circuit tests support electrical fault isolation. Starter-relay, preheating-timer, and glow-plug-relay checks complement the Cable, Wires, and Hose Routing drawings. The alternator section warns that a megger or another high-capacity test source can damage the rectifier.
Because this manual covers rotating converter parts, diesel injection equipment, brake hydraulics, battery charging and heavy component removal, use the specified support, isolation and test equipment. Complex fuel-system, brake and internal-engine repair should be handled by a qualified technician when the required tools or experience are not available.
A Preview of Compression, Timing and Pulley Specifications
Cylinder compression: With the engine warmed and cranking at 300 rpm, the standard is 3,330 kPa (483 psi); the service limit is 2,990 kPa (434 psi).
Injection timing: The dial-gauge inspection specifies 0.81 ± 0.03 mm plunger stroke with No. 1 piston at TDC on its compression stroke.
B2 drive pulley: The spider-shoe inspection specifies a standard shoe side clearance of 0.05–0.20 mm.
