1987–2004 Kawasaki Vulcan 1500 VN1500 Factory Service Manual (P/N 99924-1078-08)

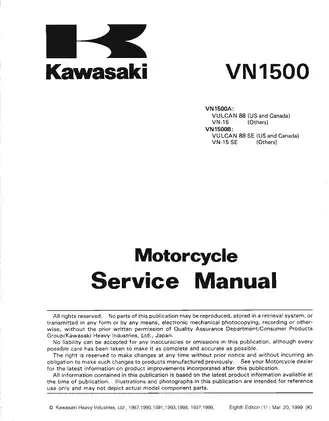

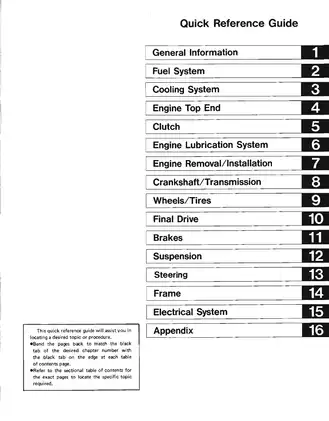

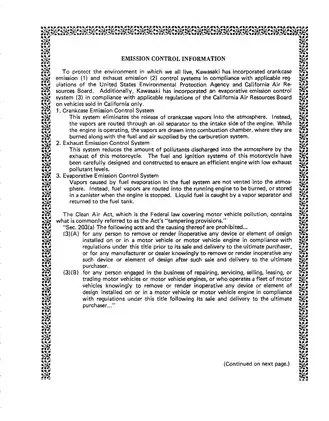

• 722 workshop pages digitized from three original Kawasaki Heavy Industries publications: the 270-page VN1500-A/B base manual, P/N 99924-1078-08 (Eighth Edition, March 20, 1999); the 238-page VN1500-D Classic supplement, P/N 99924-1191-51 (First Edition, February 15, 1996); and the 214-page VN1500-E/F Classic supplement, P/N 99924-1229-56 (Sixth Edition, April 9, 2003).
• Model-application coverage spans 1987–2004 without implying every VN1500 version: 1987–1999 VN1500-A models, 1987–1992 VN1500-B models, the 1996 VN1500-D1, VN1500-E1 through E7, and the regional VN1500-F1/F2 variants. Factory beginning-frame-number tables help confirm the correct publication before repair work begins.
• Engine repair coverage reaches into the top end and crankcase: engine removal and installation, rocker cases and shafts, cam-chain tensioner service, camshaft timing, KACR inspection, hydraulic lash adjuster removal and air bleeding, compression testing, cylinder heads, valves and guides, pistons and rings, crankshaft, balancer, and transmission disassembly.
• Fuel, cooling, and lubrication procedures account for the model changes: dual-carburetor A/B layouts, single-carburetor Classic configurations, synchronization and service fuel-level checks, fuel-pump and filter testing, market-specific hose routing, coolant pressure testing, water-pump mechanical-seal work, thermostat and fan-switch inspection, and engine-oil pressure diagnosis.
• Clutch, gearbox, and shaft-drive sections support major repair work: hydraulic clutch bleeding, master- and slave-cylinder service, deceleration-torque-limiting clutch inspection, internal transmission service, propeller-shaft removal, and front/final bevel-gear setup with bearing preload, backlash, shim selection, and tooth-contact checks.
• Electrical and chassis diagnosis is backed by factory diagrams and test data: regional wiring diagrams, charging and ignition checks, starter and fuel-pump circuits, K-TRIC throttle-responsive ignition, oil-pressure warning controls, automatic turn-signal canceling, brake and caliper service, front-fork work, steering, swingarm, wheels, and tires.

How the Three Publications Fit Together

This is a linked factory manual set, not three interchangeable books. The VN1500-D publication is a supplement to the base VN1500 manual, while the VN1500-E/F publication directs the technician back to the D manual for procedures that did not change. Its later 1999–2001 and 2002–2004 sections document only the revised assemblies and specifications for those builds. Keeping all three PDFs together matters because a Classic-model repair may start in the later supplement and finish in an earlier base procedure.

The archive also contains a separate 12-page 2004 UK cruiser sales brochure. It is not counted in the 722 workshop pages.

Model-Specific Repair Depth

The manuals make the mechanical differences clear instead of treating every Vulcan 1500 as the same motorcycle. Early A/B models use two Keihin CVK carburetors and a four-speed transmission. The D1 Classic changes to a single CVK carburetor while retaining the four-speed gearbox, and the E/F material adds the five-speed transmission, K-TRIC ignition control, and regional KLEEN emissions equipment where fitted.

Valve clearance is automatically maintained by the hydraulic lash adjusters, so there is no routine screw-and-locknut valve adjustment. The repair coverage instead addresses HLA removal, inspection, air bleeding, and installation, along with cam timing, rocker gear, valve-seat work, and cylinder-head service. The clutch chapters go beyond fluid replacement by covering the master cylinder, slave cylinder, clutch pack, spring-plate free-play measurement, hub and housing wear, and the deceleration torque limiter.

Later-model pages document revisions such as rear-caliper overhaul, updated charging and ignition components, the oil-pressure-warning-light delay unit, distance-sensor input for the automatic turn-signal canceling system, and E6-and-later final-drive setup work. These are the kinds of year-specific changes that can send a repair in the wrong direction when only the earliest base book is available.

Diagrams, Specifications, and Kawasaki Tools

Useful visual references include the Coolant Flow Chart, Engine Oil Flow Chart, market-specific VN1500-D1 and VN1500-E1/F1 wiring diagrams, the Oil Pressure Warning System schematic, the Automatic Turn Signal Cancelling System Circuit, and final-drive tooth-contact pattern views. Cable, wire, and hose-routing pages show the correct placement around the carburetors, cooling system, frame, and engine top end.

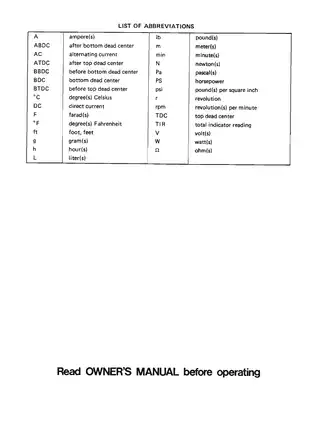

Factory reference data covers component-specific torque tables, approved fluids and capacities, pressure-test specifications, wear and service limits, fit and clearance checks, carburetor adjustment data, and electrical test values. Representative Kawasaki tools identified by number include the Vacuum Gauge 57001-1369, Fuel Level Gauge 57001-1017, Hand Tester 57001-1394, Throttle Sensor Setting Adapter 57001-1400, Pinion Gear Holder 57001-1165, and Final Gear Case Holder 57001-1250.

The manual calls out two repair traps that are easy to miss. The non-return cam-chain tensioner can be damaged, along with the chain, if its mounting bolts are loosened and it is simply tightened again without the specified reset procedure. In the final drive, the ring and pinion are factory-lapped as a matched set; mixing those gears or overlooking the backlash and contact-pattern checks can lead to noise and gear damage.

Engine removal on a heavyweight cruiser, hydraulic brake and clutch work, and cooling-system pressure tests require suitable support equipment and normal shop safety controls. Use the model-specific cautions and procedures in the OEM documentation as the final authority.
