2000–2009 Kawasaki Vulcan 1500 Classic Fi (VN1500) Service Manual P/N P/N 99924-1260-07)

Kawasaki's factory service manual P/N 99924-1260-07 covers the 2000–2009 Vulcan 1500 Classic Fi / VN1500 Classic Fi, including the listed N-series applications and VN1500T6F. It includes US, Canadian, European, Australian, and California-specific information.

• DFI diagnosis: Fault-code reading and clearing, fuel-pressure and injector testing, ECU power-supply checks, ISC-valve inspection, and vehicle-down sensor diagnosis.

• Engine repair: Engine removal and installation, cylinder-head and valve-seat work, camshaft timing, HLA service, KACR inspection, and crankshaft/connecting-rod checks.

• Clutch and transmission: Hydraulic clutch bleeding, clutch-hub disassembly, spring-plate checks, transmission-shaft assembly, and shift-mechanism inspection.

• Shaft drive: Final-gear-case disassembly, pinion-bearing preload, propeller-shaft inspection, and front and rear bevel-gear backlash and tooth-contact adjustment.

• Cooling and emissions: Pressure testing, thermostat checks, water-pump mechanical-seal replacement, and evaporative-emission canister and separator testing.

• Chassis and electrical: Fork disassembly, brake bleeding, steering-stem bearing replacement, charging and ignition tests, and automatic turn signal canceling-system diagnosis.

Written primarily for trained mechanics in a properly equipped shop, the manual also supports owners with basic mechanical knowledge undertaking maintenance and repair. Specialist work requires the specified tools, equipment, and experience.

DFI Fault Isolation and Regional Wiring

The DFI Diagnosis Flow Chart and symptom charts connect starting, idle, and driveability symptoms with circuit and component checks. ECU terminal references and the Needle Adapter Set (57001-1457) support testing at sealed connectors, helping distinguish wiring and power-supply faults from suspect sensors before parts are replaced.

Throttle-sensor limits: The factory-set throttle sensor is nonremovable and nonadjustable. Its diagnostic section provides voltage and resistance checks rather than an adjustment procedure.

The DFI Wiring Diagram accompanies system-specific tests. The Electrical System chapter separates US/Canada wiring for VN1500-N1–N2 and VN1500-N3 onward, with separate Australian and other-market layouts. Turn signal canceling diagnosis includes distance-sensor, switch, and control-unit tests.

Review the integrated fuel-system and electrical safety precautions before testing or disassembly.

Internal Engine and Clutch Service

Cylinder-head work extends to valve-guide clearance, valve-seat repair, piston and ring inspection, and cylinder boring and honing. Hydraulic Lash Adjuster (HLA) service includes air bleeding, while Kawasaki Automatic Compression Release (KACR) coverage distinguishes front and rear assemblies. Valve-timing data and spark-plug gap specifications are also included.

Assembly cautions: The HLA bleeding section warns that excessive check-valve travel can damage the adjuster. Transmission assembly includes the warning that grease on the steel balls can cause the positive neutral finder to malfunction.

Clutch procedures distinguish spring-plate free-play measurement for VN1500-N1–N3 from the gap measurement used on VN1500-N4 and later applications.

Cooling, Lubrication, and Chassis References

The Coolant Flow Chart and Engine Oil Flow Chart show system routing alongside pressure-test procedures and capacity tables. Cooling coverage includes radiator-cap checks; lubrication coverage includes oil-pump service, pressure measurement, and relief-valve inspection.

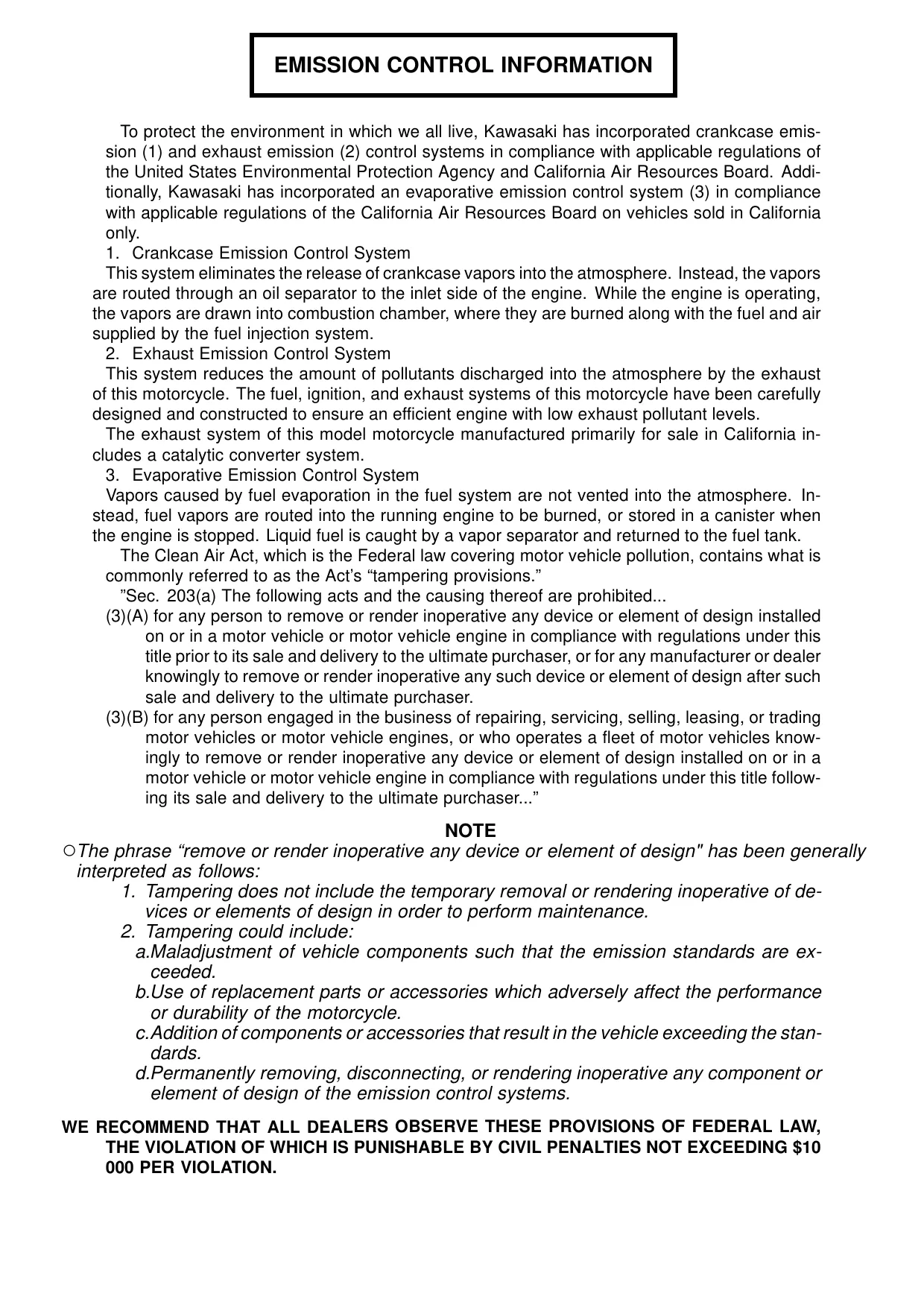

California evaporative-emission checks cover the canister, hoses, and separator. Additional KLEEN theory, maintenance, and handling information is referenced to a separate VN1500 G/H service manual.

Drive and chassis setup: Gearcase procedures include shim selection and tooth-contact evaluation, with separate pinion-bearing preload coverage for VN1500-N4 onward. Brake wear limits, steering-stem work, fork inspection data, and rear-shock settings extend the reference beyond engine repair.

The Periodic Maintenance Chart, torque and locking-agent tables, exploded assembly views, and Cable, Wire, and Hose Routing views support scheduled maintenance and reassembly.

A Preview of Fuel, Cooling, and Gear-Setup Data

These are a few of the service specifications included in the manual. High-pressure fuel-line testing lists 260 kPa (38 psi) at idle with the fuel pump running.

Cooling-system data specifies 2.3 L total with the reserve tank at the full mark, including the radiator and engine. For front bevel-gear setup, backlash measured at the gear tooth is specified as 0.10–0.15 mm.

PDF Text Search and Wiring Detail

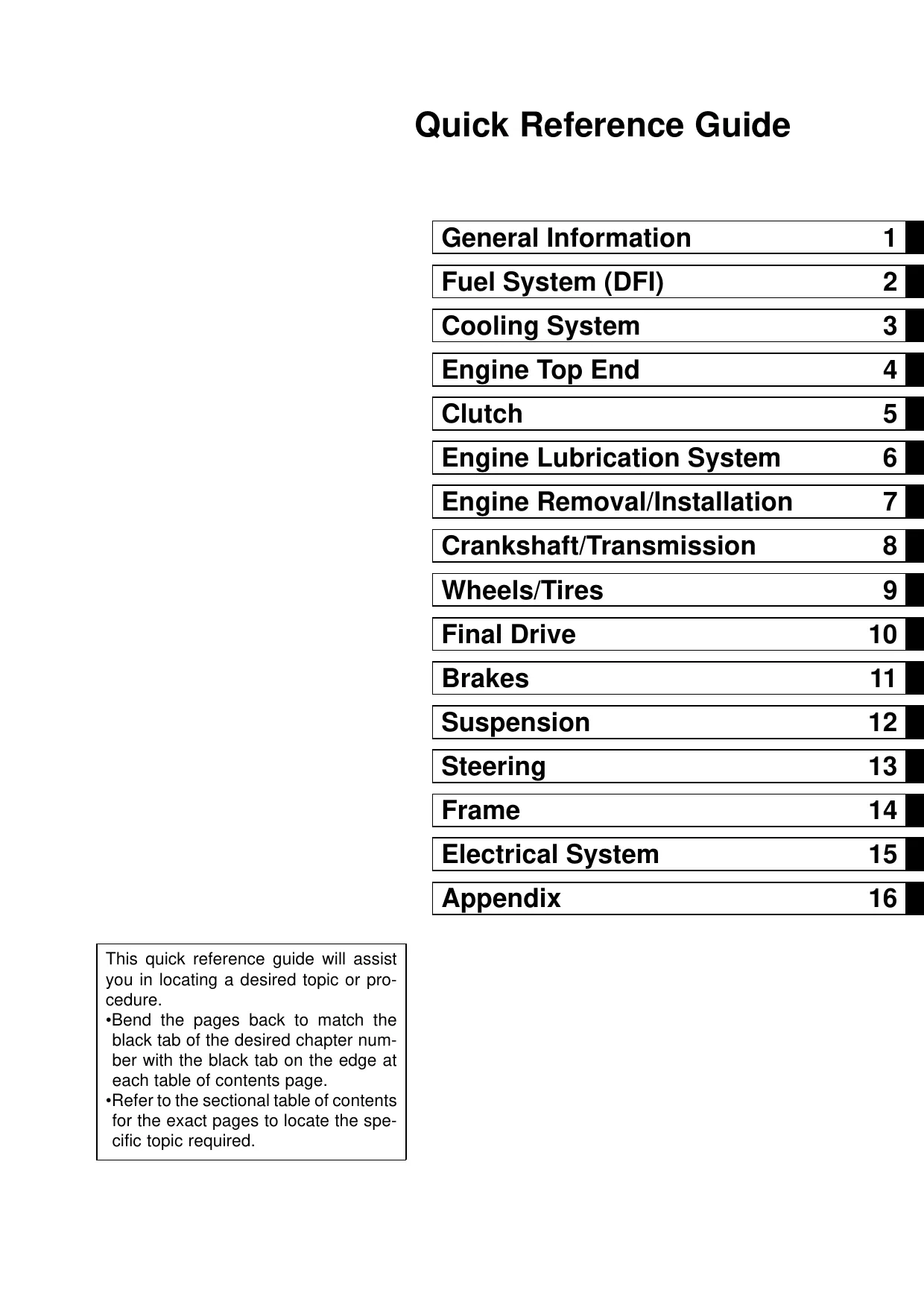

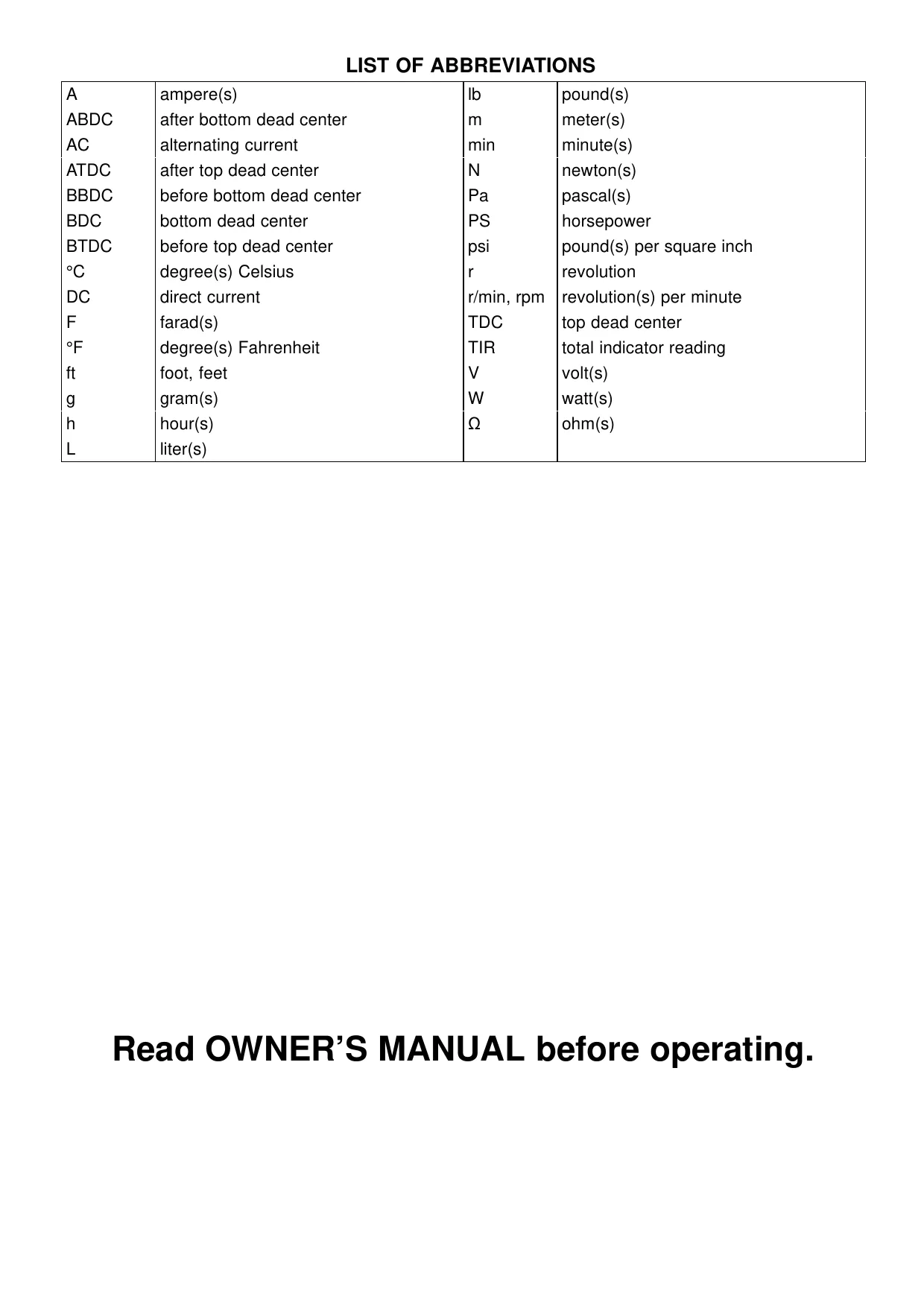

Search and diagram detail: Written procedures have searchable text, and embedded bookmarks link to all 16 chapters and many individual procedures. Small labels in the main wiring diagrams require zooming and are not searchable.

Supplied as one printable, English-language 568-page PDF. The total includes 550 chapter-content pages, one front cover, five preliminary information pages, one model-application/part-number back page, and 11 blank pages.
