1998–2000 Kawasaki Vulcan Nomad / VN1500 Classic Tourer Service Manual (P/N 99924-1241-02)

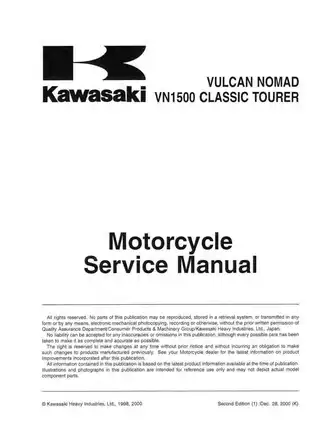

This Kawasaki factory service manual covers the 1998–2000 Vulcan Nomad and VN1500 Classic Tourer. P/N 99924-1241-02, second edition (1), dated December 28, 2000, includes regional specifications, California emissions information, and dedicated VN1500-G3 brake and U.S. wiring material.

Text Search, Chapter Bookmarks and Wiring Detail

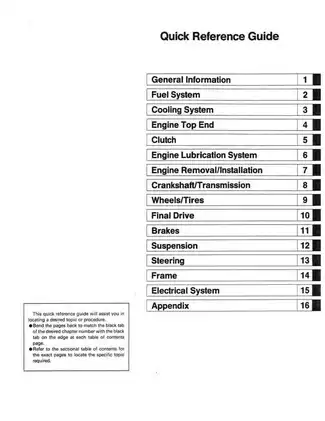

Finding procedures and circuit details: Embedded OCR text supports searches through the main chapters, but small wiring-diagram labels are not reliably searchable. PDF bookmarks open the major chapters. Small wiring labels require magnification, and some remain blurry when enlarged.

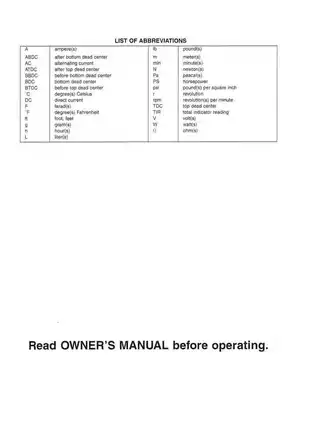

One printable English-language PDF contains 423 pages, including the original front and back covers and six preliminary pages.

Carburetor, V-Twin and Shaft-Drive Service

These selected workshop topics preview the contents rather than reproduce the full table of contents. Other subjects include windshield adjustment and saddlebag removal.

• Fuel system: Keihin CVK40 carburetor removal, disassembly, cleaning, inspection, reassembly, and service fuel-level adjustment, plus fuel-pump and evaporative-emissions checks.

• Cooling system: Step-by-step water-pump mechanical-seal replacement, radiator and thermostat inspection, coolant replacement, pressure testing, and flushing procedures.

• Engine repair: Engine removal and installation, cylinder-head and piston work, camshaft timing, valve-seat repair, and hydraulic lash adjuster removal and air bleeding.

• Clutch and transmission: Hydraulic clutch bleeding, master- and slave-cylinder service, clutch-plate inspection, crankcase separation, crankshaft bearing checks, and transmission disassembly.

• Shaft drive: Propeller-shaft inspection, front and final bevel-gear service, bearing-preload measurement, backlash adjustment, and tooth-contact checks with shim references.

• Brakes and chassis: Caliper and master-cylinder repair, brake bleeding, fork overhaul, rear-shock adjustment, steering-stem service, wheel-bearing replacement, and frame inspection.

• Electrical diagnosis: Ignition and charging tests, starter-motor service, throttle-sensor adjustment, diagnostic flowcharts, and wiring diagrams for the specified regional configurations.

Written primarily for trained mechanics in a properly equipped shop, the manual also supports basic maintenance and repair by owners who understand mechanical work, proper tool use, and workshop procedures.

Maintenance Reference and Regional Fuel Systems

System-based chapters keep adjustment, inspection, and disassembly information together for fast reference on the shop floor. The periodic maintenance chart and component-specific torque and locking-agent tables connect scheduled service work with the relevant inspection and repair information.

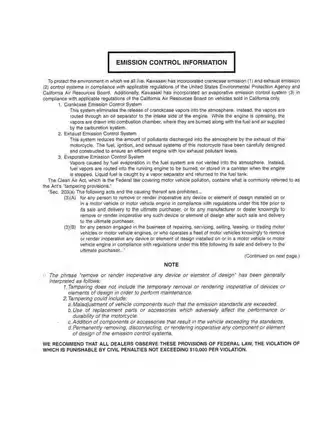

The fuel chapter distinguishes U.S. high-altitude carburetor specifications from the standard settings. California evaporative-emission coverage includes hose and canister inspection, a separator operation test, and the associated routing diagrams.

Separate technical information explains the Kawasaki Low Exhaust Emission system for VN1500H/G1A California configurations, including secondary-air injection and catalytic converters.

Cooling Repairs and Internal Engine Work

The Coolant Flow Chart shows circulation through the engine, radiator, thermostat, and reserve tank. Water-pump instructions distinguish mechanical-seal replacement from deeper shaft, bearing, and oil-seal work requiring crankcase separation, helping you assess the extent of a leak repair before disassembly.

Engine coverage extends to cylinder wear measurements, piston-ring inspection, cylinder boring and honing, and crankshaft bearing-insert selection. Illustrated special-tool references include valve-seat cutters and bearing-removal tools; water-pump bearing work identifies remover shaft 57001-1265 and remover head 57001-1266.

The non-return cam-chain tensioner has removal and reset cautions because incorrect handling can damage the tensioner and chain. HLA bleeding instructions also warn that excessive check-valve depression can damage the adjuster.

Transmission, Bevel Gears and Chassis Details

Exploded views support engine, clutch, and final gear-case assembly. Transmission instructions identify the shift forks and explain the positive neutral finder, while the bevel-gear sections provide shim-selection tables and tooth-contact illustrations.

Chassis procedures distinguish fork service from rear-shock rebound and air-pressure adjustment. Brake coverage includes G3-specific material and model-dependent mounting specifications, alongside disc wear, caliper-seal inspection, and hydraulic bleeding.

Working on heavy motorcycles involves inherent physical and chemical hazards, so always verify you have stable lift equipment and proper shop ventilation before opening fuel lines or exhaust components.

K-TRIC Ignition and Circuit Diagnosis

K-TRIC technical information includes a three-dimensional ignition-timing map relating engine speed and throttle opening. Ignition System Troubleshooting and IC Igniter Troubleshooting flowcharts support fault isolation among wiring, coils, pickup coils, and the igniter.

The electrical chapter also covers regulator/rectifier tests, fuel-pump operation, warning circuits, and automatic turn-signal cancellation. Cable, wire, and hose routing views complement the regional wiring diagrams, including the dedicated U.S. VN1500-G3 diagrams.

A Preview of Carburetor Levels and Coolant Capacity

For the Keihin CVK40, the standard service fuel level is 0–2 mm below the float-bowl mating surface. The float-height reference is 19 ± 2 mm with the float valve needle contacted but unloaded.

Cooling-system specifications list a total coolant amount of 2.3 L, including the radiator and engine with the reserve tank at the full level.
