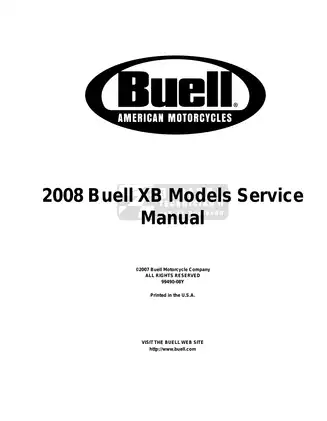

Buell XB9SX, XB12S, XB12Scg, XB12Ss, XB12STT, XB12X, and Firebolt XB12R Service Manual 2008 (P/N 99490-08Y)

• Factory-issued 2008 Buell manual set, ©2007: Service Manual P/N 99490-08Y (688 pages) and Electrical Diagnostics Manual P/N 99493-08Y (288 pages), plus a one-page set index—977 PDF pages total.
• Model coverage: XB9SX, Firebolt XB12R, XB12S, XB12Scg, XB12Ss, XB12STT, and XB12X Ulysses. This edition is limited to those seven models and does not provide explicit XB12XT coverage.
• Engine and fuel-system repair coverage includes compression and cylinder-leakage testing, engine rotation and removal, cylinder-head and valve-train service, piston/cylinder and crankcase work, oil-pump repair, fuel-pump service, intake-leak testing, TPS replacement and zeroing, and California evaporative-emissions procedures.
• Chassis, brake, and suspension procedures cover wheel and bearing replacement, tire removal and balancing, hydraulic brake bleeding, master-cylinder and caliper service, steering-head bearing replacement, swingarm and isolator work, rear-shock removal, and separate front-fork rebuild sections for XB12STT/XB12X and the other covered models.
• Primary drive, clutch, and transmission service addresses clutch disassembly and inspection, primary-chain and belt-drive work, transmission case separation, mainshaft/countershaft and shift-drum teardown, bearing replacement, reassembly, and operational checks.
• Starting, charging, and DDFI diagnostics provide symptom-based fault isolation, trouble-code retrieval and clearing, ECM power checks, fuel-pressure and misfire diagnosis, sensor and actuator tests, starter voltage-drop/current-draw testing, and stator and charging-system checks.
• Factory reference material includes torque tables, fluid specifications, inspection limits, electrical test values, special-tool listings, connector repair instructions, hose and wire routing, system schematics, diagnostic flowcharts, and exploded or section views.

Model-Specific Mechanical Coverage

The mechanical manual separates the 984 cc Thunderstorm XB9SX from the 1203 cc Thunderstorm XB12 models and preserves the differences among Firebolt, Lightning, and Ulysses configurations. Model-specific sections address body and tail assemblies, ignition-switch access, handlebars and controls, headlamp adjustment, rear-shock removal, and suspension hardware. The fork chapter is divided between XB12STT/XB12X and the remaining covered models rather than treating every XB front end as interchangeable. Market-specific material also covers California evaporative-emissions equipment and the active-intake system fitted to Japanese-market motorcycles.

Engine coverage goes well beyond scheduled maintenance. The manual documents oil-pressure and crankcase-breathing diagnosis, in-frame engine rotation for top-end access, complete engine removal and installation, cylinder-head disassembly, rocker-arm bushing and valve-guide work, valve-seat service, piston and cylinder inspection, hydraulic-lifter repair, cam-gear service, and crankcase/flywheel inspection. Fuel-system chapters add ECM and sensor replacement, cooling-fan service, fuel-tank vent and filler components, throttle-body work, exhaust service, and repair of the in-frame fuel-pump assembly.

The chassis and drivetrain chapters support major bench work as well as routine service. They cover front and rear wheel disassembly, rim-runout inspection, brake hydraulic component repair, fork disassembly and assembly, steering-head bearings, swingarm and engine isolators, clutch overhaul, drive-belt and idler-pulley work, internal transmission repair, shift-fork and drum service, main-drive-gear bearings, shifter-shaft service, and transmission-sprocket removal.

Electrical Diagnostics, Schematics, and Shop Data

The separate Electrical Diagnostics manual is organized around starting/charging and DDFI engine-management fault finding. It contains initial diagnostic checks, check-engine-lamp behavior, crank/no-start and start/stall paths, ECM power diagnosis, fuel-pressure and misfire charts, voltage-drop and starter-current tests, and battery/stator checks. DTC procedures cover the major engine-management sensors and actuators, along with the fuel pump, cooling fan, ignition coils, interactive muffler, Japanese active intake, and Ulysses heated-grip circuits.

Named schematic coverage includes Main Harness, Ulysses and Lightning, Main Harness, Firebolt, Engine Management Circuit, All Models, separate Starting Circuit drawings for Firebolt and Ulysses/Lightning, Charging Circuits, All Models, and Heated Handlebar Grips, Ulysses only. Connector-repair chapters add terminal and pin views, sealed-splice procedures, and model-specific harness-routing drawings, giving the electrical section enough detail for circuit testing and harness repair rather than a generic wiring overview.

Representative factory tools identified in the procedures include the B-48115 Breakout Box, HD-39978 DVOM, HD-41182 Fuel Pressure Gauge, HD-45966 Fork Spring Compressor, B-45521 Steering Head Bearing Installation Tool, and HD-46288 Mainshaft Locknut Wrench. The related service data includes component-specific torque indexes, approved-fluid and capacity tables, wear and inspection limits, chassis and suspension specifications, pressure-test data, electrical test values, and conversion tables.

The manuals flag several Buell-specific repair traps. A removed engine should not be laid on its primary side because the clutch-cable end fitting can be damaged badly enough to require cable replacement. The throttle-body stop screw is factory-set and tamper-painted; disturbing it can make throttle-body replacement necessary.

Brake hydraulic work, pressurized fuel testing, fork-spring service, and engine removal require the correct support equipment and safety procedures. Reference only—use a qualified Buell technician when the specified tools, isolation steps, or workshop experience are not available.
