1986-2003 Harley Davidson Sportster XLH883, XLH1100 repair manual
Product Gallery

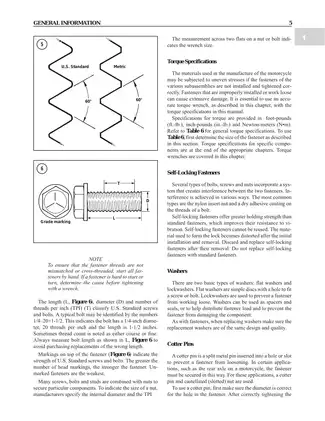

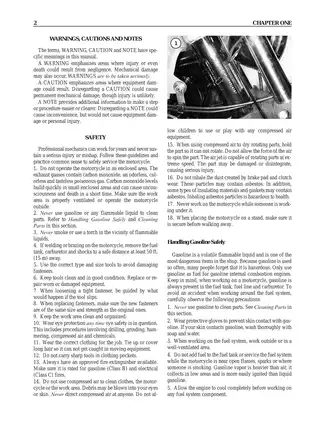

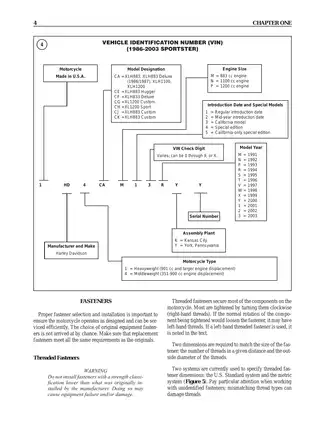

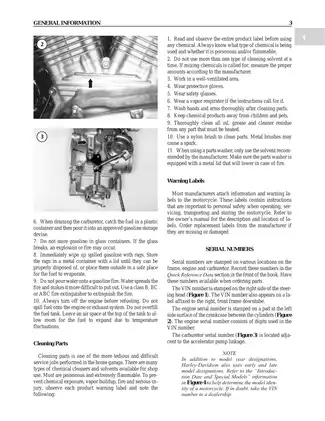

Sample pages from the 1986-2003 Harley Davidson Sportster XLH883, XLH1100 repair manual manual





Purchase Information
1986-2003 Harley Davidson Sportster XLH883, XLH1100 repair manual - Technical Specifications
- File Size:
- 28.31 MB
- File Type:
- ZIP
- Language:
- English
- Printable:
- Yes
- Estimated Download Time:
- 0.58 Minutes
- Delivery Format:
- Digital (PDF) - Instant Access
- Category:
- Bike
- Brand:
- Harley Davidson
Harley Davidson Models and Parts Covered in this Bike Manual
XLH883, XLH1100 Sportster / Harley-Davidson
- Harley Davidson Sportster XLH883
- Harley Davidson Sportster XLH1100
Engine XLH883: 883.0 cc, 53.88 cubic inches, V2, four-stroke, 46.0 HP (33.6 kW) @ 6000 RPM, air cooled, 149.0 km/h (92.6 mph), 9.0:1, 76.2 x 96.8 mm (3.0 x 3.8 inches), 2 valves per cylinder, Overhead Valves (OHV).
Engine XLH1100: 1101.0 cc, (67.18 cubic inches), V2, four-stroke, 50.0 HP (36.5 kW)) @ 5500 RPM, 164.0 km/h (101.9 mph), 9.0:1, 85.1 x 96.8 mm (3.4 x 3.8 inches), air cooled, 2 valves per cylinder, Overhead Valves (OHV)
Production year(s): 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003
Harley Davidson 1986-2003 Harley Davidson Sportster XLH883, XLH1100 repair manual - Complete Manual Information
Table of Contents
- Introduction
- General information
- Troubleshooting
- Lubrication, maintenance and tune-up
- Engine top end
- Engine lower end
- Primary drive, clutch and external shift mechanism
- Transmission and internal shift mechanism
- Fuel, exhaust and emission control systems
- Electrical system
- Wheels, tires and drive belt
- Front suspension and steering
- Rear suspension
- Brakes
- Body
- Wiring diagrams
This 1986-2003 Harley Davidson Sportster XLH883, XLH1100 repair manual is an essential tool for mechanics, technicians, and owners. It provides detailed, step-by-step instructions for maintenance, repair, and troubleshooting of the motorcycle, allowing users to save time and money by performing their own repairs.
