Hyundai H1 Starex H200 Service Manual

The Hyundai H-1 Shop Manual provides factory technical documentation for the van's mechanical, drivetrain, chassis, body, and electrical systems. The set is organized as 19 PDF files totaling 1,246 pages: one contents/foreword file plus 18 service sections from the July 2001 manual. It is arranged by vehicle configuration and factory procedure, helping technicians and experienced owners select the correct section before teardown.

Coverage Overview

• Engine mechanical repair: Covers the 2.4 I4 and 2.5 TCI engines, including engine removal and installation, block and cylinder-head disassembly, piston and crankshaft inspection, oil-pump and cooling-system service, valve work, and timing-belt installation. The 2.5 TCI section also addresses the turbocharger, wastegate, intercooler, and lubrication system.
• Fuel and engine-management diagnosis: Combines gasoline MFI and MELCO EMS troubleshooting with DTC procedures, fuel-pressure and injector checks, and crankcase, evaporative, and exhaust-emission control information. Separate sections cover Covec-F 2.5 electronic diesel diagnosis and mechanical diesel injection-pump, nozzle, and fuel-delivery service.
• Transmission, clutch, and 4WD systems: Documents M5SR1, M5ZR1, and KM135M manual applications together with 30-40LEi, 03-series, and 30-43LE automatic units. Procedures cover removal, internal disassembly, clutch-pack and synchronizer inspection, reassembly, hydraulic-pressure testing, stall and time-lag tests, solenoid checks, clutch-system service, transfer-case repair, and TCCM diagnosis.
• Axles, suspension, and steering: Maps the propeller shaft, front driveshafts, 2WD/4WD hub and axle layouts, differential carrier, suspension hardware, wheel-alignment data, steering column, mechanical power-steering gear, linkages, and pump. Inspection, adjustment, and overhaul procedures are provided for the covered assemblies.
• Brakes, body, and restraint systems: Includes master-cylinder and booster work, front disc and rear drum hardware, LSPV, parking brake, ABS diagnosis and bleeding, exterior and interior body repair, sliding doors, tailgate, sunroof, glass, seats, SRSCM, driver and passenger airbags, clock spring, and airbag disposal procedures.
• Electrical and HVAC service: Provides charging, starting, ignition, diesel preheating, ETACS, immobilizer, back-warning, lighting, gauges, power locks/windows/mirrors, wiper/washer, A/C, heater, blower, and vacuum-control testing. System-specific circuits and connector information are included where supplied in these sections.

Configuration and Service Depth

The General Information section explains VIN and engine-number identification for van and wagon bodies, the semi-bonnet body type, and gasoline and diesel applications. Powertrain tables distinguish A-2.5 TCI, SIRIUS-II 2.4 MPI II, 4D56 TCI, and T2-2.6 configurations. They pair those applications with M5SR1, M5ZR1, KM135M-B, and KM135M-8 manual transmissions or 30-40LEi, 03-II, 03-72LE, and 30-43LE automatic units. The dedicated engine-mechanical volumes are labeled 2.4 I4 and 2.5 TCI, so the van should be matched by its engine and transmission identifiers rather than model year alone.

Automatic-transmission chapters cover the oil pump, valve body, accumulators, planetary sets, one-way clutches, brake and clutch packs, output shaft, and operational testing. Manual-transmission repair addresses the mainshaft, countershaft, gears, bearings, shift shafts, synchronizer hubs and rings, seals, and final inspection. The transfer-case section adds the chain and sprockets, planetary carrier, oil pump, clutch pack, shift cam, motor, and speed sensors.

Diagrams, Specifications, and Special Tools

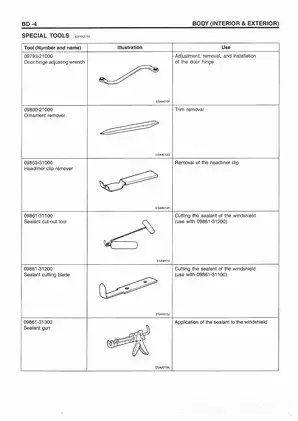

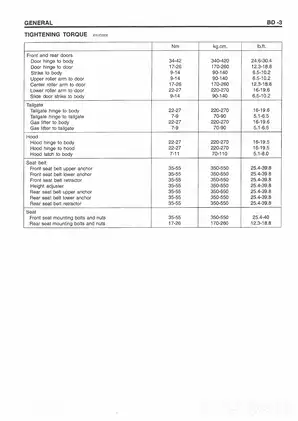

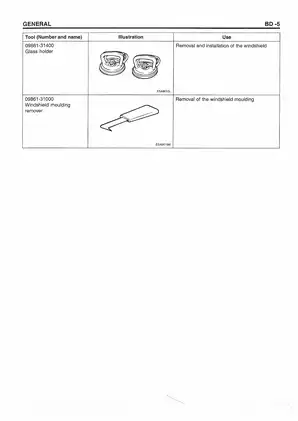

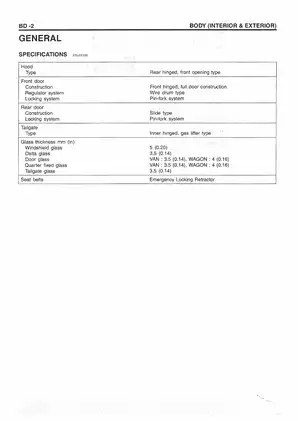

The manual supplies component-specific torque tables, lubricant and fluid specifications, pressure-test data, electrical test values, wear limits, clearances, alignment data, and adjustment specifications. Its tool tables cover engine seals and valve work, transmission bearing and gear removal, spring compression, oil-pressure testing, body-glass work, and trim removal. Examples include cylinder-head bolt socket 09221-32001 and automatic-transmission oil-pressure tools 09452-21000, 09452-21500, 09452-21600, and 09452-32300.

Representative graphics include the 2.4 I4 EOBD emission-control schematic, automatic-transmission system and hydraulic-control diagrams, a transfer-case section view, TCCM circuit diagrams, Covec-F control circuits, and ABS circuits with diagnostic charts. Exploded views and component locators support repair planning across the engine, driveline, brake, body, and electrical sections.

The contents page directs certain electrical groups to a separate Electrical Troubleshooting Manual, Publication No. A4AE-EG17B. That ETM is not included in this PDF set. These files contain system-specific electrical diagnosis, but not the separate vehicle-wide Electrical Troubleshooting Manual.

Repair Notes and Shop Safety

The 2.4 timing chapter warns that reversing the flange on crankshaft sprocket B can lead to belt failure, while excessive cam-sprocket rotation at No. 1 TDC can allow valve-to-piston contact. The transfer-case chapter also calls out driven-sprocket orientation and thrust-washer-to-clutch-pack alignment because an incorrectly seated assembly prevents proper snap-ring installation.

Review the applicable configuration, factory specifications, and routing diagrams before putting the van on a lift. Support the vehicle at the specified points, relieve fuel-system pressure before opening gasoline lines, recover refrigerant with approved equipment, and follow the manual's SRS isolation precautions before restraint-system repair.
