Arctic Cat 2011 450/550/650/700/1000 ATV Service Manual
273 Pages • Printable PDF • 82.01 MB • Download

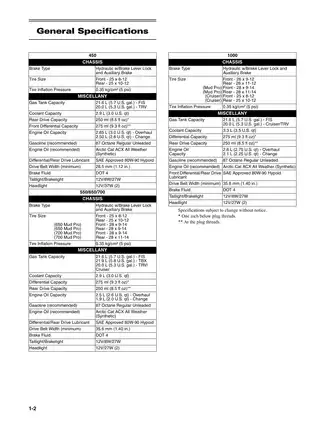

Arctic Cat Models Covered & Key Technical Specifications
Models: 450, 450 TRV, 550 H1, 550 H1 TRV, 650 H1, 650 H1 MudPro, 700 H1, 700 H1 TBX, 700 H1 TRV, 700 H1 Cruiser, 700 H1 MudPro, 1000 H2, 1000 H2 Cruiser, 1000 H2 MudPro
Sub-models / Variants: 2-up (TRV), Cruiser, MudPro, TBX (dump bed), FIS, 1000 H2
Model Year: 2011
-
Engine oil capacity (450 change): 2.50 L
-
Engine oil capacity (550/650/700 change): 1.9 L
-
Engine oil capacity (1000 change): 2.1 L
-
Coolant capacity (450/550/650/700): 2.9 L
-
Coolant capacity (1000): 3.3 L
-
Tire inflation pressure: 0.35 kg/cm² (5 psi)
-
Valve clearance (intake, cold engine): 450: 0.10 mm; 550/650/700/1000: 0.1016 mm
-
Valve clearance (exhaust, cold engine): 450: 0.17 mm; 550/650/700/1000: 0.1524 mm
-
Spark plug gap: 0.7–0.8 mm (0.028–0.032 in.)
-
Engine idle speed (650, engine warm): 1250–1350 RPM
-
Brake fluid type: DOT 4
-
Transmission (450/550/650/700/1000): V-belt CVT with high/low range, neutral, and reverse.
Arctic Cat Manual Features & Selected Content Preview
Arctic Cat’s 2011 service manual covers the 450, 550, 650, 700, and 1000 ATVs, with variant-specific information for TRV, Cruiser, MudPro, and TBX configurations. Engine and transmission procedures are organized into separate 450, 550/650/700, and 1000 groups.
Searchable Text, Bookmarks, and Illustration Detail
Text search and navigation: Searchable PDF text covers the written instructions, and embedded bookmarks link to all nine sections and individual procedures. Connector-pin photos and the carburetor drawing benefit from zooming; some small labels in the PDM fuse-layout images remain pixelated when enlarged.
Supplied as one printable English-language PDF with 273 pages, including the combined opening title/contents page.
Engine, EFI, and Driveline Service
These selected service topics outline the main repair areas. Other documented work includes storage preparation and headlight-aim adjustment.
-
Engine and transmission: Step-by-step procedures for engine removal, cylinder-head and piston service, cam timing, crankcase separation, and internal transmission inspection and assembly.
-
Fuel-system service: Keihin CVK36 carburetor overhaul and electric-choke testing for the 650, plus EFI throttle-body service, fuel-pump checks, and model-specific TPS adjustment.
-
Electrical troubleshooting: Ignition-coil and stator-coil tests, starting and charging diagnosis, ECU fault-code charts, sensor checks, and Electronic Power Steering fault isolation.
-
Cooling and lubrication: Oil-pressure testing, radiator removal, thermostat checks, water-pump replacement, and oil-cooler service for the 700 and 1000.
-
Final-drive repair: Front differential disassembly, shim selection, backlash and ring-gear end-play checks, CV-boot replacement, and rear gear-case service.
-
Brakes, suspension, and steering: Hydraulic caliper overhaul and brake bleeding, shock and A-arm replacement, steering-post service, and toe-out measurement and adjustment.
Suited to experienced ATV mechanics with precision measuring tools and electrical test equipment, the procedures assume workshop knowledge and access to the listed special tools.
Engine Inspection and CVT Repair
Valve, piston, and crankshaft specifications provide the clearances and tolerances needed for mechanical inspections before reassembly. The engine sections identify which jobs can be performed in the frame; servicing the 1000’s rear cylinder head, cylinder, and piston requires engine removal.
Countershaft repair cautions explain how reversed dogs or gears can damage the transmission, while centrifugal-clutch procedures identify the retaining nut’s left-hand thread. Driven pulleys are treated as replacement assemblies, with inspection criteria for worn faces, ramps, and bushings.
Carburetor, EFI, and Sensor Diagnosis
The 650 carburetor specifications distinguish FIS and MudPro jetting. EFI diagnosis includes fuel-pressure checks and tests for MAP, MAP/IAT, coolant-temperature, and tilt sensors.
TPS adjustment differs by model. The 550/700/700 Cruiser/1000 procedure uses a test plug and the LCD indicator; the 450 and 1000 Cruiser/1000 MudPro procedures use a TPS Analyzer Tool with a Multi-Analyzer Harness. These distinctions help match the test connections and adjustment method to the ATV being serviced.
The electrical section explains ECU code retrieval and clearing, including active and stored codes where applicable. The ECU itself is replaced as a complete unit. Reference illustrations include the Carburetor Schematics (650), PDM fuse layouts, TPS connector-pin views, and the ECU Error Code List.
Differential Setup and Rear Drive
Gear-tooth contact illustrations and shim-correction charts support secondary-gear setup alongside the differential backlash and end-play procedures. Pinion-gear or related-bearing service requires a new gear-case/differential housing.
The 700 MudPro and 1000 rear-drive input assemblies receive separate treatment for the shock-limiting clutch pack. Inspection and replacement procedures distinguish this assembly from the other rear-drive arrangements.
Brakes, EPS, and Chassis Work
Steering-post installation is separated into EPS and non-EPS procedures. EPS troubleshooting checks power supply and speed signals before assembly replacement; disassembling the EPS unit can damage it and void its warranty.
Chassis coverage includes TRV seat removal, TBX storage and cargo-box service, and an exploded wheel-and-tire illustration identifying hub, brake-disc, and mounting hardware.
Working on ATVs involves complex mechanical, high-voltage electrical, and pressurized fluid systems. To ensure safe operation and prevent critical vehicle damage, always verify these factory procedures and consult with a certified technician before beginning any heavy mechanical work. Arctic Cat recommends that hydraulic brake service be performed by authorized Arctic Cat ATV dealers.

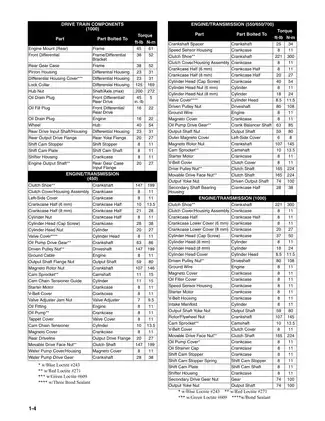

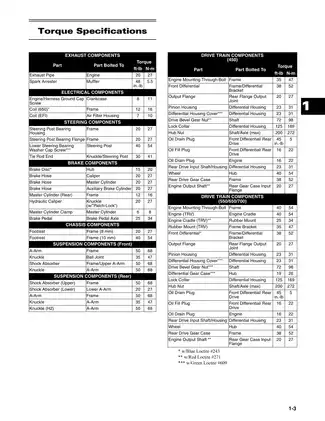

Examples of Lubrication and Sensor Test Specifications
The lubrication references specify 16 ft-lb for the engine oil drain plug and SAE-approved 80W-90 hypoid lubricant for the front differential and rear drive.
For EFI coolant-temperature sensor testing, the electrical section gives approximately 2.45k ohms at 20°C (68°F) and 318 ohms at 80°C (176°F), illustrating the temperature-dependent resistance data provided for diagnosis.
