- Arctic Cat 400 (Year not specified)
- Arctic Cat 500 (Year not specified)
- Arctic Cat 650 H1 (Year not specified)
- Arctic Cat 700 EFI (Year not specified)
Arctic Cat ATV Service Manual (400, 500, 650 H1, 700 EFI Models)
$18.99
(incl. VAT) - Instant Download
File Specifications
- File Size: 127.15 MB
- File Type: PDF
- Language: English
- Printable: Yes
- Estimated Download Time: 2.6 Minutes
verified_user
Lifetime Guarantee
Re-download anytime
flash_on
Instant Download
Get it immediately
lock
Secure Payment
PayPal & Bitcoin
Models Covered in this Manual
Product Information
Arctic Cat ATV Service Manual (400, 500, 650 H1, 700 EFI Models)
Comprehensive Guide for the Maintenance and Repair of Arctic Cat ATVs
This service manual is the definitive guide for owners and technicians servicing Arctic Cat ATVs, specifically the 400, 500, 650 H1, and 700 EFI models. Whether you’re an experienced mechanic or a DIY enthusiast, this manual provides clear, step-by-step instructions to help you maintain and repair your vehicle.
Features:

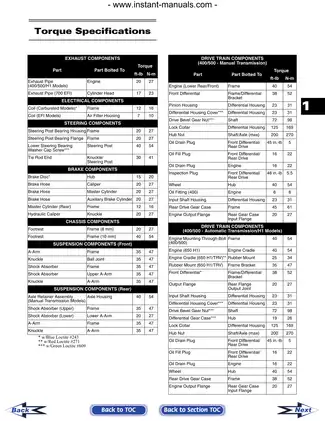

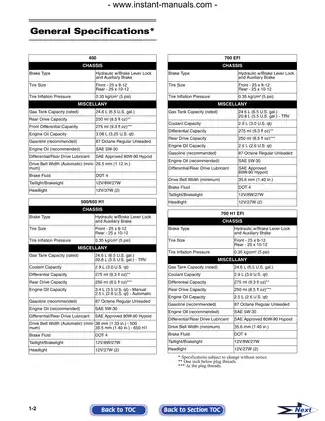

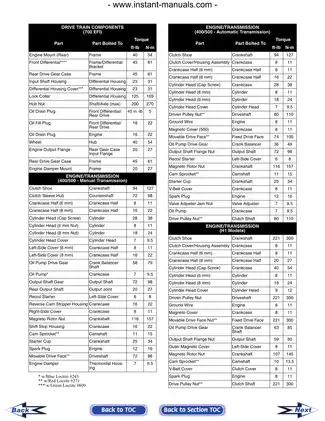

- Detailed Specifications - Each section begins with essential specifications for the models, including valve clearances and torque values.
- Maintenance Guidance - Regularly scheduled maintenance tasks are highlighted, allowing owners to keep their ATVs in top shape.
- Troubleshooting - A comprehensive troubleshooting guide assists in diagnosing and resolving common issues that can arise with these ATVs.
- Service Procedures - Clear instructions on disassembling, inspecting, and reassembling various components of the engine and transmission ensure proper service techniques are followed.
What's Inside:

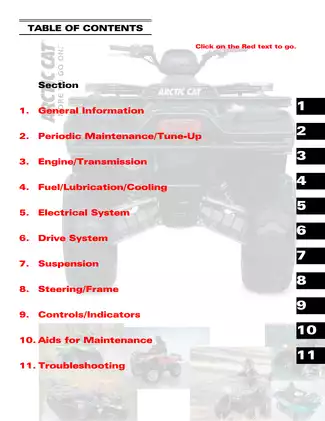

- Table of Contents: Navigate easily with a clear breakdown of sections including:
- Foreword

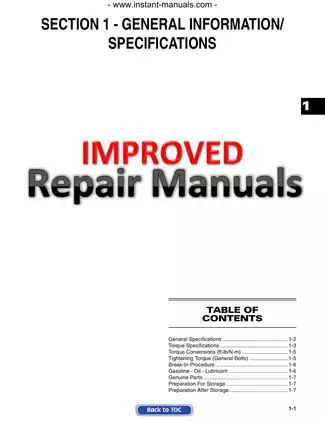

- General Information/Specifications
- Periodic Maintenance Guidelines
- Engine, Transmission, and Fuel Systems
- Electrical Components
- Troubleshooting and Repair Procedures
- Step-by-step Engine Removal and Installation Procedures
Why Choose This Manual?
Equipped with this manual, you will have everything needed to maintain your Arctic Cat ATV and address various repair tasks confidently and efficiently. The manual is designed for optimal ease of use, allowing technicians to easily find the information they seek.
Make sure your Arctic Cat ATV runs smoothly and efficiently with this essential service manual!
How to Download Your Manual - Delivery Policy
Within a minute after completing the payment process, you will receive two emails from us. One for the completed payment and another with the download link. The download link is valid for 3 days.
