Arctic Cat Models Covered & Key Technical Specifications

Models: 400 Automatic, 400 Manual, 500 Automatic, 500 Manual, 650 H1, 650 H1 TBX, 650 H1 TRV, 700 EFI

Sub-models / Variants: 400 TRV, 500 Automatic, 500 Manual, 650 H1 TBX, 650 H1 TRV, 700 EFI

Model Year: 2007


  • Engine: 4-stroke; oil cooler (400), liquid-cooled (500/650 H1/700 EFI)

  • Transmission: Automatic or Manual (model dependent)

  • Drive System: 2WD/4WD; differential lock on equipped models

  • Fuel System: Keihin CVK34/CVK36 carburetors or Electronic Fuel Injection (700 EFI)

  • Tire Size: 25 x 8-12 (front), 25 x 10-12 (rear)

  • Braking System: Hydraulic with auxiliary brake and lever lock

  • Ignition Timing: 10° BTDC @ 1500 RPM (carbureted models)

Arctic Cat Manual Features & Selected Content Preview

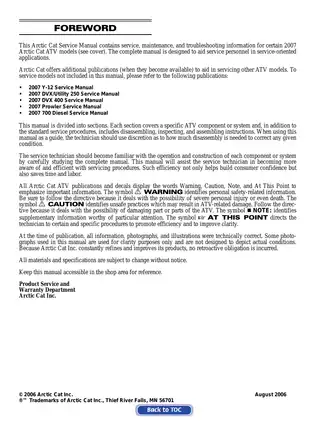

Arctic Cat’s August 2006 factory service manual, P/N 2257-693, covers the 2007 400 and 500 (automatic and manual transmissions), 650 H1, and 700 EFI.

PDF Search, Navigation, and Illustration Detail

Text search and diagram labels: Text search is available across the service sections. There are no embedded PDF bookmarks or active contents-page links. Small labels in the fuse layouts and dense exploded views are best viewed with zoom.

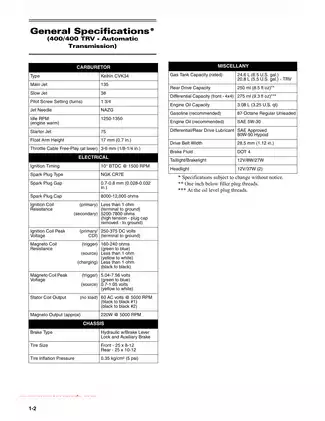

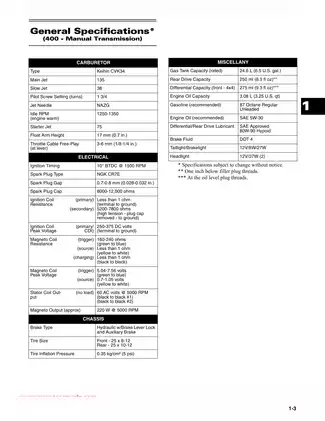

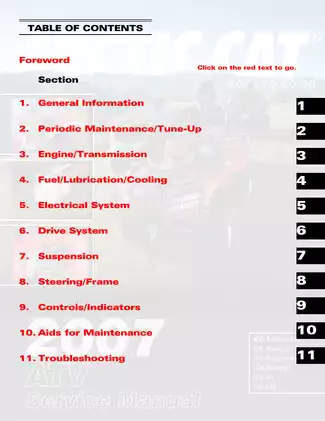

Supplied as one printable 472-page PDF, comprising 470 section pages plus the foreword and contents page, both included in the total.


Engine, Drivetrain, and EFI Service Coverage

The following selected service topics outline the repair coverage. Other included subjects range from spark-arrester cleaning to storage preparation.

  • Engine repair: Step-by-step removal and installation, cylinder-head and piston service, cam timing, and center-crankcase disassembly and reassembly.

  • Transmission service: Manual clutch and geartrain repair, automatic V-belt clutch and driven-pulley service, and one-way clutch inspection.

  • Fuel systems: Carburetor overhaul, fuel-pump testing, and 700 EFI fuel-pressure diagnosis, ECU fault codes, and throttle position sensor testing and adjustment.

  • Final drive: Front differential and rear gear case service, including pinion bearings, axle seals, shim selection, ring-gear backlash, and end-play checks.

  • Chassis service: Hydraulic brake bleeding, pad replacement and burnishing, A-arm and ball-joint replacement, and front-wheel toe-in adjustment.

  • Electrical testing: Ignition and charging checks, starter-motor disassembly, relay testing, and model-specific electrical test specifications.

Written for service personnel, the manual includes work requiring model-specific pullers, measuring equipment, and diagnostic tools.

TRV/TBX Coverage and Model Exclusions

Variant coverage includes the 400 TRV automatic, 650 H1 TBX, and 650 H1 TRV. Differential-lock cable adjustment and switch-testing procedures specifically exclude the 400 TRV. Separate publications cover the Y-12, DVX/Utility 250, DVX 400, Prowler, and 700 Diesel.

In-Frame Repairs, Valve Service, and Internal Inspection

The engine sections distinguish in-frame top-side and side-component service from center-crankcase work requiring engine removal, helping you assess the scope of a repair before dismantling. Internal inspection data includes cylinder-head distortion, connecting-rod clearances, piston-to-cylinder tolerances, and shift-fork wear limits.

Valve adjustment: Screw-adjusted tappets on the carbureted models are treated separately from the 700 EFI’s shim-adjusted tappets. Its Intake Chart and Exhaust Chart support replacement-shim selection. The screw-adjuster procedure identifies the Valve Clearance Adjuster, P/N 0444-078.

Secondary bevel-gear service includes tooth-contact assessment and backlash correction. Driveshaft and countershaft assembly procedures address gear placement, bushings, and retaining hardware.

Carburetion, Lubrication, and Cooling

Keihin CVK34 coverage applies to the 400; CVK36 coverage applies to the 500 and 650 H1. Carburetor inspection addresses the float valve and vacuum diaphragm, supported by Carburetor Schematics (400/500/650 H1). A Throttle Body Assembly (700 EFI) exploded view identifies the injection components.

Lubrication and cooling: Model-specific Oil Flow Charts trace engine and transmission lubrication paths. Oil-pressure testing is included; the oil pump is a replacement assembly rather than a rebuildable component. Oil-cooler service applies to the 400/650 H1. Radiator, thermostat, and water-pump seal procedures cover the liquid-cooled 500/650 H1/700 EFI.

Fluid-capacity data covers coolant, engine oil, and differentials, with SAE 80W-90 hypoid gear lube specified for the final drive. Component-specific torque tables distinguish manual-transmission, automatic-transmission, and 700 EFI applications.

Maintenance Checks and 700 EFI Diagnostics

Periodic maintenance schedules and lubrication points are backed by compression testing, spark plug gaps, and battery charging data. The compression-testing section warns that electrical arcing can severely pit the 700 EFI’s magnesium cylinder-head cover.

EFI fault tracing: The ECU Error Code List identifies sensor, injector, ISC valve, and fuel-pump relay faults. Code retrieval and clearing reference Diagnostic Harness P/N 0486-219; TPS adjustment references Test Plug/Error Code List Kit P/N 0444-216.

The 700 EFI has an idle-speed specification, but idle RPM is not adjustable. Ignition-timing verification applies to the carbureted models. Charging-system diagnosis includes magneto coil resistance, stator output, and regulator/rectifier checks.

Wire-color test points, connector views, and fuse/power-distribution layouts support electrical checks. Full-vehicle wiring diagrams are not included.

Axles, Brake Assemblies, and TBX/TRV Bodywork

Drive-axle service includes CV-joint disassembly and boot replacement. The manual cautions that excess joint grease can damage the boot and lead to joint failure. Hydraulic calipers and the hand-brake master cylinder are replacement assemblies, not internally rebuildable units.

Bodywork procedures address TBX side-storage and cargo-box removal, plus TRV seat arrangements. Problem/condition/remedy tables address starting trouble, clutch slipping or dragging, shifting faults, steering pull, and poor braking.

Working on a raised ATV, spring-loaded components, fuel systems, and brakes carries physical risks; always consult a certified technician before undertaking any mechanical work to ensure your safety and vehicle integrity.

Selected Fuel-Pressure and Valve-Clearance Specifications

The 700 EFI fuel-pump test specifies 43 psi after pressure builds and the pump stops. For the 400/500/650 H1 vacuum pulse pump, the running-engine specification is 2.5–3.5 psi.

For the 700 EFI’s cold-engine valve checks, intake clearance is 0.10–0.20 mm and exhaust clearance is 0.20–0.30 mm. These specifications accompany the shim-selection procedures.
