2001 Arctic Cat 120–1000 cc Snowmobile Triple, Twin, Fan Cooled, Liquid Cooled, Wide Track, Panther, ZL Service Manual Set (P/N 0119-514)

The main volumes divide engine and fuel-system work from chassis and drivetrain repair. The supplement is used alongside Volume I for updated specifications and the engine electrical procedures referenced in the main manual.

Coverage limits: Volume I is missing printed pages 3-18 and 3-21 from the recoil-starter sections. In the supplement, the positions for printed pages 5-12 and 5-13 are blank, and the document ends at the ignition wiring index on 5-62; the ignition diagrams listed from 5-63 onward are not included.

Engine, Drivetrain and Electrical Coverage

• Engine repair: Removal, teardown, component inspection and reassembly for single-cylinder, fan-cooled twin and liquid-cooled twin/triple engines, with assembly schematics and torque references.

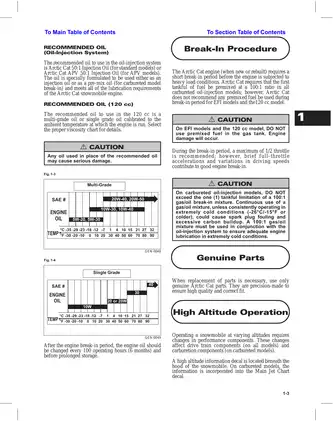

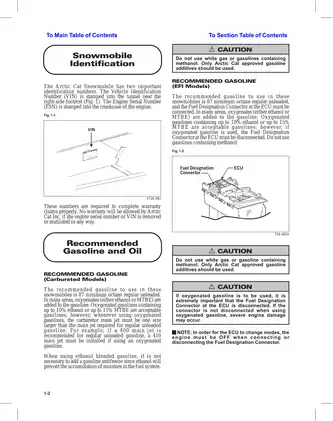

• Fuel and lubrication: Mikuni carburetor rebuilding and synchronization, batteryless EFI component testing, fuel-pump diagnosis, and oil-injection pump adjustment and bleeding.

• Electrical diagnosis: ECU trouble codes, sensor resistance checks, peak-voltage testing, starter-motor service, and main-harness, hood-harness and EFI wiring diagrams.

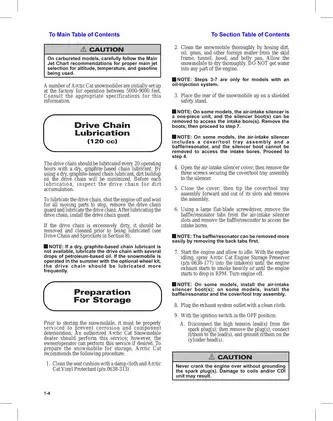

• Clutches and chaincases: Drive-clutch and driven-pulley overhaul, belt deflection and alignment checks, plus chaincase service with and without reverse.

• Brakes and steering: Hydraulic caliper and master-cylinder repair, brake bleeding, mechanical brake adjustment, and AWS III/AWS V steering-post service.

• Track and suspension: FasTrack skid-frame repair, track tension and alignment, spring selection, and IFP, quick-adjust and remote-reservoir shock service.

This set suits snowmobile technicians familiar with engine rebuilding and electrical testing; the EFI and gas-shock procedures also require dedicated diagnostic tools and workshop equipment.

Engine Service and Cooling Systems

Separate engine sections distinguish the valve-train work on the small four-stroke engine from two-stroke piston, cylinder, crankshaft and reed-valve service. Inspection criteria, wear measurements and torque patterns support decisions about which components can be reused during a rebuild.

Water-pump repair is divided between twin, smaller triple and larger triple configurations, supported by cooling-system schematics. Arctic Power Valve service distinguishes flat-style valves on the 500/800 cc twins from round-style valves on the 600 cc engines.

Mikuni Carburetors and Kokusan EFI Diagnosis

The carburetor material covers VM- and TM-style disassembly, jetting references, choke adjustment and synchronization. Oil-injection coverage includes pump synchronization, delivery testing and check-valve testing.

For batteryless EFI, the diagnostic material separates loss of spark from fuel-delivery faults and includes both stored and current sensor-fault checks. That distinction helps narrow a no-start complaint before an ECU or fuel pump is condemned.

APV-equipped EFI models use the Arctic Cat EFI Analyzer P/N 0644-342, with P/N 0644-341 identified as the update kit for an existing analyzer. The supplement explains the KOKUSAN SPECIAL mode and also covers the ZR 500 carbureted model’s Exhaust Controlled Timing system.

On EFI engines with APV, lighting-coil output that is too high or too low can trigger the ECU’s limp-home RPM limit. The electrical references include EFI wiring diagrams and air- and water-temperature voltage/resistance charts for evaluating sensor readings.

Clutch, Brake and Suspension Repair

Drive-train schematics distinguish reverse and non-reverse layouts. The accompanying procedures cover clutch inspection, pulley alignment, chaincase assembly and reverse-linkage adjustment, followed by symptom-based troubleshooting for belt, clutch and hydraulic-brake problems.

The drive-clutch instructions warn that incorrect alignment of the spider and movable-sheave timing marks can unbalance the assembly and damage the clutch and crankshaft.

For rear-suspension work, the servicing chart links each listed model to its skid-frame schematics and repair procedure. FasTrack tension data distinguishes configurations with and without a torque-sensing link.

Shock references include piston-depth charts, valve stacks and Ryde FX usage data. Rebuild procedures address IFP, front-arm quick-adjust and remote-reservoir clicker designs; improper clamping can deform the shock body. Gas-shock work involves stored pressure and requires the manual’s pressure-release precautions and specified charging equipment.

A Preview of Piston-Fit and APV Cable Data

For the 120 cc AA12A1 engine, the piston skirt-to-cylinder clearance range is 0.020–0.120 mm, and the piston-pin diameter range is 14.980–14.995 mm. These are engine-specific component measurements, not limits shared by every model in the set.

The APV cable table specifies 34.1–36.1 mm of exposed cable for the 500 cc twin, measured from the cable housing to the cable end with slack removed. Separate entries distinguish the other APV engine configurations.

Search, Bookmarks and PDF Contents

Finding procedures and reading diagrams: Text search works across most service sections, although the supplement’s OCR contains recognition errors and some EFI diagram lettering is not searchable. Embedded bookmarks provide access to the main sections and supplement. Small wiring labels require zooming.

The set is supplied as one printable, English-language, 718-page PDF. The publication counts above include the combined main title/contents page, the supplement cover and contents page, eight notes pages and three blank pages.
