1994 Arctic Cat Tigershark Montego / Daytona / Barracuda Service Manual (P/N 2255-116)

• Coverage and file makeup: A 178-page PDF consisting of a 148-page 1994 Arctic Cat Tigershark service-manual scan plus a 30-page supplement block of service bulletins and newsletters. The core manual covers the Barracuda, Daytona, Monte Carlo, Montego, and Montego Deluxe, with PJ640-AC powerplants in the first three models and PJ650-AC powerplants in the Montego pair.
• Engine repair: Covers engine removal and installation, complete disassembly and reassembly, cylinder-head and cylinder inspection, piston and crankshaft service, reed valves, outer crankshaft bearings, critical-component measurement, engine shimming, drive-coupler alignment, and sealed-engine pressure testing.
• Fuel and oil-injection work: Details Mikuni carburetor/fuel-pump overhaul and calibration, throttle and choke adjustment, oil-injection pump output and check-valve tests, pump synchronization and bleeding, fuel-tank vent checks, fuel-system and oil-tank pressure tests, and carburetor pop-off testing.
• Jet pump and driveline service: Provides impeller and wear-ring inspection, drive-unit lubricant service, driveshaft/bearing/seal removal and installation, jet-pump housing removal and installation, steering-nozzle work, pressure and vacuum leak checks, and an exploded impeller-drive schematic.
• Electrical and control diagnosis: Supplies resistance specifications and test procedures for the ignition, charging, starter, bilge-pump, trim, and heat-sensor circuits, along with starter-motor overhaul and three model-group wiring diagrams.
• Troubleshooting and shop data: Organizes symptom/remedy charts for engine, electric-start, bilge/jet-pump, speedometer, reverse, trim, and performance faults, backed by special-tool listings, general and component-specific torque tables, and engine torque patterns.

Written for service personnel and suitable as a service-training text, this manual is aimed at technicians who already understand two-stroke engine and marine-drive repair and have access to precision measuring and electrical test equipment. It is not presented as a basic owner-maintenance guide.

Engine and Fuel-System Coverage

The model split matters beyond displacement. PJ640-AC applications use the Mikuni BN 46-42 carburetor, while the PJ650-AC applications use the BN 44-40. Separate charts cover jetting, mixture-screw calibration, needle-and-seat data, pop-off specifications, and high-altitude settings. Once service is complete, the manual carries the work through throttle and choke checks, oil-pump synchronization, system bleeding, and fuel-leak verification.

Engine inspection data covers cylinder-head and cylinder sealing surfaces, cylinder trueness, piston-to-cylinder clearance, ring end gap, piston-pin and connecting-rod measurements, crankshaft end play and runout, fastener torque, and assembly patterns. The repair procedures also flag easy ways to create additional damage: driving out a piston pin with a punch can damage the assembly, while prying between the crankcase halves can mar the sealing surfaces. The crankcase leak-test section warns that overpressurizing the sealed engine can damage its seals.

Jet Pump, Electrical, and Control Systems

The 1994 Montego uses an aluminum impeller and wear ring; the other covered 1994 models use stainless-steel components. The jet-pump chapter identifies the different tooling and assembly details, then follows the repair through bearing, seal, driveshaft, impeller, venturi, nozzle, and housing inspection. Steering coverage adds a two-stage cable-alignment check, steering-post service, reverse adjustment, and trim-indicator, trim-nozzle, and trim-cable procedures. Hull/body pages address fiberglass and gel-coat repair, seats, grab bars, bumpers, and hood hardware.

Named visual references include the Impeller Drive Assembly Schematic, Steering Assembly Schematics, Wiring Diagram - 1994 Barracuda & Daytona, Wiring Diagram - 1994 Montego, Wiring Diagram - 1994 Montego Deluxe & Monte Carlo, and Engine Torque Patterns. The electrical section does more than show circuits: it provides component-level checks for coils, wiring harnesses, CDI, solenoid, switches, regulator, stator, battery charging, starter armature, brushes, and starter pinion.

Factory Bulletins and Workshop References

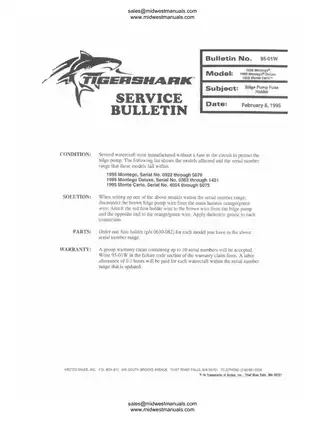

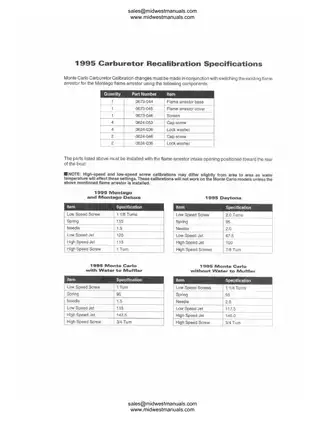

The first 30 PDF pages are supplements rather than additional chapters of the 1994 manual. They cover selected 1994-1997 corrections and campaigns, including 1995 carburetor recalibration and production-break data, Daytona performance and intake-fastener updates, a 1994-1995 exhaust update, engine-to-molded-inlet alignment notes, later brace campaigns with serial ranges, and fuel-filler and bearing-housing work. These pages are application-specific; they are not full service-manual coverage for every 1995-1997 Tigershark.

The special-tool index identifies equipment such as Oil Injection Usage Tool P/N 0644-007, Seal and Bearing Tool Kit P/N 0644-183, Fluke Model 73 Multimeter P/N 0644-191, Drive Coupler Alignment Tool P/N 0644-204, and Jet Pump Removal Tool P/N 0644-218. Fuel-system repair requires a ventilated work area with ignition sources removed, and the manual calls for battery isolation, eye protection, and a completed pressure test whenever fuel components have been opened.
