1995-1996 Arctic Cat Tigershark Montego, Monte Carlo & Daytona Service Manual

Diagnostics, removal sequences, and maintenance for Montego, Monte Carlo, and Daytona models: engine, fuel system, jet pump, electrical, steering, and hull. Part numbers listed.

4.7starstarstarstarstar_half(3)
visibility Preview Available

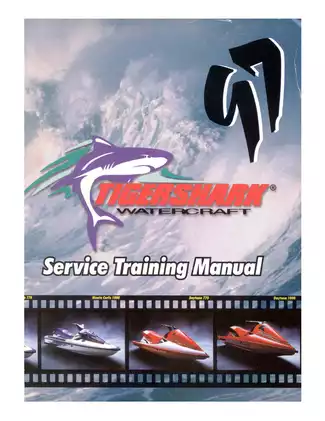

Arctic Cat 1995-1996 Arctic Cat Tigershark Montego, Monte Carlo & Daytona Service Manual manual page preview - page 1 of 461

Sample pages from the 1995-1996 Arctic Cat Tigershark Montego, Monte Carlo & Daytona Service Manual manual

Arctic Cat 1995-1996 Arctic Cat Tigershark Montego, Monte Carlo & Daytona Service Manual manual preview page 1 - thumbnail
Arctic Cat 1995-1996 Arctic Cat Tigershark Montego, Monte Carlo & Daytona Service Manual manual preview page 3 - thumbnail
Arctic Cat 1995-1996 Arctic Cat Tigershark Montego, Monte Carlo & Daytona Service Manual manual preview page 5 - thumbnail
info_outline Click thumbnails to preview different pages
$16.89 (incl. VAT) Original OEM Factory Manuals & Data Instant Download / No Shipping Fees
OR BUY NOW
verified_user
Lifetime Access
Re-download anytime
flash_on
Instant Download
Get it immediately
lock
Secure Payment
PayPal
Technical Safety Notice
keyboard_arrow_down

This official OEM document is intended for professional technicians and skilled operators. Performing service on mechanical equipment involves inherent risks. By purchasing, you acknowledge that RepairLoader provides original manufacturer data for informational purposes. Always prioritize safety: use correct tools, wear protective gear, and consult a certified professional if you are uncertain of any procedure.

Arctic Cat Models Covered & Key Technical Specifications

Models: Arctic Cat Tigershark Montego, Arctic Cat Tigershark Montego Deluxe, Arctic Cat Tigershark Monte Carlo
Sub-models / Variants: 640
Build Years: 1995–1996
Serial Numbers: Montego 0922–5076, Montego Deluxe 0363–1421, Monte Carlo 4054–5075
Technical Data:

  • Engine displacement: 639 cc (39.0 cu in.)
  • Compression ratio: 7.6:1
  • Max RPM (full-open): 6700 ± 200 RPM
  • Engine oil capacity: 50:1 injection oil
  • Idle speed (in water): 1500 RPM
  • Bilge pump fuse: 3 Amp
  • Impeller rotation: Counterclockwise
  • Max cylinder trueness limit: 0.10 mm (0.004 in.)
  • Crankshaft runout (max): 0.05 mm (0.002 in.)
Technical Specifications
keyboard_arrow_down
Document Number / Seller:
29475 / Kevin Johnson
File Size:
72.77 MB
File Type:
PDF
Language:
English
Pages:
461
Printable:
Yes
Category:
Personal-Watercraft-PWC
Last updated / verified
Nov 10, 2025

Arctic Cat Manual Features & Content Preview

Arctic Cat Tigershark 1995–1996 Service Manual Coverage

  • Covers 1995–1996 Arctic Cat Tigershark Montego 640, Montego Deluxe 640, and Monte Carlo 640 PWC models
  • Official OEM publication P/N 2255-287, 1995–1996 edition
  • Includes 461 pages of factory-level service specifications and maintenance data
  • Accessible from your device as soon as the order is placed
  • OCR text layer lets you jump to a torque spec by keyword
  • Suitable for printing individual sections for shop-floor use
  • Features 125+ exploded-view assembly diagrams and complete fuel system calibration tables
  • Reference only — always consult a certified technician before performing service on this equipment

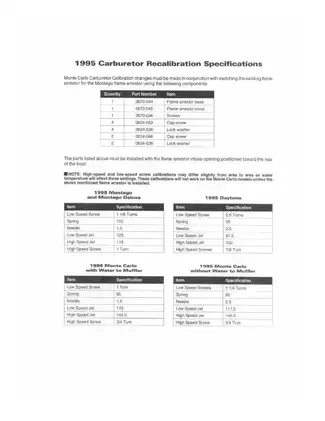

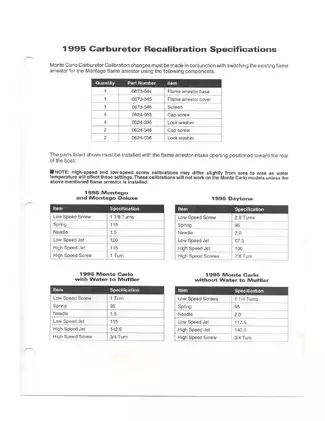

  • This 1996 edition includes the latest carburetor recalibration specifications and updated service bulletins for the 640 engine series

Engine and Drivetrain Documentation

The 1995–1996 Arctic Cat Tigershark service manual provides detailed technical breakdown for the 640 cc two-cylinder engine. Chapters address engine removal, disassembly, and reassembly, alongside critical component tolerances like piston-to-cylinder clearance (0.113–0.127 mm) and crankshaft runout limits. The manual documents jet pump maintenance, including bearing and driveshaft replacement procedures and wear ring clearance standards, providing a professional reference for major powertrain service.

Fuel and Electrical Specifications

Fuel system documentation covers the Mikuni BN 44-40 carburetor setup, listing low-speed jet, high-speed jet, and needle valve settings for both Montego and Monte Carlo configurations. Electrical system details include reference values for the CDI ignition, lighting coil output (12V/105W), and starter solenoid diagnostics. The manual provides essential capacity data, such as 43.6 liters (11.5 U.S. gal) for the fuel tank and 4.7 liters (5.0 U.S. qt) for the oil injection reservoir. An official 461-page Arctic Cat OEM service manual covering the 1995–1996 Tigershark Montego, Montego Deluxe, and Monte Carlo 640, documenting engine, chassis, electrical, and fuel system specifications for the PJ640-AC engine build.

Manual FAQ, Purchase & Download Details

What kind of carburetor specification tables and altitude adjustment data are included in this service manual? keyboard_arrow_down

Document contains detailed specification tables that list settings for various altitude ranges to assist with carburetor configuration. It provides reference data for different models including the Daytona, Barracuda, and Monte Carlo variants.

Is there documentation for the various TigerShark personal watercraft models covered in this 1995-1996 service training suite? keyboard_arrow_down

Manual covers service information for the Montego, Montego Deluxe, Monte Carlo, and Daytona watercraft models.

Are there technical reference sections for tightening specifications and part component lists? keyboard_arrow_down

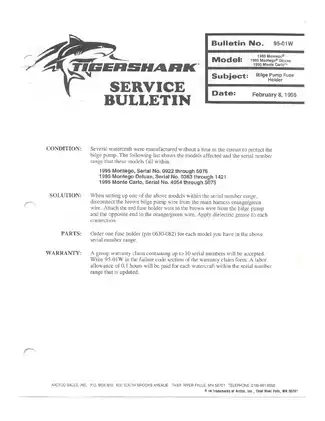

Manual includes technical sections that list tightening specifications for various hardware and components across the watercraft. These areas also provide part number references and exploded view diagrams to help locate specific assembly items. Detailed service bulletins are included as well to highlight specific update kits and component revisions.

Which engine and electrical system components have referenced values and configuration data? keyboard_arrow_down

Manual provides reference data for electrical systems, including bilge pump current draw, tachometer wiring, and various fuel system component specifications.

Can I find lookup charts for part numbers and component identifiers within this PDF? keyboard_arrow_down

Document contains multiple reference charts that list part numbers for components such as jet pump oil, fuse holders, and specialized kits. These lookup sections also include warranty-related failure codes for administrative reference.
