Arctic Cat Tigershark 1997 PWC Service Manual Set with Setup (P/N 2255-664)
265 Pages • Printable PDF • 52.46 MB • Download
Arctic Cat Models Covered & Key Technical Specifications
Models: Tigershark 1997, Montego, Montego DLX, Monte Carlo 640, Monte Carlo 770, Monte Carlo 1000, Daytona 770, Daytona 1000
Sub-models / Variants: 640 cc, 2-cylinder (Suzuki PJ640-AC: Montego, Montego DLX, Monte Carlo 640); 770 cc, 2-cylinder (Suzuki PJ770: Monte Carlo 770, Daytona 770); 1000 cc, 3-cylinder (Suzuki PJ1000-AC: Monte Carlo 1000, Daytona 1000)
Model Year: 1997
Supplemental bulletin serial ranges: 1996 Monte Carlo 900: ARJ05922B696 - ARJ06072B696 (Bulletin 96-02W, trim mounting clamp); 1996 Montego: ARJ00016J596 - ARJ00317K596 (Bulletin 96-04W, exhaust outlet). These ranges apply only to the respective supplemental bulletins.
-
Engine displacement: 639 cc, 768 cc, 999 cc
-
Number of cylinders: 2 or 3
-
Peak engine output: 62 HP (640 cc), 90 HP (770 cc), 115 HP (1000 cc)
-
Compression ratio: 6.8:1 to 7.6:1
-
Idle speed: 1200–1500 RPM (in water)
-
Fuel system: Mikuni BN38 or BN40 carburetors
-
Fuel type: 87 Octane minimum
-
Cooling system: Water-cooled
-
Drive system: Jet pump with stainless steel impeller
Arctic Cat Manual Features & Selected Content Preview
| Publication | Pages |
|---|---|

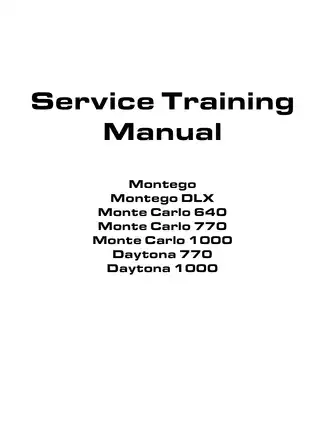

| 1997 Service Training Manual — Montego, Montego DLX, Monte Carlo 640/770/1000, and Daytona 770/1000; includes dealer information and supplemental bulletins/newsletters | 245 |
| 1997 Tigershark Setup and Predelivery Instructions — P/N 2255-664, including the section contents page | 8 |
| 1997 Tigershark Special Tool Catalog — P/N 2255-672 | 12 |
The training manual covers workshop service, the predelivery instructions address preparation and final checks, and the tool catalog identifies equipment by part number and function. Earlier-year engine, carburetion, and impeller tables and the 1995–1996 bulletins supplement the main repair coverage for the seven 1997 models.
The setup instructions require the separate Operator’s Manual for operating and test-riding guidance; it is not included here. For steering that binds or lacks full travel, the training text refers to the appropriate model’s 1997 Service Manual.
PDF Search, Bookmarks, and Wiring Detail
Search and diagram detail: OCR text supports searches across the service sections, with recognition errors and limited searchable wiring-label text. Embedded bookmarks link the main chapters and many procedures. Small wiring codes require zooming, and some fine lettering remains faint.

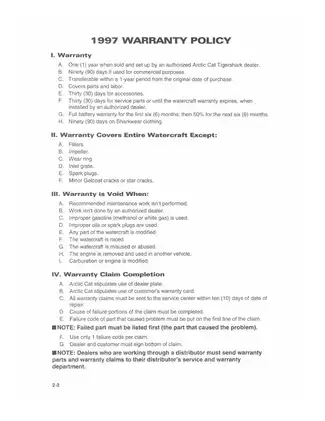

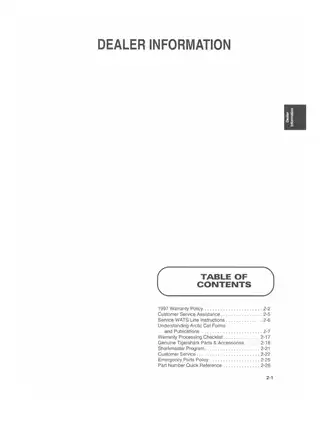

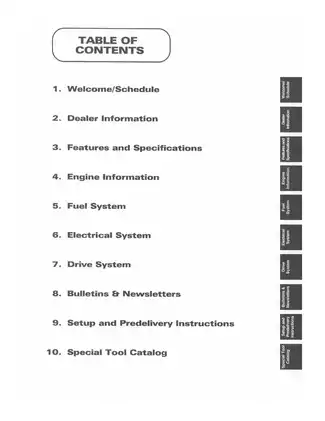

One printable 265-page PDF contains all three publications. The training-manual portion includes 26 pages of dealer information and nine pages of bulletins/newsletters. Covers, contents pages, and section dividers are included in the listed totals.
Engine, Fuel, Electrical, and Jet-Pump Service
The following selected service topics show the repair scope rather than reproduce the full contents list. Other covered work includes fuel- and oil-filter replacement and fuel-tank removal and installation.
-
Engine repair: Step-by-step removal, disassembly, inspection, assembly, and installation, with crankshaft-bearing service, reed-valve inspection, crankcase pressure testing, and winterization.
-
Fuel and oil injection: Mikuni carburetor teardown and assembly, accelerator-pump service, throttle and choke synchronization, oil-pump testing, synchronization, and bleeding.
-
Electrical diagnosis: Model-specific resistance tables, starter-circuit fault tracing, charging-system tests, control-switch checks, starter-motor repair, and wiring diagrams.
-
Jet-pump and drive repair: Pump disassembly, bearing and driveshaft inspection, impeller/wear-ring checks, engine-to-pump alignment, and reverse-deflector service.
-
Setup and predelivery: Battery service, handlebar-pad installation, cable and carburetor adjustment, oil-injection setup, bilge-pump and hose checks, final inspection, and test riding.
The dealer-training format assumes measuring tools, pullers, pressure-test equipment, alignment fixtures, and electrical test instruments. It is therefore suited to dealership technicians, independent PWC mechanics, and experienced owners who already have the shop equipment and background required for internal engine and jet-pump work.
Engine Inspection and Assembly
Arctic Cat separates the two-cylinder 640/770 procedures from the three-cylinder 1000 repair work. The Suzuki PJ640-AC, PJ770, and PJ1000-AC reference data include piston-to-cylinder and ring clearances, cylinder trueness, piston-pin and bore dimensions, connecting-rod play, crankshaft runout and end play, reed-stopper measurements, and component torque specifications.
Numbered service figures show measuring points, tool placement, and assembly orientation. The 1000 assembly material warns that incorrect cylinder-base-gasket orientation can obstruct the intended coolant path and damage the engine. Incorrect crankshaft-seal positioning can block an oil-delivery hole and cause premature bearing failure.
Carburetion and Lubrication Diagnosis
The 1997 Carburetion Specifications table distinguishes single-carburetor 640, twin-carburetor 770, and triple-carburetor 1000 arrangements. Accelerator-pump coverage applies to the Monte Carlo 1000 and both Daytona models; jetting and adjustment data remain model-specific.
Throttle synchronization includes bench, mechanical, and running-vacuum methods. Fuel-pump testing, oil-pump delivery and check-valve tests, reservoir and fuel-system pressure tests, and carburetor pop-off checks provide ways to investigate delivery and leakage problems beyond mixture adjustment.
Fuel-system service involves gasoline vapor, battery isolation, and mandatory leak checks after components are opened. Follow the manual’s ventilation, pressure-test, and protective-equipment warnings before beginning that work.
Electrical Fault Tracing
Separate electrical sections cover the 640/770 and 1000 systems. Tests address ignition coils, CDI-related circuits, stator and trigger coils, regulators, charging output, solenoids, tether and control switches, bilge pumps, load relays, trim motors, temperature sensors, and gauges.
The starter-circuit checks help distinguish battery, switch, wiring, solenoid, and starter faults before component replacement. Starter-motor disassembly, brush and armature inspection, assembly, and starter-pinion replacement are covered; the trim motor is treated as a complete replacement unit rather than an internally repairable component.
Wiring diagrams cover Monte Carlo 640/770, Montego/Montego DLX, Daytona 770, and the 1000 cc systems, with model-specific resistance tables alongside the diagnostic procedures.
Drive Alignment and Workshop Tools
Drive coverage extends to ride plates, inlet grates, the Monte Carlo 640/770 adjustable steering nozzle, and reverse-deflector pivots, bushings, and assembly. The Tigershark Impeller Chart provides model-specific reference data. Hull, gelcoat, and upholstery repair are outside the repair chapters.
Engine and electrical work identifies the Piston Pin Puller (P/N 0144-003), Flywheel Puller (P/N 0144-310), and Fluke Model 73 Multimeter (P/N 0644-191).
Fuel and drive references include the Pressure Testing Kit (P/N 0644-199), Jet Pump Removal Tool (P/N 0644-218), Carburetor Synchronizer (P/N 0644-069), and Pop-Off Tester Pump (P/N 0644-255). The catalog explains their functions so equipment needs can be checked before work begins.
Selected Piston-Clearance and Carburetor Test Values
The critical-component checks specify piston-skirt/cylinder clearance ranges of 0.120–0.160 mm for the 640 engine and 0.095–0.135 mm for the 770 engine, using the measurement locations described in the manual.
For carburetor pop-off testing with the needle and seat moistened, the chart lists 16 psi for the Monte Carlo 770 and 29 psi for the Daytona 770. These are model-specific test values, rather than one setting for every 770 installation.
