Arctic Cat Snowmobile Service Manual (Firecat, Mountain Cat, Pantera, Panther, Z, ZL, ZR, 120cc to 900cc Models) 2003
Product Gallery

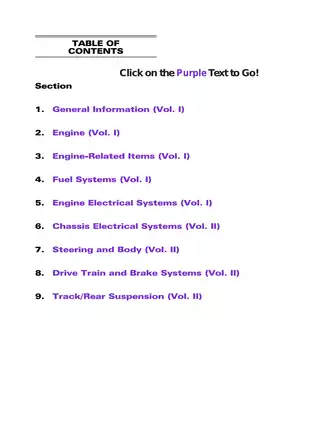

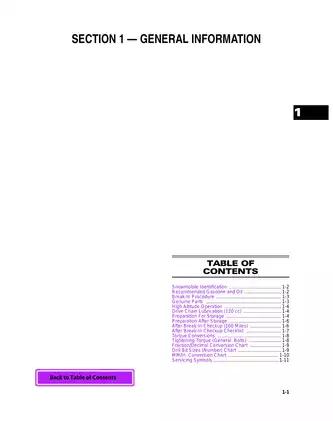

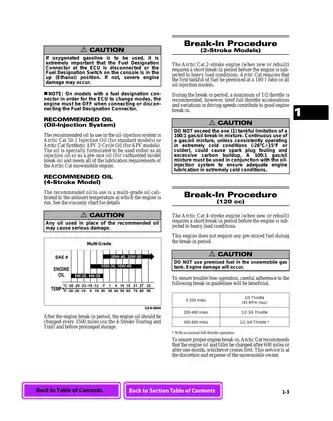

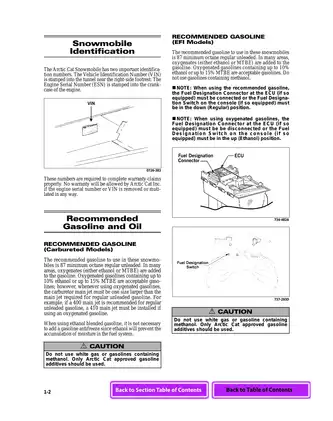

Sample pages from the Arctic Cat Snowmobile Service Manual (Firecat, Mountain Cat, Pantera, Panther, Z, ZL, ZR, 120cc to 900cc Models) 2003 manual
Purchase Information
2003 Arctic Cat Snowmobile Service Manual: Firecat, Z, ZR, ZL, Pantera - Technical Specifications
- Document Number / Seller:
- 26872 / Steven Anderson
- File Size:
- 146.79 MB
- File Type:
- Language:
- English
- Pages:
- 745
- Printable:
- Yes
- Estimated Download Time:
- 3.01 Minutes
- Delivery Format:
- Digital (PDF) - Instant Access
- Category:
- Snowmobile
- Brand:
- Arctic Cat
- Reviewed and Approved:
- Dec 31, 2025
Arctic Cat Models and Parts Covered in this Snowmobile Manual
- Arctic Cat Firecat 500 (2003)
- Arctic Cat Firecat 700 (2003)
- Arctic Cat Z 120 (2003)
- Arctic Cat Z 370 (2003)
- Arctic Cat Z 440 (2003)
- Arctic Cat ZL 440 (2003)
- Arctic Cat ZL 550 (2003)
- Arctic Cat ZL 600 (2003)
- Arctic Cat ZL 800 (2003)
- Arctic Cat ZR 440 (2003)
- Arctic Cat ZR 500 (2003)
- Arctic Cat ZR 600 (2003)
- Arctic Cat ZR 800 (2003)
- Arctic Cat ZR 900 (2003)
- Arctic Cat Mountain Cat 500 (2003)
- Arctic Cat Mountain Cat 600 (2003)
- Arctic Cat Mountain Cat 800 (2003)
- Arctic Cat Mountain Cat 900 (2003)
- Arctic Cat Pantera 550 (2003)
- Arctic Cat Pantera 600 (2003)
- Arctic Cat Pantera 800 (2003)
- Arctic Cat Panther 370 (2003)
- Arctic Cat Panther 440 (2003)
- Arctic Cat Panther 550 (2003)
Complete Manual Information
Arctic Cat 2003 Snowmobile Service Manual - 2003 Edition
This professional-grade service manual provides the factory-sanctioned technical framework required to maintain, troubleshoot, and overhaul the 2003 Arctic Cat snowmobile fleet. By utilizing a dry, graphite-based chain lubricant every 20 operating hours on 120 cc models, operators can effectively minimize dirt buildup and internal friction, directly contributing to maximum drivetrain uptime. This documentation serves as the primary technical authority for precision service, ensuring all units remain within factory-defined operational parameters.
Technical Applicability & Fleet Configuration
F-Chassis Performance Models
- Firecat 500 / Firecat 700 EFI (500cc/700cc variants)
- Equipped with AWS VI front suspension and specialized high-output engine configurations.
Mountain & Deep Snow Architecture
- Mountain Cat 500 / 600 EFI / 800 EFI / 900 (Including 1M configurations)
- Factory-calibrated for high-altitude performance (6,000–9,000 ft) with specific clutching and carburetion.
Touring & Utility Platforms
- Pantera 550 / 600 EFI / 800 EFI (AWS V chassis with reverse gear and 2-up seating)
- Panther 370 / 570 ESR (Utility focus with electric start and reverse)
Trail & Performance Series
- ZR 120 / 800 EFI / 900 (Including Sno Pro variants)
- ZL 550 / 600 EFI / 800 EFI (Including ESR and SS suspension packages)
- Z 370 / 440 / 570 (Standard fan-cooled trail configurations)
Operational Advantages & Service ROI
- Precision Calibration: Facilitates exact engine synchronization and fuel system adjustments to prevent lean-run conditions and cold seizure.
- Safety Assurance: Detailed procedures for the Throttle/Ignition Monitor Switch (T.I.M.S.) and braking system verification ensure operator security.
- Longevity Optimization: Step-by-step break-in protocols and storage preparation prevent premature component fatigue and seasonal corrosion.
Document Metadata
- Publication Format: High-Resolution PDF (Two-Volume Set)
- Print Coverage: Detailed technical sections (03-20-20 Sectional Index)
- Applicability: 2003 Production Year Models
Technical Depth & Factory Benchmarks
The 2003 fleet utilizes diverse cooling and fuel delivery architectures. Service technicians must adhere to specific piston skirt-to-cylinder clearance ranges, such as the 0.075–0.105 mm specification for 700cc/800cc/900cc engines, to ensure thermal stability. Digital 3-D Ignition systems on high-output models (500cc–900cc) manage up to twelve distinct timing curves based on throttle position and RPM, requiring exact Throttle Position Sensor (TPS) calibration for optimal power mapping.
Visual Navigation Aids
- Chassis Diagrams: Detailed AWS V and AWS VI suspension exploded views.
- Electrical Schematics: Model-specific wiring diagrams (Harnesses A through Z).
- Drive Train Layouts: Reverse and non-reverse chain case internal architecture.
- Fuel System Plots: VM-style, TM-style, and EFI throttle body schematics.
Table of Contents
- Section 1: General Information (Identification, Fluids, Break-In, Torque)
- Section 2: Engine (Disassembly, Servicing, Specifications, Troubleshooting)
- Section 3: Engine-Related Items (Cooling, Recoil, APV Systems)
- Section 4: Fuel Systems (Carbureted, EFI, Air Silencer)
- Section 5: Engine Electrical Systems (Ignition, CDIs, Stators)
- Section 6: Chassis Electrical Systems (Wiring, Lighting, Gauges)
- Section 7: Steering and Body (Ski Alignment, Spindles, Chassis)
- Section 8: Drive Train and Brake Systems (Clutching, Braking, Drive Belts)
- Section 9: Track/Rear Suspension (Skid Frame, Shocks, Troubleshooting)
Operational Limits & Specifications
| Component | Specification | Lubricant / Sealant |
|---|---|---|
| Drive Clutch Bolt | 50–55 ft-lb (6.9–7.6 kg-m) | Clean Taper (Dry) |
| Cylinder Head (500-900cc) | Refer to Pattern (Sec 2) | O-Ring (Multi-use) |
| Spark Plug Gap | 0.7–0.8 mm (0.028–0.031 in.) | NGK BPR6ES / BR9EYA |
| AWS VI Spindle Arm | 35 ft-lb (4.8 kg-m) | Loctite #609 (Green) |
| Fuel System Pressure | 48 ± 2.2 psi (700/800cc EFI) | N/A |
| Drive Chain (120cc) | 15–16.5 ft-lb (Clutch Bolt) | Graphite-based Dry Lube |
| Fuel Requirement | 87 Minimum Octane | Regular Unleaded |
Maintenance Criticality: When reassembling engine cases, Three Bond Sealant (p/n 0636-070) or High-Temp Sealant must be applied to the sealing surfaces to prevent vacuum leaks that lead to catastrophic engine failure.
Download Instructions for Arctic Cat Snowmobile Manual
Frequently Asked Questions - Arctic Cat Snowmobile Manual
What does this Arctic Cat manual cover?
This comprehensive service manual covers detailed repair procedures, maintenance schedules, troubleshooting guides, and technical specifications for Arctic Cat Snowmobile Service Manual (Firecat, Mountain Cat, Pantera, Panther, Z, ZL, ZR, 120cc to 900cc Models) 2003. It includes information for the following models: - Arctic Cat Firecat 500 (2003) - Arctic Cat Firecat 700 (2003) - Arctic Cat Z 120 (2003) - Arctic Cat Z 370 (2003) - Arctic Cat Z 440 (2003) - Arctic Cat ZL 440 (2003) - Arctic Cat ZL 550 (2003) - Arctic Cat ZL 600 (2003) - Arctic Cat ZL 800 (2003) - Arctic Cat ZR 440 (2003) - Arctic Cat ZR 500 (2003) - Arctic Cat ZR 600 (2003) - Arctic Cat ZR 800 (2003) - Arctic Cat ZR 900 (2003) - Arctic Cat Mountain Cat 500 (2003) - Arctic Cat Mountain Cat 600 (2003) - Arctic Cat Mountain Cat 800 (2003) - Arctic Cat Mountain Cat 900 (2003) - Arctic Cat Pantera 550 (2003) - Arctic Cat Pantera 600 (2003) - Arctic Cat Pantera 800 (2003) - Arctic Cat Panther 370 (2003) - Arctic Cat Panther 440 (2003) - Arctic Cat Panther 550 (2003).
Is this manual suitable for beginners?
Yes, this Arctic Cat manual is designed for both professional technicians and DIY enthusiasts. It includes step-by-step procedures with clear illustrations and safety guidelines for Snowmobile maintenance and repair.
What file format will I receive?
You will receive this manual as a PDF file (146.79 MB), which is compatible with all devices. The manual is fully searchable and printable for your convenience.
How quickly can I access the manual after purchase?
You'll receive instant access to your Arctic Cat Snowmobile manual immediately after payment completion. The download link is valid for 3 days, with lifetime re-download guarantee.
Can I print specific sections of the manual?
Absolutely! This digital manual allows you to print any section you need, from individual pages to complete chapters, making it perfect for workshop use.
