Service Manual for Arctic Cat ZR 6000 El Tigre, ZR 8000 LXR, XF 8000 Cross-Tour, M 6000, and M 8000 Series (including Sno Pro, HCR, LTD, and RR sub-models) 2-Stroke Snowmobiles 2014
Product Gallery

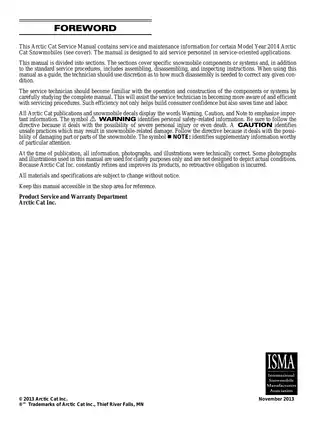

Sample pages from the Service Manual for Arctic Cat ZR 6000 El Tigre, ZR 8000 LXR, XF 8000 Cross-Tour, M 6000, and M 8000 Series (including Sno Pro, HCR, LTD, and RR sub-models) 2-Stroke Snowmobiles 2014 manual
Purchase Information
Technical Specifications
- Document Number / Seller:
- 31913 / Paul Jackson
- File Size:
- 49.11 MB
- File Type:
- Language:
- English
- Pages:
- 196
- Printable:
- Yes
- Estimated Download Time:
- 1.01 Minutes
- Delivery Format:
- Digital (PDF) - Instant Access
- Category:
- Snowmobile
- Brand:
- Arctic Cat
- Reviewed and Approved:
- Jan 1, 2026
Arctic Cat Models and Parts Covered in this Snowmobile Manual
- Arctic Cat ZR 6000 El Tigre (2014)
- Arctic Cat ZR 6000 RR (2014)
- Arctic Cat ZR 8000 LXR (2014)
- Arctic Cat ZR 8000 Sno Pro (2014)
- Arctic Cat ZR 8000 LTD (2014)
- Arctic Cat ZR 8000 RR (2014)
- Arctic Cat XF 8000 LXR (2014)
- Arctic Cat XF 8000 Sno Pro (2014)
- Arctic Cat XF 8000 LTD (2014)
- Arctic Cat XF 8000 Cross-Tour (2014)
- Arctic Cat XF 8000 Cross Country (2014)
- Arctic Cat XF 8000 High Country (2014)
- Arctic Cat XF 8000 High Country LTD (2014)
- Arctic Cat M 6000 (2014)
- Arctic Cat M 8000 (2014)
- Arctic Cat M 8000 Sno Pro (2014)
- Arctic Cat M 8000 LTD (2014)
- Arctic Cat M 8000 HCR (2014)
Complete Manual Information
Arctic Cat ZR/XF/M 2-Stroke Service Manual - 2014 Edition
This authoritative factory service manual provides the engineering data and procedural frameworks necessary for the maintenance and overhaul of the 2014 Arctic Cat 2-stroke snowmobile lineup. A critical technical requirement detailed within is the specific 100:1 fuel-to-oil premix ratio required for the first full tank of fuel on 8000 series engines (new or rebuilt) to ensure sufficient boundary lubrication during the initial thermal expansion cycles.
Technical Applicability & System Architecture
The manual is categorized by chassis configuration and engine displacement, covering the following 2014 high-performance platforms:
ZR Series (Trail / Performance)
- Arctic Cat ZR 6000 El Tigre (2014)
- Arctic Cat ZR 6000 RR (2014)
- Arctic Cat ZR 8000 LXR (2014)
- Arctic Cat ZR 8000 Sno Pro (2014)
- Arctic Cat ZR 8000 LTD (2014)
- Arctic Cat ZR 8000 RR (2014)
XF Series (Crossover / High Country)
- Arctic Cat XF 8000 LXR (2014)
- Arctic Cat XF 8000 Sno Pro (2014)
- Arctic Cat XF 8000 LTD (2014)
- Arctic Cat XF 8000 Cross-Tour (2014)
- Arctic Cat XF 8000 Cross Country (2014)
- Arctic Cat XF 8000 High Country (2014)
- Arctic Cat XF 8000 High Country LTD (2014)
M Series (Mountain)
- Arctic Cat M 6000 (2014)
- Arctic Cat M 8000 (2014)
- Arctic Cat M 8000 Sno Pro (2014)
- Arctic Cat M 8000 LTD (2014)
- Arctic Cat M 8000 HCR (2014)
Operational Value & Accuracy
- Maintenance intervals and "After Break-In" checklists (100–300 miles) protect powertrain longevity and resale value.
- Grouped torque specifications for drive systems and chassis components prevent fastener fatigue and ensure structural integrity.
- Detailed electrical resistance values for sensors and coils allow for precision diagnostics of the EFI and ignition systems.
Document Metadata
- Print No: 2259-956
- Page Count: 196 Pages
- Publication Date: November 2013
Technical Depth & Factory Benchmarks
Engine performance is regulated by highly specific internal tolerances. For the 6000 series (599cc), the piston skirt to cylinder clearance is benchmarked at 0.0041–0.0053 inches, while the 8000 series (794cc) utilizes the same clearance range but requires a crankshaft runout (T.I.R.) limit of 0.002 inches to prevent harmonic vibration and bearing failure.
Visual Navigation Aids
System servicing is facilitated through:
- Engine Assembly Schematics: Detailed exploded views for 6000 and 8000 series powerplants.
- Cooling System Flow Maps: Visualization of heat exchanger and water pump routing.
- Shock Absorber Sectionals: Component-level diagrams for Fox Float X EVOL and Mono-Tube rebuilds.
Table of Contents
- General Information: Identification, Gasoline/Oil, Storage Procedures
- Engine Specifications: 6000/8000 Displacement, Tolerances, APV Specs
- Electrical Systems: Resistance Tests, Ignition Timing, Sensor Voltage Charts
- Fuel Systems: EFI Diagnostics, Fuel Pump, Oil-Injection Synchronization
- Drive Train/Track/Brake: Clutching, Chain Case Calibrations, Hydraulic Brake Service
- Suspension: Setup Basics, Air Shock Recharging, Spring Rate Data
- Steering and Body: Alignment, Post Removal, Spindle Servicing
Operational Limits & Specifications
Torque sequences and fluid parameters are strictly defined to maintain factory performance:
- Drive Clutch Bolt: 51 ft-lb (must be applied with oil on threads).
- Cylinder Base Nuts: 38 ft-lb (8000 series) / 44 ft-lb (6000 series in three steps).
- Fuel Requirement: 91 Octane (Minimum) for peak performance; 10% ethanol maximum.
- Chain Case Lubricant: 15 oz. of Arctic Cat Chain Lube.
- APV Cable Length: 1.427 inches (6000) / 1.437 inches (8000) ±0.039.
