Hyster H1.50–1.75XM & H2.00XMS Forklift Repair Manual Set, 1993–1994 (P/N 897507)

The chassis publications distinguish H- and S-series layouts, while the separate Mazda sections cover internal engine work and configuration-specific fuel and electrical systems. Engine removal and installation are covered in the frame section.

Coverage limits: The M4-1.5G is a Far East configuration; the diesel installation does not apply to S25–35XM or S40XMS trucks. The two mast-cover files contain the same 35-page repair body, so they do not supply separate mast-description and mast-repair chapters.

PDF Search, Bookmarks, and Wiring Detail

Text access and diagram detail: Most text is searchable, but Maintenance Schedule.PDF has text-encoding problems that prevent reliable ordinary word searches. Some schematic labels are embedded as images and cannot be searched. All files except Capacities and Specifications.PDF have embedded bookmarks. Small labels on the checked wiring diagrams are readable with zoom, although some lines are faint.

The ZIP download contains 28 printable PDFs in English, totaling 507 pages, including three separate cover pages and one notes page.

Mazda Engine, Powershift, and Mast Repair Coverage

The following selected topics show the repair coverage rather than reproduce the full contents. Other included subjects include operator-restraint checks and metric/inch fastener identification.

• Engine repair: Step-by-step cylinder-head and valve-train work, timing-system service, piston and bearing inspection, lubrication-system repair, compression testing, and engine troubleshooting.

• Fuel systems: Gasoline carburetor overhaul, LPG vaporizer and filter-valve repair, governor adjustment, diesel injection-pump timing, injector checks, and fuel-system bleeding.

• Powershift drivetrain: Torque-converter and clutch-pack service, transmission-pump and control/modulator-valve repair, differential setup, stall testing, and pressure-based fault finding.

• Brakes and steering: Service- and parking-brake repair, master and wheel cylinders, hub seals and bearings, kingpins, steering cylinders, and Ross HGF Hydraguide overhaul.

• Hydraulics and mast: Gear-pump and pump-drive repair, relief and flow testing, main-valve overhaul, mast/carriage and side-shift service, cylinder repair, and chain/roller adjustment.

• Electrical diagnosis: Mazda starter, alternator, distributor, and glow-plug tests; instrument-cluster repair; connector functions; and engine, lighting, and direction-control schematics.

• Cooling and maintenance: Cooling-system tests, radiator and thermostat checks, scheduled lubrication, fluid/filter service, fork and chain inspection, and pneumatic- and solid-tire work.

Repair and adjustment work requires trained, authorized lift-truck service personnel with the lifting equipment and test instruments specified in the procedures.

Engine Timing and Internal Repair

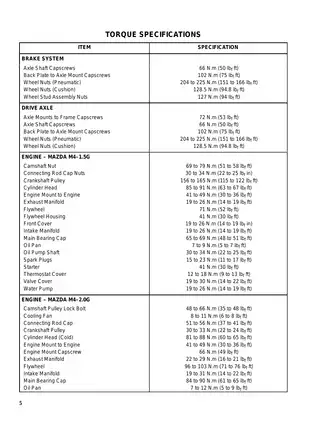

The M4-1.5G uses a chain-driven camshaft, the M4-2.0G uses a timing belt, and the M4-2.5D uses timing gears. The engine chapters cover crankshaft and camshaft inspection, oil- and water-pump work, flywheel and ring-gear service, component-specific torque sequences, and wear/clearance data.

Gasoline, LPG, and Diesel Fuel Systems

Gasoline coverage includes float setting and governor adjustment. The two LPG publications distinguish the standard arrangement from the M4-2.0G system, with hose and diaphragm replacement, pressure-switch checks, leak inspection, and final adjustments.

The diesel chapter includes injection-pump removal and installation, water-separator and fuel-filter service, and injector nozzle disassembly, spray-pattern testing, and adjustment. Internal injection-pump repair is outside this section and is assigned to an authorized repair service; injector work also requires specialist equipment and training.

An LPG tank installed outside its alignment-pin position can damage the hose or fittings and release fuel.

Transmission Diagnosis and Differential Setup

The combination of stall tests, separate pressure checks, and symptom charts supports fault isolation across the engine and drivetrain. For example, the transmission chapter explains how test results distinguish low engine output from converter or clutch faults.

Internal repair covers Forward/Reverse clutch inspection and clearance checks. Differential work adds pinion shimming, bearing preload, ring-and-pinion clearance, and tooth-contact patterns. Hand-lever and MONOTROL controls have separate service and adjustment information.

Brake and Hydraguide Service Details

Brake and axle material distinguishes H- and S-series hub and grease-seal arrangements and includes bleeding and bearing-preload checks. The right- and left-hand automatic brake adjusters have opposite threads; swapping them increases shoe clearance when the brakes are applied.

Hydraguide assembly illustrations identify drive-link and valve-plate orientation, alignment grooves, pins, and spring slots. Incorrect indexing can damage a spring and leave steering active or operating incorrectly.

A dimensioned service-fixture drawing provides the information needed to fabricate a holder for steering-unit service.

Hydraulic Circuits, Mast Layouts, and Cylinder Seals

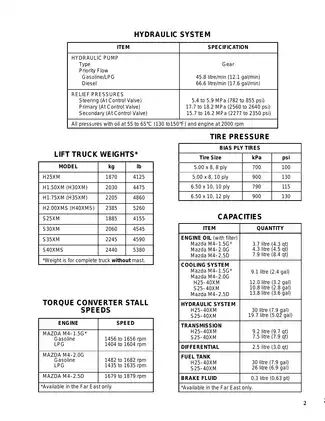

Hydraulic coverage follows the flow divider, steering and main relief circuits, and test ports. Main-valve documentation separates the inlet, lift/lower, tilt, and auxiliary sections, with linkage checks and fault charts.

Mast repair distinguishes two-stage limited-free-lift, two-stage full-free-lift, and three-stage full-free-lift layouts. Detailed material covers strip bearings, header-hose arrangements, cylinder leakage checks, and carriage setup.

Lift-cylinder seal work references Hyster packing lubricant P/N 186061 and seal tools in Part-Service Gram L-A-2; that separate Gram is not included.

Electrical Schematics and Component Tests

The diagrams pair M4-2.0G gasoline/LPG and M4-2.5D diesel wiring with US and European lighting layouts. Further drawings cover instrument-cluster connector functions, the hydraulic-system schematic and arrangement, hand-lever/MONOTROL direction control, and the transmission hydraulic circuit in neutral.

Engine-specific electrical chapters add charging-output, diode, rotor/stator, and starter checks. Diesel material includes glow-plug relay and controller diagnosis.

Cooling Checks and Scheduled Service

Cooling diagnosis includes checks for exhaust leakage into the coolant, radiator restrictions, thermostat operation, and fan/shroud condition. The maintenance publication adds inspection and lubrication schedules, wheel/tire procedures, and operating precautions for a new or rebuilt engine.

Follow the manual’s blocking, mast-restraint, fuel-isolation, hydraulic-pressure-release, and battery-disconnection precautions before repair work.

Examples of Differential Clearances and Transmission Test Data

The differential setup instructions specify ring-and-pinion clearance of 0.18–0.23 mm (0.007–0.009 in), supported by tooth-contact illustrations and bearing-preload information.

For the single-speed powershift transmission, the pump-pressure specification at test port No. 1 is 1170–1470 kPa (170–213 psi) in neutral at 2000 rpm, with transmission oil at 65–70°C (150–160°F). Separate converter-inlet and clutch-pressure specifications accompany the diagnostic procedures.
