Hyster H2.00-3.20XM, H40-65XM, S2.00-3.20XM, S40-65XM Forklift 1998–2005 Service Manual (P/N 899784, 897487, 1456997, 897934)

• Model and build coverage: Covers Hyster H2.00-3.20XM/H40-65XM and S2.00-3.20XM/S40-65XM trucks across H177, D177, and D187 series applications. The section covers identify the applicable truck family and also separate US and European specification data where Hyster published different configurations.
• Engine and fuel-system repair: Includes Mazda M4-2.0G and M4-2.2G, GM 3.0L, and Perkins 704-26 (UB) diesel material, plus shared GM 3.0L/4.3L MEFI-4 and Spectrum control sections. Procedures cover engine removal, cylinder-head and valve work, timing components, lubrication systems, pistons, crankshafts, fuel-system leak and pressure testing, and Aisan open-loop, Aisan closed-loop, Impco, and electronically controlled LPG/gasoline systems.
• Powershift and hydrostatic drivetrains: Details single-speed Powershift transmission removal, clutch-pack and control-valve repair, differential setup, stall testing, MONOTROL and inching adjustments, and circuit pressure checks. A separate hydrostatic section covers the pump, wheel motors, drive axle, throttle-up option, commissioning after repair, swashplate-cylinder adjustment, leakage checks, and loop, pilot, charge, and case-pressure testing.
• Hydraulics, mast, and steering: Provides gear-pump disassembly and repair, flow testing, steering-relief adjustment, main-control-valve service, steering-control-unit overhaul and air removal, tilt-cylinder repair, and steering-axle work. Mast coverage includes standard and sideshift carriages, two-stage LFL/FFL and three-stage FFL disassembly and assembly, lift cylinders, header-hose routing, chain adjustment, and lift/tilt leak checks.

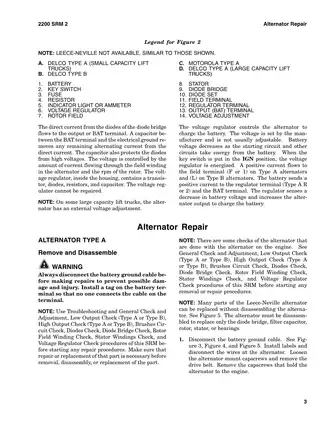

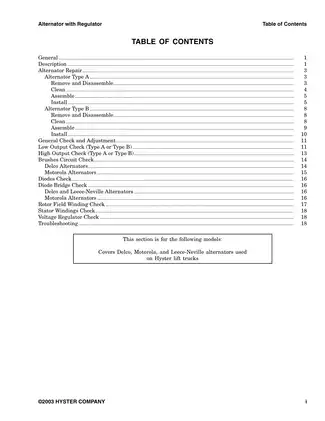

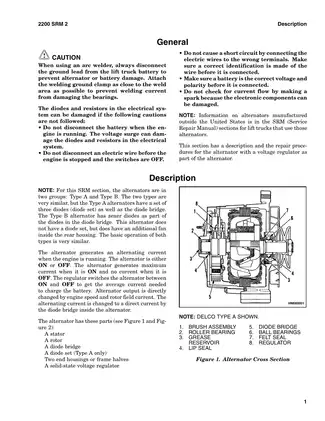

• Electrical and electronic diagnosis: Covers Delco, Motorola, and Leece-Neville alternators; Delco starters; Mazda starting, charging, and ignition circuits; instrument-cluster replacement; MSTS and MEFI-4 troubleshooting; Spectrum ECM fault isolation; DTC charts; sensor and actuator tests; connector repair; and scan-tool data analysis.
• Brakes, frame, and scheduled service: Includes service-brake, parking-brake, and dual-circuit master-cylinder repair; hydraulic bleeding; brake-switch tests; MONOTROL neutral-start and inching linkage adjustments; operator-module and counterweight removal; radiator, tank, and engine/transmission removal; tire and wheel service; lubrication; and periodic inspection schedules.

Document Set and Publication Identity

This is a 37-PDF, 1,687-page Hyster factory manual set. The page count breaks down to 1,093 pages of engine, fuel, ignition, starting/charging, and electronic-control material; 398 pages covering drivetrain, axles, brakes, hydraulics, steering, frame, mast, instrument cluster, and tilt cylinders; and 196 pages of wiring diagrams, capacities and specifications, cooling-system service, fastener data, and periodic maintenance. Thirty PDFs carry individual Hyster part numbers, including the model-specific frame, brake, axle, Powershift, hydraulic, mast, maintenance, specification, and diagram sections.

The depth and test-equipment requirements make this set best suited to professional technicians and experienced owners who already understand heavy-equipment repair and have access to proper lifting equipment, pressure gauges, electrical meters, and scan tools. The electronic-control chapters specifically assume working knowledge of basic circuits and circuit testing.

Engine Controls and Fuel-System Variants

The electronic material goes well beyond a basic wiring overview. MEFI-4 and earlier ECM sections explain malfunction-indicator operation, scan data, circuit tests, poor-performance diagnosis, and ignition and fuel-control component repair. The later Spectrum coverage adds laptop-based DTC diagnosis, sensor and actuator monitoring, special tests, and dedicated fault charts for EPA-compliant GM engines. Listed service equipment includes Spectrum diagnostic software P/N 2067944, Spectrum special tools kit P/N 2067935, legacy scan tool P/N 95050 with adapter P/N 94005H, and Hyster terminal-repair kit P/N HYS1004.

Fuel-system sections distinguish carbureted Mazda and GM applications, Aisan open- and closed-loop LPG arrangements, Impco equipment, TBI and MPFI gasoline systems, and electronically controlled LPG hardware. Covered work includes regulators, mixers, carburetors, injectors, throttle controls, HEGO sensors, fuel tanks and lock-offs, leak testing, restricted-exhaust diagnosis, and governor and linkage adjustment.

Schematics, Test Data, and Repair Scope

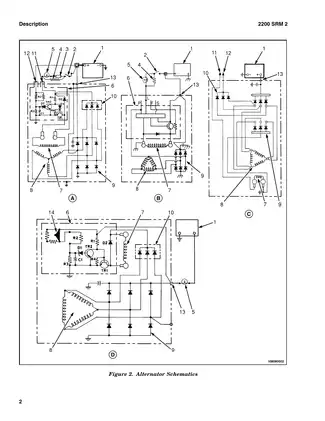

The 55-page diagram section, P/N 1456998 / 8000 SRM 709, contains 32 numbered schematics and arrangements. Examples include early/late GM 3.0L gasoline and LPG wiring, the Mazda EGI EPA-compliant wiring diagram, early/late Perkins 2.6L diesel wiring, the hydraulic-system schematic, the Powershift transmission neutral circuit, and hydrostatic transmission electrical and hydraulic diagrams. Exploded assembly views, connector layouts, diagnostic charts, and component section views appear throughout the repair PDFs.

The capacities and specifications section, P/N 1456997 / 8000 SRM 708, provides weights, tire data, fluid capacities, electrical specifications, transmission and hydraulic test data, stall-speed tables, engine specifications, and mast-speed tables indexed by engine, truck model, and US or European configuration. Component sections add torque tables, wear limits, clearances, and adjustment data where each repair is performed.

Two scope limits are worth noting before purchase. The single-speed Powershift section specifies that the torque converter is replaced as a complete assembly rather than rebuilt. Mast theory includes a four-stage configuration, but the included 4000 SRM 522 repair section details two-stage LFL/FFL and three-stage FFL masts; the separately referenced 4000 SRM 1148 four-stage repair section is not included.

The factory cautions also identify component-specific failure risks. Contaminated hydrostatic fluid can damage or destroy the close-tolerance pump and wheel motors, while turning the Perkins crankshaft with the idler gear removed can allow piston-to-valve contact and disturb both valve and injection-pump timing. Lift-truck repair must be performed with the truck, mast, and raised components correctly supported, hydraulic pressure released, and tire and brake work handled with the training and equipment specified in the applicable section.
