Hyster A187, S40XL, S50XL, S60XL Forklift 1995–2002 Service Manual (P/N 899788, 899323)
602 Pages • 25.30 MB • Printable PDFs (ZIP Download)
Hyster Models Covered & Key Technical Specifications
Models: S2.00XL, S2.50XL, S3.00XL, S40XL, S50XL, S60XL, H2.00XL, H2.50XL, H3.00XL, H40XL, H50XL, H60XL
Sub-models / Variants: 2WD, Internal Combustion (Gasoline, LPG, Diesel), Forklift, Mast variants (Vista Free-Lift, Two-Stage, Three-Stage, Four-Stage)
Trade Names: Hyster XL
Model Years: 1995–2002 (1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002)
Serial Numbers: A187, B187, C187, B177, C177
-
Engine displacement (Mazda M4-121G): 1985 cm³
-
Engine displacement (Isuzu C240): 2369 cm³
-
Engine displacement (GM 4-153): 2507 cm³
-
Engine displacement (GM 4-181): 2966 cm³
-
Main lifting hydraulic system relief pressure: 19.30 to 20.00 MPa (2800 to 2900 psi)
-
Steering relief pressure: 9.9 to 10.7 MPa (1435 to 1552 psi) at 1000 rpm
-

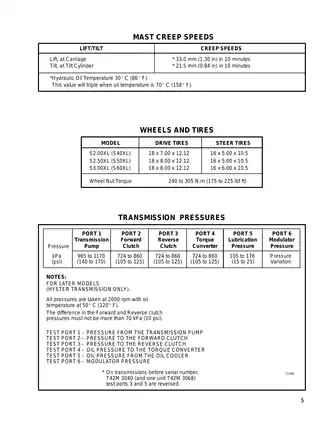

Transmission lubrication pressure: 105 to 176 kPa (15 to 25 psi)
Hyster Manual Features & Content Preview
This 602-page PDF service-manual set covers Hyster S2.00XL, S2.50XL, and S3.00XL lift trucks, also identified as S40XL, S50XL, and S60XL, in the A187, B187, and C187 serial-number series. Engine coverage includes the Mazda M4-121G gasoline/LPG, Isuzu C240 diesel, and GM 4-153 and 4-181 gasoline/LPG configurations. It is suited to trained lift-truck technicians and experienced owners who have the lifting, pressure-testing, and engine-measuring equipment these procedures assume; Hyster specifically states that repair and adjustment work requires authorization and training.
- T42 single-speed Powershift transmission: Covers torque-converter removal and installation, pump and clutch-pack disassembly, differential setup, control-valve and MONOTROL pedal repair, stall testing, pressure diagnosis, linkage adjustment, and troubleshooting.
- Engine and fuel-system repair: Provides internal repair procedures for the Mazda M4-121G, Isuzu C240, and GM inline engines, including cylinder-head and valve work, timing components, pistons, crankshaft, camshaft, lubrication systems, carburetors, LPG equipment, and diesel fuel injection.
- Hydraulic and steering systems: Details the gear pump and pump drive, flow-control and relief valves, main control valve, steering control unit, lift cylinders, tilt cylinders, leak checks, pressure testing, flow testing, adjustment, and fault isolation.

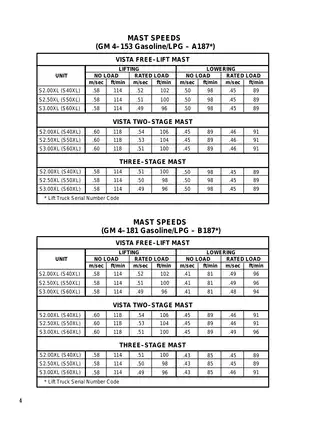

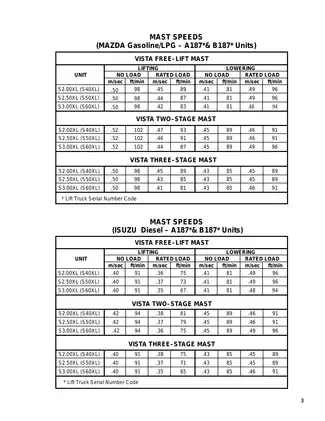

- Vista mast and carriage work: Includes two-stage, free-lift, three-stage, and four-stage mast construction; carriage and side-shift service; mast and carriage removal; weldment disassembly; roller, shim, wear-pad, chain, and cylinder-related checks; mast-speed charts; and final adjustments.
- Chassis, brake, and axle procedures: Addresses counterweight, overhead guard, hood and restraint components, engine/transmission removal through the frame, drive axle, steering axle, wheel brakes, master and wheel cylinders, parking brake, brake bleeding, inching overlap, and neutral-start adjustment.
- Electrical diagnosis and diagrams: Covers Mazda starting, ignition, and charging systems; Isuzu starting, glow-plug, and charging systems; GM HEI service; gauges and senders; and gasoline, LPG, and diesel wiring tailored to the covered engine configurations.
Serial-Specific Coverage
The transmission material identifies A187, B187, and C187 as all-model coverage for the S2.00-3.00XL range, then separates adjustment procedures where the hardware changed. A187 uses its own brake/inching-pedal procedure, while B187 and C187 receive their own direction-control linkage, inching/brake pedal, and MONOTROL neutral-start switch checks. The maintenance section also distinguishes the A187 Isuzu fuel-filter arrangement from later B/C187 units equipped with a water separator and instrument-panel sender.
Schematics, Test Data, and Special Tools

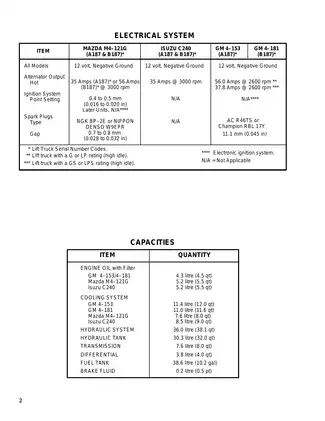

The dedicated 21-page diagrams section contains 12 factory figures. Useful examples include the Hydraulic System Schematic, Transmission Schematic, Instrument Panel Electrical Diagram, Mazda gasoline/LPG wiring for G/LPG and GS/LPS ratings, the GM gasoline/LPG wiring diagram with service-rating modifications, and Isuzu D/DS diesel wiring and cable diagrams. Supporting sections add connector views, component sections, exploded assemblies, diagnostic tables, torque specifications, fluid capacities, hydraulic test data, electrical checks, clearances, and wear limits.
Named service tools include Hyster valve-guide tool 327686 and cylinder-liner tools 327688/327689 for the Mazda engine; Hyster tools 320901, 320902, and 320903 for Isuzu liner replacement; and Kent-Moore J-24642 for GM electronic-module testing. The Isuzu chapter limits injection-pump and injector internal repair to work requiring specialized tools and training.
Document Identity and Scope
2200 SRM 107, P/N 899788 identifies the included 25-page GM High Energy Ignition section, not the entire 602-page set. Its own model list is broader and does not specifically name the A187/B187/C187 trucks, although the included GM engine chapter directs technicians to that HEI publication; ignition hardware should therefore be matched before applying its procedures. Other cover-identified publications include 1300 SRM 255, P/N 899323 (Powershift description and operation), 700 SRM 626, P/N 897934 (cooling system), and 2100 SRM 103, P/N 910102 (tilt cylinders).
| PDF section group | Pages | Included files |
|---|---|---|
| General reference and maintenance | 104 | Capacities and Specifications 9; Diagrams 21; SAE/Metric Fasteners 8; Instrument Panel 23; Periodic Maintenance 43 |
| Engines, fuel, cooling, and engine electrical | 232 | GM Engine 31; HEI 25; Cooling 7; Mazda Electrical 25; Isuzu Electrical 20; Gasoline Carburetor 11; Isuzu Engine 38; LPG Fuel System 26; Mazda Engine 30; Rochester Carburetor 19 |
| Transmission, chassis, brakes, and axles | 116 | Powershift Description 25; Powershift Repairs 49; Brake System 19; Drive Axle 5; Frame 12; Steering Axle 6 |
| Hydraulics, cylinders, and steering control | 97 | Pump Drive 5; Gear Pump 11; Main Control Valve 15; Steering Control Unit 25; Tilt Cylinders 15; Lift Cylinders 26 |
| Masts and carriages | 53 | Four-Stage Mast Repair 15; Vista Mast Description 10; Vista Mast Repair 28 |
The transmission repair chapter flags two costly assembly traps: an incompletely engaged torque-converter hub can damage the transmission pump when the housings are brought together, and a damaged clutch-piston lip seal can force complete transmission disassembly again.
Industrial lift truck maintenance involves working with high-pressure hydraulics and heavy counterweights. Always consult a certified technician and observe standard shop safety protocols before performing any procedures on this equipment.
