Hyster S70XL–S120XLS (D004) Forklift Repair Manual Set 2005 (P/N 897308)

928 Pages • ZIP Download: 30 Printable PDFs • 35.70 MB

4.5starstarstarstarstar_half(4)
$22.95 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Hyster Models Covered & Key Technical Specifications

Models: H3.50-5.00XL (H70-110XL), S3.50-5.50XL (S70-120XL), E3.50-5.50XL (E70-120XL, E70-120XL3), E3.50-5.50XL, E4.50XLS (E70-120Z, E100ZS)

Models & Model Codes:

H3.50-5.00XL (H70-110XL) — F005, G005

S3.50-5.50XL (S70-120XL) — D004

E3.50-5.50XL (E70-120XL, E70-120XL3) — C098

E3.50-5.50XL, E4.50XLS (E70-120Z, E100ZS) — D098, E098

Sub-models / Variants: H70-110XL, S70-120XL, E70-120XL, E70-120XL3, E70-120Z, E100ZS; S4.00XL BCS (S80XL BCS), S5.50XLS (S120XLS)

Model Year: 2006

D004 engine variants: GM 4.3-liter V6; Perkins 1004-4 (AA), 1004-42 (AR)

Additional engine coverage in the Perkins publications: 1004-4T (AB), 1006-6 (YA), 1006-6T (YB), 1006-60 (YG), 1006-60T (YH)

Ignition variants: GM HEI; MSTS for late-model GM 3.0L and 4.3L LPG engines

Transmission: Single-speed powershift for S3.50-5.50XL (S70-120XL) (D004); the included transmission publications also cover S3.50-5.50XM (S70-120XM) (E004, F004)

Engine Serial Breaks: Perkins 1004-4 (AA): revised pistons and rings from A––––––U664793Y; 1004-4T (AB): from A––––––U654110Y; 1006-6T (YB): from Y––––––U576870Y. Earlier and revised pistons and rings are not interchangeable and must be changed in complete engine sets.

Air Compressor Serial Break: Perkins 1006-6 (YA) and 1006-6T (YB): WABCO Model 159/229 replaced by Bendix 1W150R/1W250R from engine serial number Y––––––U661001Y.


  • Brake booster relief pressure (1800 SRM 338): 2300 kPa (332 psi)

  • Seat brake holding capacity: 15% grade with capacity load

  • Wheel nut torque check: After wheel installation, check after 2 to 5 operating hours. Once the nuts remain tight after an 8-hour check, the interval may be extended to 350 hours for H70-110XL, S70-120XL, and E70-120XL; 500 hours for E70-120XL3, E70-120Z, and E100ZS.

  • Backplate tightening torque: 54 to 81 Nm (40 to 60 lbf ft) initial, 108 to 122 Nm (80 to 90 lbf ft) final; verify 95 to 122 Nm (70 to 90 lbf ft) with a hand torque wrench.

Hyster Manual Features & Selected Content Preview

Publication Pages

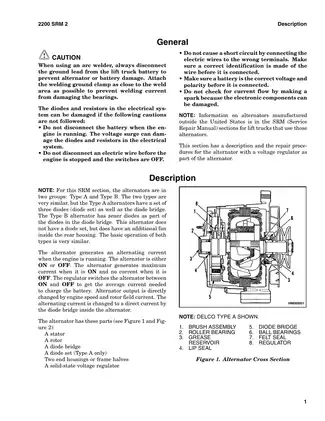

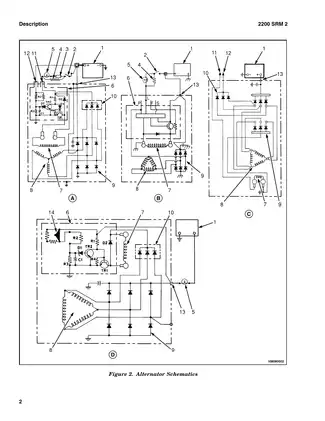

Alternator with Regulator — Delco, Motorola, and Leece-Neville units; P/N 899784, 2200 SRM 2 23
Brake System — H70-110XL F005/G005, S70-120XL D004, and the specified C098/D098/E098 electric models; P/N 897120, 1800 SRM 338 34
Cooling System — internal combustion engine powered units; P/N 897934, 700 SRM 626 9
GM Engines, 4.3 Liter V-6 — D004/G005 and other listed XL/XM models; P/N 897800, 600 SRM 590 46
High Energy Ignition (HEI) System — applicable GM-powered Hyster models; P/N 899788, 2200 SRM 107 25
Hydraulic Gear Pumps — D004 and other listed Hyster models; P/N 910091, 1900 SRM 97 19
Hydraulic Pump Drive Assembly — D004 and specified H/S XL/XM models; P/N 897121, 1900 SRM 339 9
Instrument Panel Indicators and Senders — D004, C098, and other listed model groups; P/N 910110, 2200 SRM 143 38
LPG Fuel System — GM V6 applications including D004; P/N 897129, 900 SRM 348 34
Lift Cylinders — general cylinder designs and VISTA mast cylinders, with model exclusions; P/N 910119, 4000 SRM 135 33
Manual Hydraulic Control Valve — specified XL electric and engine-powered models, including D004; P/N 899782, 2000 SRM 77 21
VISTA Masts — G005, D004, and C098 applications; P/N 897122, 4000 SRM 340 40
Metric and Inch (SAE) Fasteners — all models; P/N 910442, 8000 SRM 231 19
Microprocessor Spark Timing System (MSTS) — late-model GM 3.0L and 4.3L LPG engines; P/N 1473385, 2200 SRM 765 46
Periodic Maintenance — S70-120XL D004 and S135-155XL B024/C024; P/N 897304, 8000 SRM 393 59
Perkins Diesel Engines — 1004-42 (AR), 1006-60 (YG), and 1006-60T (YH); P/N 1455747, 600 SRM 705 130
Electrical and hydraulic circuit sheets — SCHEMATIC (2).pdf 14
Gasoline/LPG, diesel, hydraulic, transmission-control, and lighting circuit sheets — SCHEMATIC.pdf 8
Perkins Diesel Engines, Series 1000 — 1004-4 (AA), 1004-4T (AB), 1006-6 (YA), and 1006-6T (YB) 91
Single-Speed Powershift Transmission, Description and Operation — D004/E004/F004; P/N 897322, 1300 SRM 399 31
Single-Speed Powershift Transmission, Troubleshooting and Repair — D004/E004/F004; P/N 897308, 1300 SRM 397 66
Starter — Delco units used on Hyster lift trucks; P/N 910107, 2200 SRM 106 13
Steering Axle — specified H/S/E XL and XM models, including D004; P/N 897108, 1600 SRM 326 21
Steering Control Unit, Ross HGF — component-specific repair publication; P/N 910458, 1600 SRM 257 28
Steering Control Unit — D004 and other listed Hyster models; P/N 910076, 1600 SRM 54 23
Tilt Cylinders — specified cylinder designs and model groups, including XL/XLS applications; P/N 910102, 2100 SRM 103 19
Lift Truck Weights and Specification Sheets — S3.50-5.50XL, including listed BCS/XLS variants 5
Drive Axle — axle housing, mounts, hubs, and wheel bearings 4
Frame and Connected Parts — counterweight, hood, overhead guard, engine installation, tanks, and restraints 12
Hydraulic System — circuit operation, hydraulic pump repair, specifications, and troubleshooting 8

Use the system sections alongside the matching engine and transmission publications when planning service on S3.50-5.50XL (S70-120XL) D004 trucks. The operation sections explain how the assemblies work; the repair sections provide component procedures, inspections, adjustments, and fault-finding information.

Coverage varies by publication. Shared brake, steering, and electrical sections also address other Hyster models; they do not provide complete vehicle repair coverage for every model named. Match the installed engine, transmission arrangement, and component design to the applicable section. The Perkins books cover distinct engine families, while the supplied maintenance publication includes some additional engine references without providing their overhaul procedures.

PDF Search, Bookmarks, and Circuit Detail

Search and drawing navigation: Most service PDFs support text search. Search is unreliable in Steering Control Unit (2).pdf, while the technical diagrams in SCHEMATIC.pdf and tables in Weight.pdf are not usefully searchable. Embedded bookmarks are present in 28 files; SCHEMATIC (2).pdf and Weight.pdf have none. Small wiring labels require zooming, and SCHEMATIC.pdf has some faint or broken lines and less distinct wire codes.

The ZIP contains 30 printable PDFs totaling 928 pages, including the publications’ covers, safety and contents pages, notes pages, and 22 blank end pages. The table above gives each file’s complete page count.


Engine, Powershift, Hydraulic, and Brake Service

The following is a selection of the documented work, rather than a complete contents list. Other topics include fastener identification and operator-restraint checks.

  • Engine repair: Step-by-step cylinder-head, piston, crankshaft, timing-gear, lubrication, and cooling-system procedures for the specified GM and Perkins engines.

  • Powershift transmission: Forward and reverse clutch repair, differential and pinion setup, control-valve service, MONOTROL repairs, stall testing, and oil-pressure diagnosis.

  • Hydraulics and steering: Gear-pump inspection and output testing, pump-drive chain service, main control-valve repair, steering-unit overhaul, and steering-axle repairs.

  • Masts and cylinders: VISTA mast and carriage repair, sideshift service, lift-chain adjustment, lift-cylinder resealing, tilt-cylinder repair, and hydraulic leak checks.

  • Brakes and interlocks: Shoe assemblies, wheel cylinders, master cylinders, booster repair, air removal, parking-brake adjustment, and model-specific seat-brake service.

  • Fuel and ignition: LPG filter, vaporizer, carburetor, and governor procedures, plus HEI checks and MSTS diagnostic trouble-code testing.

  • Electrical diagnosis: Alternator and starter tests, instrument and sender checks, operator-presence troubleshooting, wiring diagrams, and hydraulic circuit schematics.

This set is suited to technicians familiar with forklift service and equipped for supported lifting, hydraulic pressure testing, and electrical diagnosis; its overhaul procedures assume more than routine owner-maintenance experience.

GM and Perkins Engine Repair

The GM engine publication distinguishes early and later 4.3-liter V6 arrangements, including cylinder-head hardware, valve-train service, timing components, and sealing details. Its inspection and machining data support internal repair rather than stopping at engine removal.

The Perkins publications cover cylinder heads, liners, pistons, bearings, crankshafts, timing gears, injection-pump timing, injectors, lubrication, and cooling components. Turbocharger and air-compressor content belongs to the specified engine variants.

The older Series 1000 publication identifies piston-and-ring production changes and a compressor replacement serial break. Those distinctions matter when selecting compatible parts; the engine codes and breaks must not be treated as interchangeable across the Perkins books.

Powershift Fault Finding and Internal Repair

The transmission repair publication follows the forward and reverse clutch assemblies through disassembly and reassembly, then addresses output-shaft, differential, bearing, and ring-and-pinion adjustments. It distinguishes Exedy clutch details and early versus later control-valve arrangements.

Stall-test interpretation and pressure-check charts help separate engine-performance complaints from torque-converter, clutch, and hydraulic-control faults. The companion operation publication explains manual direction control and MONOTROL operation, including the starting and parking-brake interlocks.

The D004 inching/brake linkage adjustment referenced by the brake publication is included in the transmission repair book. The separate H3.50-5.00XL powershift pedal-adjustment reference remains 1300 SRM 337.

Hydraulic Pumps, Steering, and Mast Work

Pump coverage extends to internal wear inspection, output checks, flow-control and relief components, hydraulic-system air checks, and the chain-driven pump arrangement. Main control-valve coverage includes the auxiliary solenoid valve, relief-valve checks, and control-lever adjustment.

Steering publications address the column, control unit, steering axle, spindles, bearings, tie rods, and steering cylinder. The Ross HGF book also supplies a dimensioned Service Fixture Assembly drawing for supporting the unit during repair.

VISTA mast procedures distinguish limited-free-lift, full-free-lift, and three-stage arrangements. Carriage and sideshift work, roller and shim adjustment, chain inspection, cylinder service, and lift/tilt leak checks are covered in the matching publications.

Brake Assemblies and Electric-Model Differences

The brake publication explains servo shoe action, reverse-stop automatic adjustment, and the relationship between shoe clearance and adjuster operation. Repair coverage includes wheel-cylinder bores, return springs, shoe contact areas, adjuster links, drum inspection and machining limits, plus model-specific hub and bearing installation.

D004 and F005/G005 trucks use the booster-mounted master cylinder; C098 and D098/E098 electric trucks use the non-booster arrangement. The electric master-cylinder section identifies repair kit P/N 54977A, while booster repair identifies kit P/N 375653.

Its 24 numbered figures include Brake Assembly, Drive Axle and Brake Assembly, and Support Plate Tightening Sequence. Brake Booster and Master Cylinder Operation, Seat Brake Assembly, and Traction Cutoff Switch Adjustment illustrate the hydraulic and electric arrangements.

Parking-brake coverage explains the MONOTROL neutral/start interlock and electric-truck traction cutoff. The D098/E098 seat-brake procedures cover the traction-motor-mounted assembly, solenoid, switch, and release cable. C098 seat-brake adjustment is referred to the separate Frame 100 SRM 284 publication.

The manual warns that swapped left/right adjusters increase shoe clearance instead of correcting it, and that the black and green return springs have fixed positions. It also identifies brake-fluid damage to booster seals and contamination risks for the brake fluid and linings.

LPG, Ignition, and Electrical Diagnosis

The LPG publication combines component repair with filter-unit and vaporizer checks, carburetor adjustment, and throttle-linkage setup. HEI coverage addresses distributor components, coils, modules, sensing coils, plugs, and timing checks.

MSTS coverage adds connector assignments, diagnostic-code retrieval, and circuit-based fault isolation for coolant-temperature, MAP, and electronic spark-timing faults. The Starter Rotates Engine, Engine Does Not Run Circuit and MONOTROL Pedal Electrical Circuit connect the diagnostic text to the relevant wiring.

Alternator procedures distinguish Delco, Motorola, and Leece-Neville designs and include output, diode, brush, rotor, stator, and regulator checks. Starter coverage includes voltage-loss and winding tests. Instrument-panel content provides checks and replacement procedures for meters, displays, senders, and the operator-presence system; it does not describe internal electronic repair of those components.

Maintenance, Frame, and Workshop Precautions

Periodic maintenance combines inspection schedules with lubrication, fluid service, chain checks, brake inspection, and wheel/tire work. The frame section addresses counterweight, hood, overhead guard, engine removal and installation, tanks, and safety labels.

Brake-lining dust must be controlled, the truck must be securely blocked, wheel and hub assemblies require proper lifting support, and the battery must be isolated before electric-model seat-brake work. Follow the publications’ warnings and model-specific references, including the precautions for LPG systems and raised masts.

Examples of Early and Later Powershift Pressure Data

For early S3.50-5.50XL transmission arrangements, the repair book specifies system pressure of 1032 to 1312 kPa (150 to 190 psi) at 2000 rpm with oil at least 82°C (180°F).

Its later-model chart gives 1170 to 1380 kPa (170 to 200 psi) at 2000 rpm, with a stated oil-temperature condition of 50 to 65°C (120 to 150°F). The separate charts identify the corresponding test ports and control-valve arrangements; these are variant-specific examples, not one combined pressure range.
