Hyster S30–120E, H30–60H & H40–50J/H60JS Forklift Service Manual Set (P/N 910234)

Use the truck-specific wiring and specification sheets to identify the circuit or configuration, then refer to the shared component sections for the corresponding tests and repairs. Match the engine, transmission, and mast to the applicable procedure.

Model coverage varies by section. H30–60H and H40–50J/H60JS coverage is component-specific. The included powershift repair publication covers S30–120E and S40–50F. For H60–110E powershift repair, the operation section refers to the separate 1300 SRM 111, which is not included.

PDF Search, Navigation, and Page Count

Search and diagram detail: Text search is available in parts of the set. Capacities and Specifications and Powershift Transmission — Repairs have no searchable text. In Diagrams, the figure captions are searchable and the labels are part of the drawings. Most files have named bookmarks. The powershift repair file has unlabeled bookmarks, and Diagrams and Capacities and Specifications have none. Zoom in to read small wire codes and connector pin labels.

The ZIP contains 33 printable PDFs totaling 528 pages, including five covers, one contents page, and three notes pages.

Engine, Drivetrain, and Mast Service

The following selected service topics show the range of coverage. The files also include hood and seat latch checks for the operator restraint system and metric and SAE fastener identification.

• Engine overhaul: GM and Perkins procedures cover cylinder heads, valve trains, pistons, crankshafts, timing gears, and oil pumps, with inspection limits and component torque tables.

• Transmission and differential: Two-speed manual, oil-clutch, and single-speed powershift service includes disassembly, clutch repair, differential setup, control-valve repair, stall testing, and inching adjustment.

• Electrical diagnostics: Thirteen symptom-based charts cover starting faults, battery drain, charging faults, inoperative gauges and horns, and powershift engagement. Dedicated chapters cover starter and alternator testing and repair.

• Hydraulic pumps and valves: Single-stage and tandem gear-pump overhaul, output checks with or without a flow meter, and flow-control and main-control-valve service include relief-valve checks and adjustment.

• Brakes and steering: Wheel-cylinder and master-cylinder repair, brake bleeding, and parking-brake adjustment are covered alongside steering-axle bearings, linkage, steering-cylinder seals, and hydrostatic steering-control-unit overhaul.

• Conventional and Vista masts: Carriage removal, chain inspection, load-roller shimming, and lift adjustments are covered for standard and full-free-lift arrangements, including conventional three- and four-stage and Vista two- and three-stage masts.

These sections suit forklift technicians and fleet maintenance teams diagnosing electrical and hydraulic faults or rebuilding drivetrain and mast assemblies.

Wiring and Powershift Faults

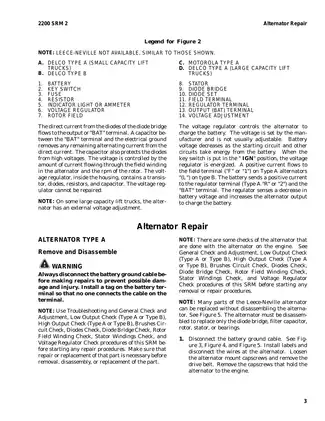

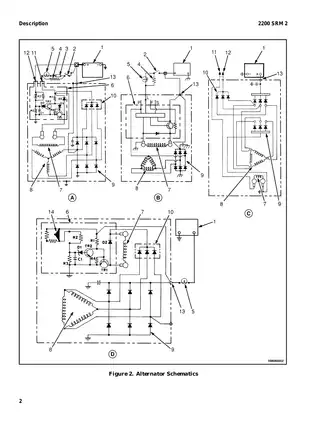

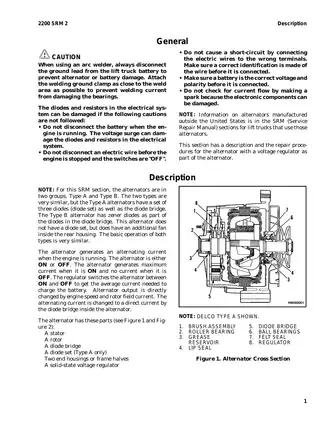

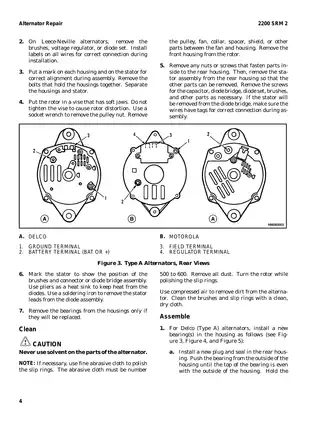

Separate electrical schematics show oil-clutch and powershift wiring, with distinct gasoline/LPG and diesel diagrams for H30–60H. Instrument-panel drawings identify four- and eight-pin connectors. Alternator procedures distinguish Type A and Type B diode layouts and tests.

For a truck that fails to engage, the steering and powershift hydraulic schematic shows the shared oil supply. The pressure-port drawing identifies the MONOTROL, clutch, torque-converter, and modulation circuits so a technician can trace the fault to the relevant test. The operating section distinguishes MONOTROL and direction-lever controls and explains the S100–120E accumulator valve.

Gasoline, LPG, and Diesel Fuel Systems

Rochester carburetor service covers the float, choke, accelerator pump, and governor. The IMPCO section covers the vacuum-operated fuel lockoff and vaporizer-regulator, with an LPG circuit diagram for leak checks, vacuum testing, and mixture adjustment.

Perkins fuel-system procedures cover injection-pump removal and installation, injection timing, bleeding, and injector testing. The manual directs internal injection-pump repairs to an authorized dealer.

Ducted Fans, Chassis, and Cylinders

The ducted-fan section covers disassembly, bearing replacement, belt adjustment, and lower-pulley roller-clutch service. It distinguishes the original splined drive from the roller-clutch design, identifies driver kit P/N 321006, and warns that excess heat can permanently damage the aluminum housing. The separate general cooling section covers radiator-cap, thermostat, and water-pump checks.

Chassis work includes engine and transmission removal, counterweights, drive-axle hubs, and integral fuel and hydraulic tanks. Hydraulic pump-drive service covers bearing preload and sprocket alignment.

The tilt-cylinder section explains the 1980–1981 retainer-seal change and how the cylinder threads can damage the relocated O-ring. Lift-cylinder service includes seal replacement and leak checks. The Vista three-stage hydraulic diagrams distinguish masts with and without a sequence valve, and the repair section covers the side-shift carriage and cylinder.

Follow shop safety procedures, secure raised mast assemblies as specified, and relieve system pressure before connecting hydraulic test equipment.

Starter Voltage and Clutch Pressure Examples

For the linkage-type starter, the pre-removal check specifies more than 9 V at the solenoid motor terminal with the key in START.

For the single-speed powershift on S30–120E and S40–50F, the clutch pressure check at port 2 specifies 110–115 psi at 1,200 rpm, with a drive direction selected and transmission oil at 120°F. The specification sheets also provide engine oil-pressure, ignition-timing, and fluid-capacity data.
