Hyster Forklift Manuals - H70XL, H80XL, H90XL, H100XL, H110XL Factory Workshop Manual (P/N 897108, 897120)

• Model coverage: H3.50XL (H70XL), H4.00XL-5 (H80XL), H4.00XL-6 (H90XL), H4.50XL (H100XL), and H5.00XL (H110XL), identified as the G005 series, with three-speed manual/oil-clutch and single-speed powershift configurations.
• Engine repair: Covers GM 4.3-liter V-6 overhaul work and Perkins Series 1000/1004-family cylinder head, valve train, piston, crankshaft, timing gear, lubrication, cooling, fuel-injection, and engine-specific inspection procedures.
• Drivetrain service: Details manual transmission/differential and powershift/torque-converter removal, internal disassembly, clutch-pack and control-valve inspection, reassembly, pressure testing, Monotrol/direction-linkage adjustment, and ring-and-pinion contact setup.
• Hydraulics, mast, and brakes: Includes chain-drive and gear-pump repair, hydraulic fault isolation, Vista mast and carriage disassembly, lift- and tilt-cylinder repair, roller and strip-bearing shimming, chain adjustment, steering-system work, brake overhaul, and bleeding.

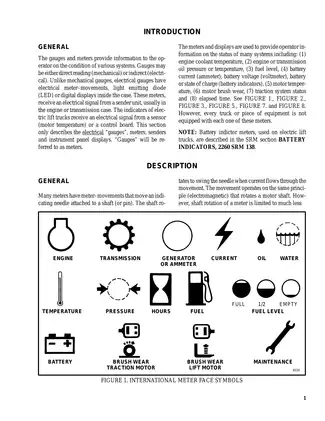

• Electrical diagnosis: Provides early- and later-production gasoline/LPG and Perkins diesel schematics, GM gasoline/LPG wiring, powershift and oil-clutch circuits, MSTS/EST diagnostic charts, instrument and warning-device checks, and alternator and starter repair.

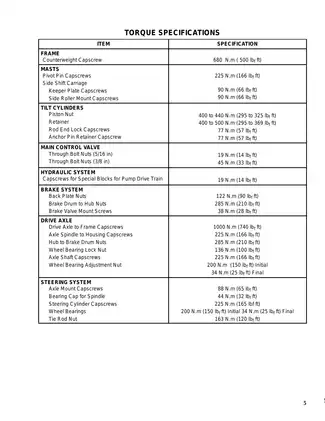

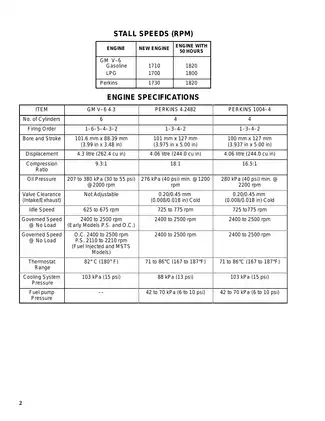

• Factory reference data: Supplies maintenance schedules, approved lubricants and capacities, tire data, component torque tables, hydraulic and transmission pressure-test specifications, wear limits, clearances, engine identification codes, and model-specific alignment and adjustment data.

Model and Shop Fit

This factory service material is suited to trained lift-truck technicians and equipped repair shops. The procedures assume experience with heavy-component handling, pressure gauges, dial indicators, pullers and presses, internal engine work, and hydraulics; it is not an operator-level quick-fix guide. The set documents blocking and stabilization when the mast, drive axle, counterweight, or powertrain is removed, plus precautions for securing the mast and carriage and relieving hydraulic pressure.

Engine, Fuel, and Electrical Scope

The full engine repair volumes cover the GM 4.3-liter V-6, Perkins Series 1000 AA/AB/YA/YB engines, and the 1004-42 AR, 1006-60 YG, and 1006-60T YH family in P/N 1455747. That volume specifically assigns the G005 H3.50-5.00XL trucks to the four-cylinder 1004-42 AR. The Perkins 4.2482 is represented in the G005 maintenance, capacity, torque-reference, and diesel-schematic material, but this set does not include a separate 4.2482 internal-overhaul volume.

Electrical coverage is split by machine configuration. Five drawings separate early- and later-production gasoline/LPG circuits, the Perkins 4.2482 diesel circuit, and early- and later-production Perkins 1004-4 circuits. Another section covers GM V-6 gasoline and LPG harnesses, transmission and oil-clutch circuits, hydraulics, and U.S./EEC lighting options. The MSTS material adds a wiring diagram, ignition-system troubleshooting, EST fault chart, MAP sensor pressure/voltage chart, and coolant-temperature-sensor chart. Alternator P/N 899784 addresses Delco Type A/Type B, Motorola, and Leece-Neville units; the starter chapter covers Delco removal, internal inspection, electrical checks, and fault isolation.

Drivetrain, Hydraulics, Mast, and Brakes

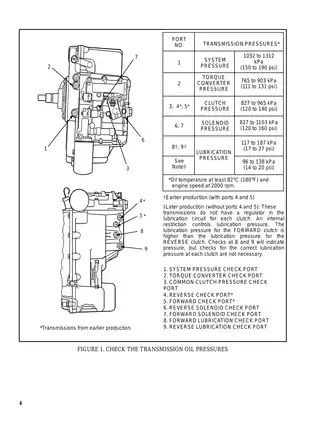

The manual gearbox section explains its three forward/reverse ranges, high- and intermediate-range synchronizers, selector rails and forks, clutch linkage, and combined ring-gear/differential setup. Powershift coverage follows the torque converter, clutch packs, oil pump, control valve, Monotrol pedal, and direction lever through removal, repair, adjustment, and testing. It distinguishes early and later clutch-lubrication circuits and shows the pressure-test ports. For H3.50-5.00XL trucks, the later pedal-switch/linkage arrangement begins at serial F5D-1501 or F5A-7172; the cold-oil relief valve is not fitted after transmission serial T46M6999.

Hydraulic and load-handling chapters cover the main control valve, flow-divider/relief circuits, chain-driven pump, general gear-pump overhaul and flow testing, steering axle and steering control unit, and Vista two-stage limited-free-lift, two-stage full-free-lift, and three-stage full-free-lift masts. Carriage, side-shift, lift-chain, load-roller, strip-bearing, lift-cylinder, tilt-cylinder, and lowering-control-valve procedures are included. The brake section covers service-brake shoes, the master cylinder and booster, parking brake, system bleeding, pedal adjustment, and booster relief-valve checks.

Two cautions show the level of repair detail. Gear-pump housings must retain their original alignment because incorrect orientation can cause pump failure or accelerated wear. The Perkins Series 1000 chapter identifies a 1995 piston-and-ring change for the normally aspirated four-cylinder engine beginning at serial A------U664793Y; the revised parts are not interchangeable with earlier components and must be changed as a complete engine set.

Document Set and Page Count

The package contains 31 factory PDF sections totaling 723 pages: 300 pages for engines, fuel, and ignition; 103 for the drivetrain; 152 for hydraulics, mast, steering, and brakes; 86 for electrical, charging, starting, instruments, and schematics; and 82 for the frame, cooling system, maintenance, specifications, and fasteners.

This is a compiled section set rather than a single P/N 899784 publication; that number identifies only the 20-page alternator chapter. Other numbered OEM sections are Cooling System P/N 897934, MSTS P/N 897412, Perkins engine P/N 1455747, Lift Cylinders P/N 910119, Tilt Cylinders P/N 910102, Steering Axle P/N 897108, Brake System P/N 897120, Starter P/N 910107, and Metric and Inch Fasteners P/N 910442.
