Hyster Models Covered & Key Technical Specifications

Models: H3.50XL (H70XL), H4.00XL-5 (H80XL), H4.00XL-6 (H90XL), H4.50XL (H100XL), H5.00XL (H110XL)

Sub-models / Variants: Diesel (Perkins 4.2482, Perkins 1004-4 (AA)), Gasoline (GM V-6), LPG (GM V-6), Powershift Transmission (single-speed), Manual Transmission (three-speed, oil clutch)

Model Years: 1990–1999 (1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999)

Serial Breaks (Throttle Linkage): H3.50–5.00XL (H70–110XL), later arrangement from F5D–1501 and F5A–7172.

Serial Breaks (Powershift Transmission): Cold-oil relief valve and spring not installed after transmission serial T46M6999.

Serial Breaks (Perkins 1004-4 (AA)): Revised pistons and rings from engine serial A––––––U664793Y.


  • Engine displacement (GM V-6): 4.3 liter

  • Engine displacement (Perkins 4.2482): 4.06 liter

  • Transmission oil pressure: 1032–1312 kPa (150–190 psi)

  • Coolant system pressure: 88–103 kPa (13–15 psi)

  • Drive axle to frame capscrew torque: 1000 Nm (740 lbf ft)

  • Engine coolant capacity (GM V-6): 15.1 liters

  • Fuel tank capacity: 60 liters

  • Spark plug gap: 0.89 mm (0.035 in)

Hyster Manual Features & Selected Content Preview

Publication Pages
Capacities and Specifications — H3.50XL (H70XL), H4.00XL-5 (H80XL), H4.00XL-6 (H90XL), H4.50XL (H100XL), H5.00XL (H110XL) 8
Periodic Maintenance 44
Frame 13
Metric and Inch Fasteners 8

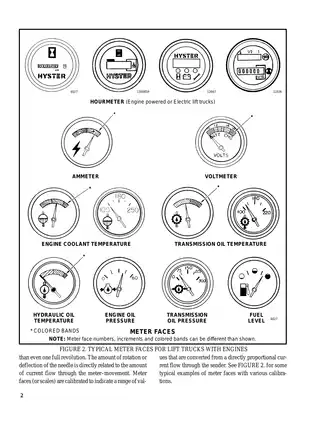

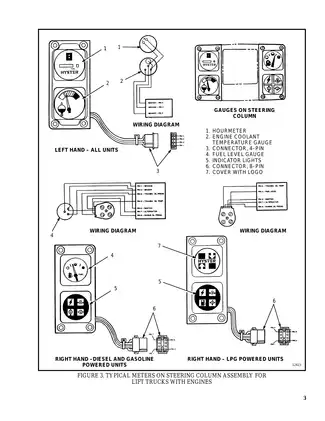

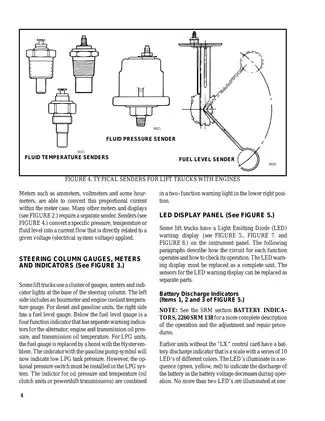

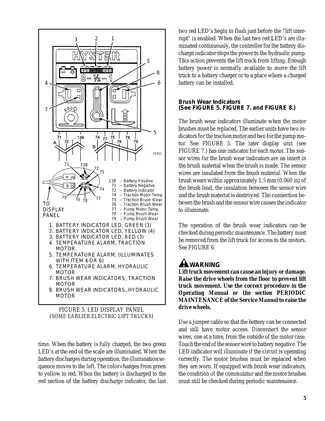

Instrument Panel Indicators and Senders 13
Electrical Warning Devices 4
GM V-6 Engine 35
Perkins Series 1000 Engines — 1004-4 (AA), 1004-4T (AB), 1006-6 (YA), 1006-6T (YB) 91
Perkins Diesel Engines — 1004-42 (AR), 1006-60 (YG), 1006-60T (YH) 117
Cooling System 6
LPG Fuel System 19
Electronic Engine Control: Description and Operation — 2200 SRM 473 16
Electronic Engine Control: Troubleshooting and Repair — 2200 SRM 468 81
Microprocessor Spark Timing System (MSTS) 31
Alternator 15
Starter 8
Single-Speed Powershift Transmission: Description and Operation — 1300 SRM 336 16
Powershift Transmission Repairs — 1300 SRM 337 33
Three-Speed Manual Transmission and Differential — 1300 SRM 335 25
Oil Clutch System — 1200 SRM 334 9
Drive Axle Assembly 7
Speed Reducer and Differential 13
Hydraulic Pump Chain Drive 5
Gear Pump 12
Hydraulic System 8
Main Control Valve 15
Hydraulic Brake System 17
Steering Axle 9
Steering Housing and Steering Control Unit 14
Vista Masts 32
Lift Cylinders 26
Tilt Cylinders — P/N 910102, 2100 SRM 103 12
Electrical Schematic — early/later wiring and hydraulic circuits 14
Electrical Schematic-2 — engine controls, hydraulic circuits, and lighting 14

The truck specifications and maintenance instructions work alongside component repair sections. The GM diagnostic chapter specifically pairs its fault charts with the engine-control operating description and wiring diagrams.

Engine coverage: Perkins 4.2482 information includes specifications, maintenance, and wiring, but no dedicated internal-overhaul chapter. Several component sections also serve related Hyster trucks; the broader engine lists do not establish additional truck coverage.

Text Search, Bookmarks, and Schematic Detail

Search and navigation: Most sections support text search, but text encoding makes searches unreliable in the GM V-6 and Perkins 1004-42/1006-60/1006-60T engine files. Electrical Schematic has searchable captions rather than searchable diagram labels; some oil-clutch and manual-transmission tables also lack searchable text. Bookmarks are present in 32 files; Capacities and Specifications and Electrical Schematic-2 have none. Small schematic labels require zooming, and some labels and thin lines in Electrical Schematic remain faint. The second diagram file has clearer detail when enlarged.

The ZIP contains 34 printable PDFs totaling 790 pages, including one Tilt Cylinders cover and three notes pages.


Engine, Drivetrain, and Mast Repair

These selected repair topics cover part of the contents. Other examples include operator-restraint inspection and wheel and tire service.

  • Engines and cooling: Step-by-step engine removal, cylinder-head and internal-engine repair procedures, plus radiator, thermostat, water-pump, fan, and shroud service.

  • Fuel systems: GM throttle-body injection repair, LPG filter, vaporizer, carburetor and governor service, and Perkins injection-pump installation, timing, and fuel-system bleeding.

  • Transmission and drive systems: Powershift clutch-pack overhaul, torque-converter and manual-transmission service, oil-clutch repair, drive-axle work, speed-reducer and differential adjustment, plus stall tests, pressure tests, and linkage adjustment.

  • Hydraulics, brakes, and steering: Pump chain-drive repair, gear-pump output testing, flow-divider adjustment, main control valve checks, brake-booster and drum-brake service, steering-axle and control-unit overhaul, and bleeding.

  • Mast and load handling: Limited- and full-free-lift Vista mast repair, carriage and side-shift service, lift/tilt-cylinder rebuilding, chain inspection and adjustment, load-roller and strip-bearing work, and mast shimming.

  • Electrical diagnosis: Instrument-panel meters and senders, warning devices, alternator and starter testing, ECM fault charts, ALDL diagnosis, connector and harness repair, and early/later wiring schematics.

  • Workshop reference data: Component torque tables, hydraulic and transmission test pressures, fluid capacities, wear limits, electrical test values, maintenance schedules, mast and linkage adjustments, and troubleshooting tables.

With lifting, pressure-testing, electrical diagnostic, and internal-engine work throughout, these sections are suited to trained lift-truck technicians and equipped repair shops.

Production Changes and Parts Matching

The powershift sections distinguish early and later lubrication circuits and throttle-linkage arrangements, including serial-specific changes to the cold-oil relief components. These distinctions help match the installed transmission to the appropriate drawings and tests.

The GM engine section separates 1995-and-earlier from 1996-and-later cylinder-head and oil-sump procedures, and warns against interchanging parts between model years. Vista mast coverage also separates earlier side-shift carriages from the design introduced in the second half of 1993.

Gasoline, LPG, and Diesel Diagnosis

GM gasoline System Check routines lead into circuit schematics and fault trees for CTS, TPS, governor, MAP, electronic spark timing, and fuel-pump faults. Separate charts address PROM, CalPak, and ECM faults, alongside symptom-based troubleshooting for poor engine operation.

The tool listings identify the HYS1005 scan tool, HYS1003 fuel-pressure gauge, HYS1004 terminal-repair kit, and ALDL key P/N 1338734. The scan-tool coverage includes recording data during intermittent operating faults.

LPG ignition uses the Microprocessor Spark Timing System (MSTS), with HEI and ECM diagnosis; these engines do not use electronically controlled fuel injection.

Perkins sections cover CAV DPA/DPS and Lucas DP200 injection-pump installation and timing. Internal injection-pump repair is referred to specialist service facilities. Illustrated PD- and MS-series tool sheets cover valve, liner, seal, crankshaft, and timing work.

Circuit Diagrams and Reassembly Cautions

The diagram references include 8000 SRM 494/519. The supplied schematics cover GM gasoline/LPG wiring, Perkins 4.2482 and early/later 1004-4 wiring, powershift transmission and oil-clutch circuits, hydraulic systems, and U.S./EEC lighting options.

The brake chapter warns that swapping left- and right-hand adjusters makes shoe clearance increase each time the brakes are applied. The gear-pump section explains how incorrect housing or seal orientation can disrupt oil passages and cause premature wear or pump failure.

Always secure the lift truck with properly rated blocking and depressurize hydraulic lines before beginning any major component teardown.

Examples of Brake and Steering Adjustment Data

The brake adjustment material specifies an automatic adjuster-lever position of 1.5–3.0 mm (0.06–0.12 in) above the adjuster-wheel centerline. The accompanying drawing identifies the checking tool and linkage relationship.

For the hydraulic flow-divider check, the specified steering time is 3.0 seconds from lock to lock at engine speeds above 1200 rpm. Steering time at idle is longer and can vary.
