Hyster E2.00-3.20XM, J2.00-3.20XM, and N30XMH Forklift 2003–2008 Service Manual (P/N 897820, 897638)
1,349 Pages • 46.32 MB • Printable PDFs (ZIP Download)
Hyster Models Covered & Key Technical Specifications
Models: E2.00-3.20XM, E45-65XM, E45-65XM2, N30XMH, N30XMH2, V30ZMD, E45-65Z, J2.00-3.20XM, J40-65XM, J40-65XM2
Sub-models / Variants: E45XM, E50XM, E55XM, E60XM, E65XM, E45-50XM, E45-60XM, J40XM, J50XM, J60XM, J65XM, Short Wheelbase
Model Years: 2003–2008 (2003, 2004, 2005, 2006, 2007, 2008)
Serial Numbers: F108, G108, A210, C210, D210, E210, A216
-
Relief pressure, lift system (E-series): 21.7 ±0.7 MPa (3100 ±100 psi)
-
Relief pressure, lift system (J-series): 21.0 ±0.7 MPa (3000 ±100 psi)
-
Back plate to axle mount capscrew torque: 225 N•m (166 lbf ft)
-
Wheel nut torque (Drive tires): 237 to 305 N•m (175 to 225 lbf ft)
-
Steering tire wheel nut torque: 34 N•m (25 lbf ft)
-
Hydraulic pump displacement: 12 cc/rev to 19 cc/rev
-
Brake fluid capacity: 0.24 liter (0.5 pt)
Hyster Manual Features & Content Preview
This Hyster factory service-manual set contains 30 separate PDF sections totaling 1,349 pages. Primary coverage centers on the E2.00-3.20XM, J2.00-3.20XM, and N30XMH electric lift-truck families, including original XM and later XM2 controller configurations. The repair depth and required hydraulic, lifting, high-current electrical, and legacy diagnostic equipment make the set best suited to experienced lift-truck technicians and properly equipped repair shops.
- Model and build coverage: Covers E2.00-3.20XM (E45-65XM/XM2) [F108], the J2.00-3.20XM family [A216], and N30XMH/N30XMH2 [A210/C210]. Shared mechanical sections also cover E45-65Z [G108] and V30ZMD [D210/E210] configurations.

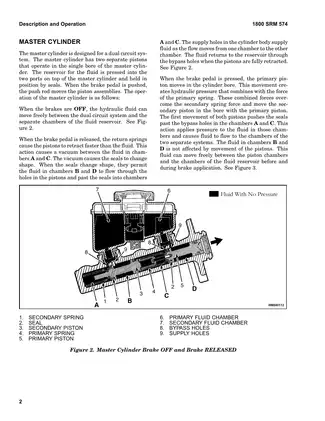

- Brake and drivetrain repair: Includes dual-circuit master-cylinder service, wheel-cylinder and brake-shoe repair, automatic adjuster inspection, parking- and seat-brake adjustment, hydraulic bleeding, drive-axle removal, speed-reducer and differential overhaul, bearing setup, and related troubleshooting.
- Hydraulic and steering systems: Details hydraulic-tank and gear-pump repair, manual control-valve overhaul, relief-valve testing and adjustment, steering-pump and steering-control-unit repair, steering-cylinder service, system air removal, and hydraulic fault isolation.
- Mast and load-handling equipment: Covers two-stage LFL, two-stage FFL, three-stage FFL, and four-stage FFL masts; standard, hang-on sideshift, and integral sideshift carriages; lift and tilt cylinders; header-hose arrangements; chain, carriage, and mast adjustment; and lift/tilt leak checks.
- DC motors and electronic controls: Provides traction, hydraulic-pump, and steering-motor brush inspection, brush replacement, commutator servicing, field and armature tests, motor disassembly and assembly, brush-holder alignment, EV-100ZX SCR controller repair, and SR/SEM and SP controller diagnostics.
- Electrical diagnosis and reference data: Supplies model-specific wiring diagrams, controller schematics, connector views, status-code charts, parameter tables, hydraulic schematics, component-specific torque data, pressure-test specifications, capacities, wear limits, mast-speed data, and fastener-reference tables.
Controller Generations and Computer Diagnostics
Original XM configurations use EV-100ZX SCR traction and pump controls, while later XM2 trucks use SR/SEM traction and SP pump motor controllers. Separate sections cover controller theory, control-card identification, handset and workbench checks, stored status codes, register maps, permitted parameter ranges, contactors, fuses, SCRs, diodes, thermal sensors, and controller replacement.
The computer-diagnostic publications describe the period-correct HYTECH, GE Sentry, and ITW Switches workflows for reading status codes, changing or restoring parameters, saving controller data, and configuring SEM display functions. They identify Hyster adapter/cable kit P/N 1361412, the earlier HYTECH diskette P/N 897702, and later HYTECH software media P/N 1495217. These legacy cables, software, and media are referenced by the manuals but are not included with the PDF archive.
The controller sections warn against substituting register settings from a different truck, motor, voltage, or control-card table. Incorrect current-limit or field-weakening values can alter truck operation and damage the traction motor or controller.
Brake and DC Motor Service Detail

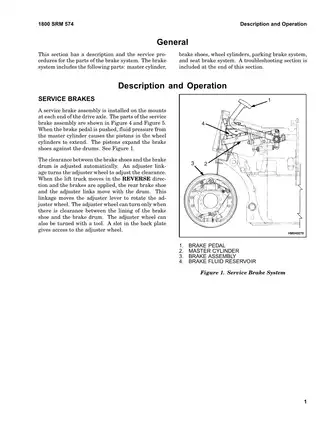

The brake section covers service-brake removal and reassembly, master-cylinder teardown, parking-brake cable and linkage work, pedal and pushrod adjustment, seat-brake and traction-cutoff switch settings, and troubleshooting for pulling, drag, low pedal, and ineffective parking brakes. The right- and left-side automatic adjusters have opposite thread directions; installing them on the wrong sides causes shoe clearance to increase as the brakes operate, reducing braking ability.
DC motor coverage goes beyond brush replacement. It includes commutator-condition charts, brush-spring checks, open- and short-circuit tests, motor timing and brush-holder alignment, and resurfacing criteria. The stoning section identifies an Ideal No. 23-007M brush-seater and commutator stone or equivalent and specifies approximately 85% brush-to-commutator contact. A grooved or otherwise damaged commutator is treated as an armature-out repair requiring suitable motor-shop equipment rather than routine in-truck stoning.
Schematics and Technical Data
Representative drawings include the EV-100ZX SCR Control for Traction Motor Schematic, early- and later-model SR (SEM) Traction Motor Controller Schematics, the SP Pump Motor Controller Schematic, model-specific Electrical Wiring Connector views, the Hydraulic Schematic for E/J2.00-3.20XM, and the Steering System Hydraulic Schematic. Separate truck-wiring, power-cable, lighting, controller-panel, mast-sequence, and exploded component views support repair and fault tracing.

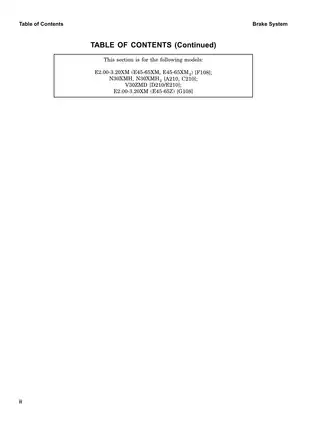

Coverage is section-specific. The G108 and D210/E210 trucks appear primarily in shared brake, frame, drive-axle, hydraulic, mast, and steering publications; the supplied EV-100ZX and SR/SP controller chapters are aimed at the F108, A216, and C210 electrical configurations. Several universal sections list additional Hyster applications because they share the same assemblies, but this archive is not a full shop manual for every secondary model printed on those covers.
PDF Section and Page Breakdown
- Chassis, brakes, and drivetrain: Frame, P/N 897638 / 100 SRM 558 — 35 pages; Drive Axle, Speed Reducer, and Differential, P/N 897067 / 1400 SRM 285 — 21 pages; Brake System, P/N 897669 / 1800 SRM 574 — 40 pages.
- Steering and hydraulics: Steering Axle, P/N 910460 / 1600 SRM 258 — 12 pages; Steering System for Electric Lift Trucks, P/N 897450 / 1600 SRM 485 — 35 pages; Steering Housing and Control Unit, P/N 897493 / 1600 SRM 512 — 27 pages; revised Steering Housing and Control Unit, P/N 1459370 / 1600 SRM 720 — 17 pages; Hydraulic System, P/N 897639 / 1900 SRM 559 — 83 pages; Manual Hydraulic Control Valve, P/N 897642 / 2000 SRM 562 — 26 pages; Tilt Cylinders, P/N 910102 / 2100 SRM 103 — 19 pages.
- Mast systems: Mast Description, P/N 897506 / 4000 SRM 521 — 19 pages; Mast Repairs, P/N 897507 / 4000 SRM 522 — 88 pages; Four-Stage Mast, P/N 897644 / 4000 SRM 563 — 45 pages.

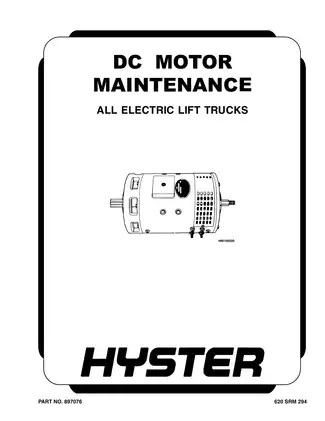

- Motors and truck electrical systems: DC Motor Maintenance, P/N 897076 / 620 SRM 294 — 27 pages; Instrument Cluster, P/N 897495 / 2200 SRM 514 — 23 pages; Electrical System, P/N 897640 / 2200 SRM 560 — 65 pages; Display Panel for SEM Controls, P/N 1494238 / 2200 SRM 942 — 50 pages.
- EV-100ZX controller material: EV-100ZX SCR Motor Controller—Description, Adjustments, Troubleshooting, Repairs, and Theory, P/N 897636 / 2200 SRM 557 — 125 pages; EV-100ZX Parameter Tables, P/N 897820 / 2200 SRM 595 — 33 pages.
- SR/SP controller material: SR/SP Transistor Motor Controllers, P/N 1463732 / 2200 SRM 724 — 96 pages; SR and SP Parameter Tables, P/N 1463744 / 2200 SRM 739 — 65 pages.
- Computer diagnostics: Earlier Troubleshooting and Adjustments with a Computer, P/N 897830 / 2200 SRM 597 — 19 pages; Windows-version Troubleshooting and Adjustments with a Computer, P/N 1494933 / 2200 SRM 947 — 35 pages.
- Electrical and hydraulic diagrams: Electrical Diagrams—EV-100ZX, P/N 897596 / 8000 SRM 551 — 63 pages; Diagrams—Transistor Motor Controllers, P/N 897781 / 8000 SRM 589 — 47 pages; Electrical Diagrams—SR/SP Controls, P/N 1464329 / 8000 SRM 742 — 68 pages.
- Maintenance and reference sections: Industrial Battery, P/N 899648 / 2240 SRM 1 — 19 pages; Metric and Inch (SAE) Fasteners, P/N 910442 / 8000 SRM 231 — 19 pages; Periodic Maintenance, P/N 897577 / 8000 SRM 552 — 81 pages; Capacities and Specifications, P/N 897641 / 8000 SRM 561 — 47 pages.
These procedures involve raised mast assemblies, heavy drivetrain components, pressurized hydraulic oil, lead-acid batteries, and high-current DC circuits. Power isolation, capacitor discharge, approved lifting and blocking equipment, and the safety procedures specified for the applicable truck and assembly are required.
