Case International Magnum Series 7110/7120/7130/7140 Tractor Service Manual

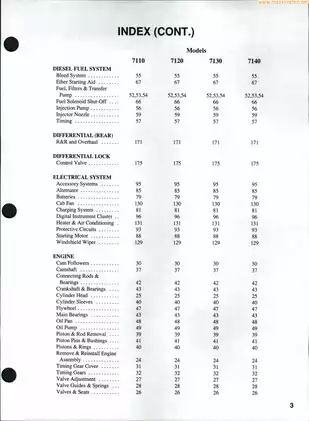

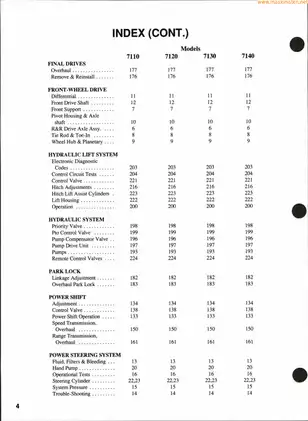

• Model and document coverage: Covers Case/International Magnum 7110, 7120, 7130, and 7140 tractors in a 133-page PDF (source pages 2-134), organized through paragraph 228; I&T manual C-40.
• Engine, fuel, and air systems: Covers engine removal by splitting the tractor, cylinder-head and valve work, timing gears, camshaft, wet sleeves, pistons, crankshaft, Bosch injection-pump timing, injector testing, Holset turbocharger repair, and the 7140 aftercooler.
• Full power-shift transmission repair: Details linkage adjustment, control-valve overhaul, seven-gauge clutch-pressure testing, master-clutch service, speed- and range-transmission disassembly, clutch-pack air checks, optional creeper-drive service, bearing preload, end play, and reassembly checks.
• Axles, brakes, and PTO: Provides procedures for two-wheel-drive front axles and Spicer front-drive units, steering cylinders, rear differential and bevel gears, final drives, wet brakes, park lock, differential lock, and single- or dual-shaft PTO overhaul.
• Hydraulics and electronic hitch: Includes charge- and piston-pump pressure/flow tests, pump and compensator overhaul, priority-valve service, remote-valve repair, hitch fault-code diagnosis, sensor tests, calibration, valve centering, and lift-cylinder/housing overhaul.
• Electrical, cooling, and cab systems: Covers Bosch alternator and Nippondenso starter testing, digital instrument-cluster diagnostics and programming, cooling-system component removal, cab-fan and A/C-clutch circuits, wiper checks, and cab removal.

This is a condensed I&T shop manual rather than a Case IH OEM factory publication. It is suited to experienced mechanics with tractor-splitting stands, lifting equipment, presses, hydraulic test instruments, and the measuring tools needed for internal powertrain work. The manual assumes familiarity with heavy tractor systems and basic shop practice.

Model and Configuration Differences

The 7110, 7120, and 7130 use the turbocharged 6T-830 engine and Robert Bosch PS6A injection pump. The 7140 uses the 6TA-830, a PS6MW pump, and a water-cooled aftercooler with dedicated removal, installation, and bleeding coverage. Transmission sections distinguish 18-forward/2-reverse and 18-forward/4-reverse units; the optional creeper changes these to 24-forward/3-reverse or 24-forward/6-reverse configurations.

Coverage spans two-wheel-drive and Spicer front-drive versions, including their different steering hand-pump and cylinder arrangements. PTO configurations include 540/1000-rpm dual-shaft units available for the 7110 and 7120, plus 1000-rpm single-shaft units for the 7120, 7130, and 7140. Brake packs and external hitch-lift cylinders are separated by model group. The hydraulic pump-drive section identifies early and late parts at P.I.N. AJB0041175.

Diagnostic and Repair Depth

Transmission diagnosis uses dedicated ports and a pressure chart for regulated, master-clutch, odd/even, 1-3-5-reverse, low/medium/high, residual, and lubrication circuits, with checks across every forward, reverse, and creeper position. Internal work covers control spools and check valves, selector-cam timing, clutch air checks, shaft assemblies, clutch packs, preload, end play, and shim selection.

The hydraulic chapters address both sections of the charge pump, the piston pump, compensator, pump drive, steering priority valve, and remote-valve detents. Electronic-hitch coverage adds self-diagnostic codes and circuit tests for module supply, switches, solenoids, hitch-pin sensors, and control potentiometers, followed by control-lever and hitch-position calibration, valve compensation, and free-travel adjustment.

Electrical diagnosis includes battery-drain and charging-output tests, alternator regulator checks, starter and magnetic-switch tests, warning-light and LCD bar-graph troubleshooting, and instrument programming for ground speed, wheel slip, and implement width. This is component- and test-point coverage; the PDF does not contain a complete tractor wiring-diagram package. Heating and air-conditioning material is limited to the shared blower circuit and compressor-clutch circuit test.

Specifications, Tools, and Visual References

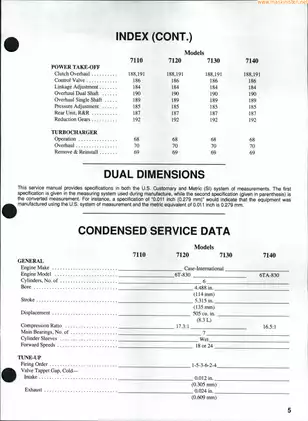

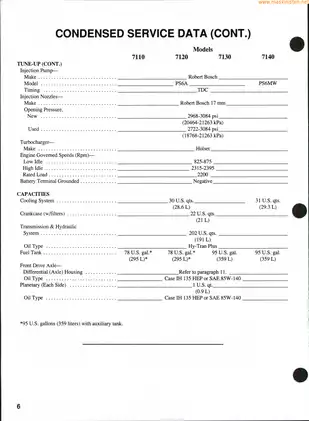

The condensed service data and repair sections provide U.S./metric torque tables, capacities, pressure and flow specifications, clearances, wear limits, spring test loads, bearing preload and end-play data, shim-selection procedures, and electrical test values. Named tools include CAS-10749 split stands, CAS-1768 for front-hub rolling torque, the CAS-10753 seven-gauge pressure-test bar, CAS-1902-1 for bevel-pinion setting, CAS-10280 for hydraulic flow testing, and CAS-2026 for hitch-valve centering.

Illustrations extend through Fig. 193. Useful examples include the front-drive limited-slip differential exploded view, transmission clutch-pressure chart, assembled speed- and range-transmission section views, PTO brake/clutch pressure chart, electronic-hitch wiring and component-location view, and hydraulic pump and priority-valve exploded views.

Repair Cautions and Safety

The turbocharger chapter warns that resting components on the compressor or turbine blades can damage them and identifies the compressor-wheel nut as left-hand thread. Injector nozzle valves and tips are matched sets; mixing them or allowing a tip to turn with the cap nut can damage the nozzle assembly.

Tractor splitting, cab and axle removal, hydraulic pressure tests, and injector testing require appropriate stands, lifting equipment, and controlled pressure handling. The manual specifically warns that injector spray can penetrate skin.
