Snowmobile Models Covered & Key Technical Specifications

Models: MX Z 600 HO SPORT, MX Z 600 HO X, MX Z 600 HO, MX Z 600 HO 007 SPECIAL EDITION, MX Z 800 SPORT, MX Z 800 X, MX Z SPORT 600 HO, MX Z SPORT 600 HO (R), MX Z X 600 HO (R), MX Z SPORT 800, MX Z SPORT 800 (R), MX Z X 800 (R), MX Z (E) 007 SPECIAL EDITION 600 HO (R), MX Z (E) SPORT 600 HO (R), MX Z (E) SPORT 800 (R), MX Z (E) X 800 HO (R)

Models & Model Codes:

MX Z SPORT 600 HO — Black-Yellow (U.S./CDN): 2283, 2285; Black-Black (U.S./CDN): 2284, 2286.

MX Z SPORT 600 HO (R) — Black-Yellow (U.S./CDN): 2289, 2291, 2293, 2287; Black-Black (U.S./CDN): 2288, 2290, 2292, 2294; Black-Black (EUR): 2612; Orange-Yellow (EUR): 2649.

MX Z X 600 HO (R) — Black-Black (U.S./CDN): 2256, 2258; Orange-Yellow (U.S./CDN): 2255, 2257.

MX Z SPORT 800 — Black-Yellow (U.S./CDN): 2259, 2265; Black-Black (U.S./CDN): 2260, 2666.

MX Z SPORT 800 (R) — Black-Black (U.S./CDN): 2665, 2274, 2268, 2663, 2270, 2272; Black-Yellow (U.S./CDN): 2267, 2269, 2271, 2273, 2664.

MX Z X 800 (R) — Black-Black (EUR): 2648; Orange-Yellow (EUR): 2611; Orange-Yellow (U.S./CDN): 2654, 2228, 2230; Black-Black (U.S./CDN): 2231, 2229, 2655.

MX Z (E) 007 SPECIAL EDITION 600 HO (R) — Sylver-Black (U.S./CDN): 2675; Sylver-Black (EUR): 2678.

MX Z (E) SPORT 600 HO (R) — Black-Black (U.S./CDN): 2298, 2305, 2300, 2296, 2659, 2661; Black-Yellow (U.S./CDN): 2299, 2304, 2297, 2295; Orange-Yellow (U.S./CDN): 2660, 2658.

MX Z (E) SPORT 800 (R) — Black-Black (U.S./CDN): 2282, 2276, 2278, 2280, 2281, 2669; Black-Yellow (U.S./CDN): 2277, 2279, 2281, 2668, 2275.

MX Z (E) X 800 HO (R) — Black-Black (U.S./CDN): 2653, 2651, 2657; Orange-Yellow (U.S./CDN): 2652, 2650, 2656.

Sub-models / Variants: REV Series, U.S./CDN, EUR, Black-Yellow, Black-Black, Orange-Yellow, Sylver-Black

Engines: MX Z 600 HO models: 593 HO; MX Z 800 models: 793.

Drive pulley: TRA III on all REV Series models.

Driven pulley: HPV27 VSA on the U.S./Canadian MX Z 600 HO R X/SPORT, MX Z 600 HO ER X/SPORT/007 SPECIAL EDITION, and MX Z 800 R/ER X/SPORT configurations.

Model Year: 2003


  • Battery system voltage: 12 V

  • Magneto output capacity: 360 W

  • Chaincase oil capacity: 250 mL

  • Standard fastener torque reference: 10 Nm for M6 grade 8.8 bolts

Snowmobile Manual Features & Selected Content Preview

This Bombardier shop manual, P/N 484 200 046, covers the listed 2003 Ski-Doo MX Z 600 HO and MX Z 800 REV Series Sport, X, and 600 HO 007 Special Edition models, including rewind-start, electric-start, and RER configurations.

PDF Search, Section Bookmarks, and Wiring Detail

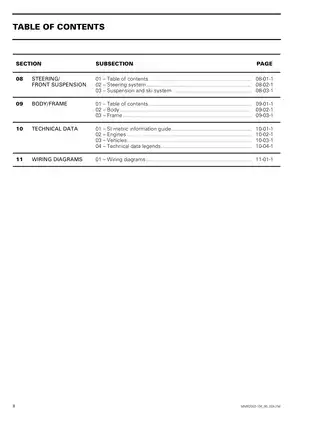

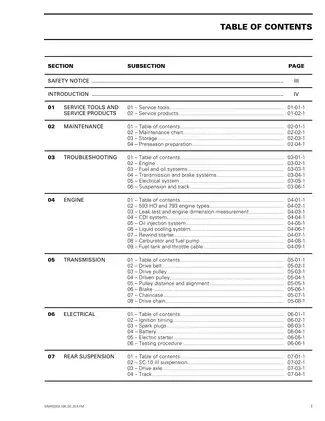

Search and diagram navigation: The main chapters support text search, although some illustration labels and the seven final wiring-diagram pages are not searchable. Embedded bookmarks open the contents and all 11 main sections. Small pin numbers and wire-color labels on the wiring sheets require zooming.

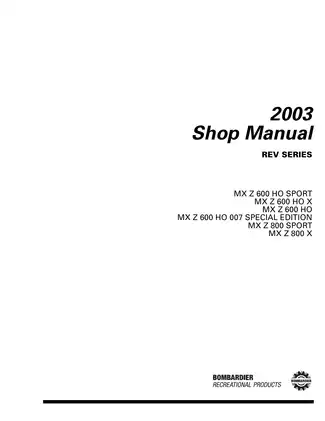

One printable, English-language PDF contains 300 pages: 18 pages of front matter, including the cover, introduction, and two publication-report pages; 275 pages of service information and wiring guidance; and seven wiring-diagram pages.


Engine Overhaul, Clutch Service, and Electrical Diagnosis

The following selected coverage highlights major workshop tasks rather than reproducing the full contents. Other topics include storage, preseason preparation, and service-product references.

  • Engine repair: Step-by-step procedures for 593 HO and 793 engine removal, top- and bottom-end repair, RAVE and reed-valve service, leak testing, and dimensional inspection.

  • Fuel, oil, and cooling: Carburetor synchronization, DPM manifold testing, fuel-pump verification, oil-injection adjustment, cooling-system testing and refilling, and fuel-tank and throttle-cable service.

  • Clutches and chaincase: TRA III drive-pulley calibration, Formula VSA and HPV27 VSA driven-pulley service, belt setup, pulley alignment, chaincase assembly, ratio changes, and chain adjustment.

  • Hydraulic brakes: Troubleshooting, pad replacement, caliper and disc removal, countershaft-bearing work, and system bleeding.

  • Suspension and steering: SC-10 III removal and assembly, HPG T/A shock servicing, drive-axle and track work, RAS A-arm repair, ball-joint replacement, and ski alignment.

  • Electrical diagnosis: MPEM calibration, DESS, DPM, RER, starter, ignition, charging, lighting, heating-element, and accessory tests, supported by diagnostic charts and wiring diagrams.

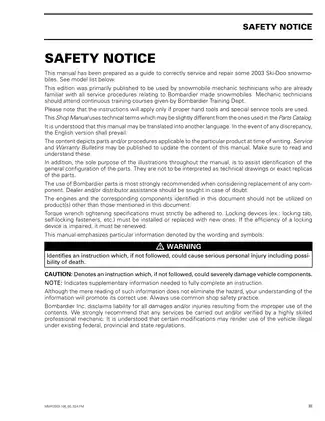

This manual was written primarily for snowmobile mechanics already familiar with Bombardier service procedures and equipped with the required hand tools and special service tools.

Model Selection and Workshop Planning

The introduction identifies machines by factory model number, market, and equipment notation. These distinctions help match MPEM calibration, starter circuits, reverse tests, and wiring diagrams to the vehicle before repair work begins.

Coverage is limited to the listed REV models. Parts ordering refers to the Parts Catalog; warm-up, post-rebuild break-in, and rear-suspension ride adjustment refer to the Operator’s Guide.

Engine Inspection and Internal Repair

The engine chapters distinguish work possible with the engine installed—including cylinder, piston, RAVE, reed-valve, pump, and magneto removal—from bottom-end repair requiring engine removal.

Inspection procedures address cylinder-head warpage, cylinder taper and out-of-round, combustion-chamber volume, piston and ring clearances, crankshaft deflection, end play, and alignment. The Engine Leak Verification Flow Chart supports fault isolation before teardown.

Assembly cautions: Piston markings and mono-hook circlip orientation receive specific attention; a failed circlip installation requires a new circlip. The manual also links cylinder-base gasket selection to combustion-chamber volume and warns that incorrect thickness can cause detonation and severe engine damage.

Fuel Delivery, Lubrication, and Cooling

Separate procedures cover the Denso trigger-coil CDI system, rewind-starter repair, oil-system leak testing, injection-pump adjustment, and cooling-system inspection and refilling.

Fuel-system coverage distinguishes DPM and non-DPM arrangements and addresses heated carburetors. It includes manifold leak testing and pump-valve and diaphragm checks; manual-start and electric-start machines use different fuel pumps.

Pulley Alignment, Chain Drive, and Brakes

The Pulley Alignment and Distance Specifications Chart accompanies the belt-height, deflection, and alignment procedures. Pulley distance is nonadjustable on REV models, so an incorrect measurement calls for investigation of alignment, engine mounts, and torque-rod contact.

Chaincase coverage includes sprocket inspection, gear-ratio changes, lubrication, and silent-chain identification. Hydraulic brake work extends to disc and countershaft removal, but damaged calipers and master cylinders are replaced as complete assemblies.

MPEM Calibration and Electrical Fault Tracing

Calibration checks and changes use the Vehicle Communication Kit with B.U.D.S. or the MPEM programmer. Identical stamped MPEM part numbers do not establish interchangeability because calibration programs can differ by model.

Electrical references include the Ignition System Diagnostic Flow Chart, Charging System Diagnostic Flow Chart, connector-housing cutaways, and the 2003 REV Electric and 2003 REV Manual wiring diagrams. Battery testing, starter repair, ignition timing, and circuit-specific measurements accompany these references.

Suspension, Steering, and Body Work

SC-10 III exploded views support rear-suspension disassembly and assembly. HPG T/A shock procedures address the internal floating piston, shim stacks, oil filling, nitrogen charging, and post-rebuild checks.

Drive-axle and track work includes sprocket synchronization, bearing service, installation, tension, and alignment. Front-end procedures cover handlebar and steering-column adjustment, ski toe-out, ball joints, front shocks, and heated-grip removal and installation.

Body and frame material addresses harness routing, plastic identification and repair-product compatibility, aluminum-frame welding restrictions, and riveted component replacement. Hood repair is referred to a specialist, and polycarbonate windshields must not be repaired.

Special Tools and Factory Reference Tables

Tool references include the engine-removal hook P/N 529 035 829, spark-plug lift ring P/N 529 035 830, REV pulley alignment bar P/N 529 035 831, and MPEM programmer kit P/N 529 035 878.

REV ball-joint tools P/N 529 035 873 through 529 035 876 and the T/A shock gas-fill kit P/N 503 190 102 are also identified.

Reference tables supply engine wear limits, carburetor and ignition data, clutch calibration, chain ratios, belt and track specifications, suspension data, capacities, electrical test values, component torques, and general metric fastener torques.

Because the procedures include rotating track and clutch tests, fuel and brake-fluid handling, high-pressure nitrogen shock service, and electrical diagnosis, support the snowmobile securely and follow the manual’s warnings and standard workshop safety practices.

Examples of Engine Leak-Test and End-Play Specifications

For the 593 HO and 793 engines, the leak-test section specifies a pressure-hold check at 34 kPa (5 PSI) for three minutes, followed by leakage-isolation procedures.

Crankshaft inspection lists an end-play range of 0.10–0.30 mm (.004–.012 in) for both engine types. The manual identifies this as a verification range for a nonadjustable dimension.
