Ski-Doo 2005 REV, RT & Tundra/Skandic Manual Collection (P/N 484 200 064)

Use the operator supplements with their matching ZX/REV or Tundra/Skandic base guides for model-specific changes to controls, maintenance and operating information. The shop manuals provide repair procedures, while the racing handbook develops competition setups and modifications.

Coverage limits: Dedicated shop-manual coverage follows the model-code lists above. Mini Z and Legend have operator-guide coverage; MX Z X 440 material is provided through its operator supplement and the racing handbook. The original CD menu lists a specification booklet that is not included in this download.

The MX Z X 440 operator supplement and racing handbook give different race-fuel and coolant specifications, so their setup data must be read in the context of the particular publication and racing configuration.

Text Search, Chapter Bookmarks and Wiring Detail

Search and drawing detail: The manuals have searchable body text and embedded chapter bookmarks. Some cover lettering and selected wiring sheets are outside text search. Small wiring labels require zooming, and some original CD-menu links lead to unavailable files.

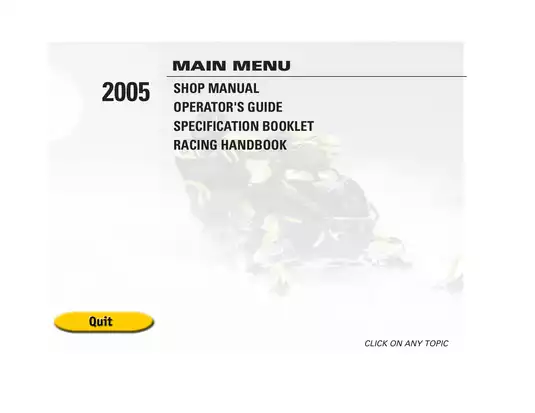

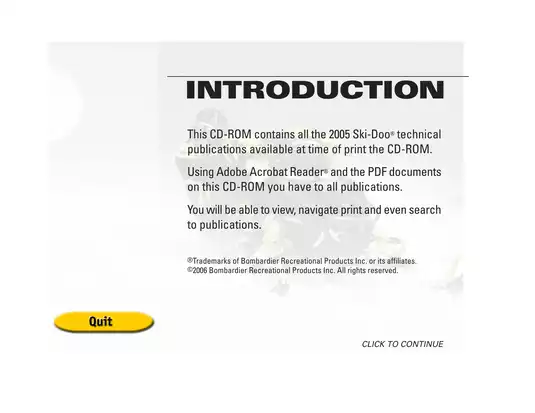

The ZIP download contains 13 printable PDFs totaling 2,936 pages, including 21 cover pages and the six-page CD introduction/menu. Original preliminary pages, warranty forms, notes and annexes are included in those totals.

Engine Overhaul, Electronic Diagnosis and Race Setup

These highlights present a selection of the covered work, rather than a complete table of contents. Additional topics include storage preparation and body/frame repair.

• Two-stroke engine repair: Step-by-step removal, disassembly, inspection and assembly procedures, with leak testing, piston and cylinder measurements, crankshaft checks and cooling-system service.

• Four-stroke engine work: Expedition V-1000 cylinder-head, camshaft, hydraulic-lifter, crankshaft and crankcase service, supported by lubrication and cooling-system procedures.

• Fuel and engine management: Carburetor repair and synchronization, DPM testing, Power TEK and SDI diagnosis, ECM checks and B.U.D.S. fault-code procedures.

• Clutches, driveline and brakes: Pulley service and alignment, belt inspection, chaincase and utility-gearbox repair, drive-axle work, track adjustment and brake servicing.

• Suspension and steering: SC-3, SC-4 and SC-10 III service, RAS inspection, HPG shock rebuilding, spring selection, bump-steer measurement and ski alignment.

• Electrical fault finding: Ignition, charging and starting-system tests, DESS and cut-out switch checks, electronic reverse diagnosis, connector references and model-specific wiring diagrams.

• Competition preparation: MX Z X 440 ignition and Holeshot information, 800 Mod component specifications, gearing, shock calibration worksheets and race-preparation references.

The shop manuals are written for technicians already familiar with BRP service procedures, and the racing modifications call for highly skilled racing mechanics.

Two-Stroke and 4-TEC Engine Repair

The engine material distinguishes the 377/552 fan-cooled families from the 593 HO/793 HO liquid-cooled engines. Internal work includes crankcase separation, magneto service, oil-injection checks, rewind-starter repair and dimensional inspection.

The RT shop manual adds internal 995 SDI engine service, including top-end and bottom-end work, E-RAVE components and counterbalance-system inspection. It refers counterbalance-drive gear and inner-bearing replacement to a specialized shop.

For the Expedition V-1000, the utility shop manual covers the Rotax 1004 4-TEC engine’s cylinder heads, camshaft timing gears, hydraulic lifters, dry-sump lubrication and crankshaft/drive gears.

Crankcase halves are factory-matched pairs, and Nikasil cylinders cannot be conventionally rebored; mixing halves or applying an unsuitable reboring method can damage the engine.

Fuel Metering, ECM Diagnosis and Electrical Tests

Mikuni VM/TM coverage includes cleaning, inspection, float-level adjustment, throttle and choke cables, synchronization and fuel-pump checks. The racing application tables also identify TM40, TMX 34/TMX 40, TMS 38 and Dell’Orto configurations.

Power TEK, SDI and 4-TEC sections distinguish their control systems, sensors and diagnostic procedures. VCK/B.U.D.S. material covers fault-code interpretation, component activation, ECM replacement and required resets; the documented electronic tests require the specified diagnostic equipment.

The electrical material extends to ignition timing, MPEM programming, charging circuits, starter components, heating elements and accessories. Drawing examples include the REV Power TEK Electric Start, Mach Z RT/Summit RT and Expedition V-1000 TUV wiring diagrams.

Listed diagnostic equipment includes engine leak tester 861 749 100, VCK 529 035 981, MPEM programmer 529 035 878 and B.U.D.S. power harness 529 035 997.

Clutching, Brakes and Utility Gearboxes

Clutch material differentiates TRA III, TRA IV and TRA V applications, Formula VSA, HPV27 VSA and TEAM secondary-clutch work. It covers calibration, belt height and deflection, pulley alignment and troubleshooting, alongside chaincase, brake and track procedures.

The utility manual adds gearbox removal, internal disassembly and assembly for the applicable Skandic and Expedition TUV configurations. Its neutral-function checks connect vehicle creep with idle speed, belt selection, belt deflection and pulley alignment, helping distinguish an engine setting from a drive-system fault.

Reference illustrations include an Engine Leak Verification Flow Chart and model-specific Pulley Alignment and Distance Specifications Charts.

Suspension Calibration and Competition Packages

Chassis preparation explains how limiter straps, spring load, shock damping and suspension geometry affect ski pressure, traction, weight transfer and cornering. Spring tables identify part numbers, rates, dimensions and color codes; steering material addresses camber, bump steer and toe-out.

HPG T/A service includes floating-piston measurements, C-36/C-46 rebuilding, shim-stack changes, gas filling and calibration worksheets. The tool references identify engine removal hook 529 035 829 and HPG shock holding tool 529 035 769.

The racing handbook documents the 453-powered MX Z X 440’s programmable ignition curves, Holeshot function, clutch and chaincase changes, track construction and SC-4 suspension. Its 793-based 800 Mod material includes RAVE and ignition components, carburetion, clutching, gearing, exhaust hardware, parts lists, a piston-position chart and installation drawings.

Incorrect race-fuel/ignition-curve selection can damage the engine, while neglecting the separate water-pump gear lubrication requirement after the 800 Mod oil-injection changes risks pump-drive damage.

A dedicated 2004 MX Z X 440 update section accompanies preparation guidance for sno-cross, hillcross, hill climbing, drag racing, speed runs and oval racing. Spare-parts guidance, fuel/oil charts, stock-class preparation, ISR-filed engine specifications, a transmission tuning sheet and a racer log support competition planning.

Pressurized shocks, rotating clutches and raised-track work require secure support and appropriate protective equipment. The handbook also warns that racing modifications void the vehicle warranty and may restrict use to sanctioned events.

Race-Engine Torque Preview

For the 2005 MX Z X 440 Racing with the 453 engine, the handbook’s assembly specifications list cylinder-head nuts/screws at 29.0 ± 1.0 N·m and the magneto ring nut at 125.0 ± 5.0 N·m.
