Toyota Tercel 1995–2000 Repair Manual Set (P/N RM440U)

Use the factory manual for workshop diagnosis and repair, the companion reference for procedures indexed by model or engine, and the owner’s manual for controls, restraints, driving, roadside emergencies, and routine care.

The companion reference covers selected jobs by application. Toyota directs full internal automatic-transaxle overhaul to two separate unit manuals, RM386U and RM431U. The included wiring diagrams cover individual systems and diagnostic circuits.

PDF Search, Bookmarks, and File Layout

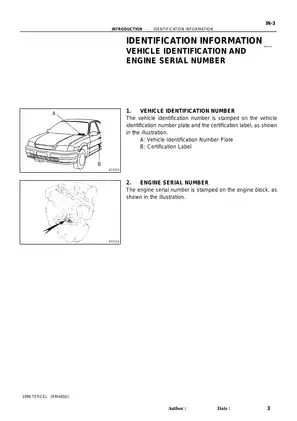

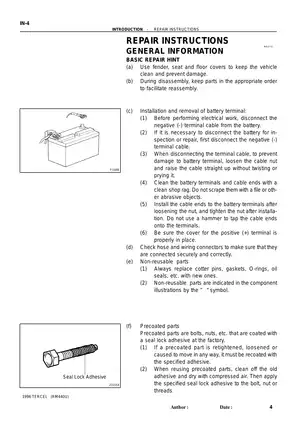

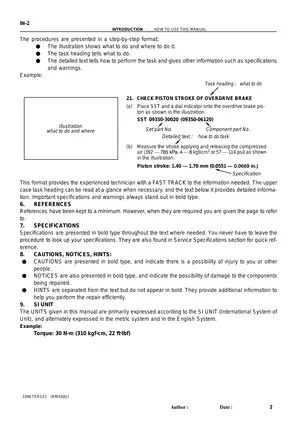

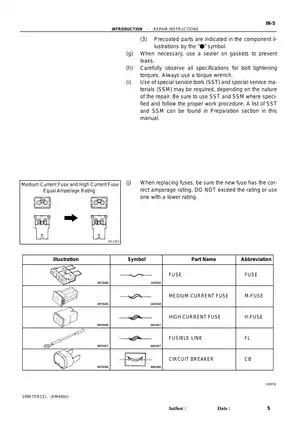

Text search and navigation: The Toyota repair and owner’s manuals have searchable text and embedded bookmarks. The factory bookmarks are named by section. The owner’s manual bookmarks use file names. The companion chapters have searchable text, with an image-based index and some tables and diagram labels outside text search. The companion PDFs have no embedded bookmarks. Small labels in the factory diagrams and the companion oxygen-sensor schematics are readable when enlarged. Some cooling-fan wire labels remain soft at higher zoom.

The ZIP contains 1,908 pages across 14 printable PDFs. The total includes seven index pages, two introductory pages, the owner’s quick-index page, and the 52 chassis-electrical pages repeated at the start of the 99-page drivetrain file. Excluding that repeated section leaves 1,856 pages.

Engine Rebuild, Fault Diagnosis, and Chassis Service

The highlights below are a selection from the set. Other examples include maintenance reminder resets and power-steering pump inspection.

• 5E-FE engine repair: Engine removal, timing-belt service, valve-clearance checks, cylinder-head and cylinder-block disassembly, internal inspection, reassembly, and adjustment.

• Engine diagnostics: OBD II trouble codes, freeze-frame data, check mode, fail-safe charts, ECM terminal checks, and active tests.

• Clutch and transaxles: Manual transaxle shaft and differential repair, automatic transaxle testing, clutch service, and model-specific transmission removal.

• Fuel and cooling systems: Fuel pump and injector service, oxygen-sensor tests, water-pump replacement, and electric cooling-fan troubleshooting.

• Chassis and body: Alignment, hubs, suspension joints, hydraulic and parking brakes, steering, ABS, SRS, body electrical diagnosis, and heater and A/C repair.

The workshop material suits technicians familiar with circuit testing, precision measurement, and Toyota special service tools. The owner’s manual covers the checks and controls a driver uses in everyday operation.

Tercel Engine and Electrical Diagnosis

Engine mechanical: The factory manual pairs compression and valve-clearance checks with timing-belt service, cylinder-head and block teardown, and lubrication and cooling procedures. The MFI and emissions chapters cover the pump, injectors, pressure regulator, throttle body, idle-air control, engine sensors, EGR, EVAP, and PCV.

Fault isolation: The engine diagnostic charts connect trouble codes and freeze-frame conditions with circuit tests and ECM terminals. For example, the crankshaft position sensor chart gives a technician the circuit and ECM connections to check before deciding whether the sensor or its wiring needs attention. Separate charts cover ABS, SRS, theft deterrent, and power door locks. The manual also covers ignition, starter, and charging-system diagnosis.

Transaxles, Brakes, and Body Systems

Transaxles: Manual sections include the shafts, shift/select mechanism, and differential. The automatic sections cover stall, time-lag, hydraulic, and manual-shift tests, plus removal, torque-converter and drive-plate checks, valve-body and governor service, oil seals, and shift-lock diagnosis.

Chassis and cabin: The factory chapters cover drive shafts, alignment, wheel hubs, suspension, brakes, and steering. Body sections cover lights, wipers, windows, instruments, doors, glass, seats, and panels. A/C diagnosis and component service include the compressor and clutch, evaporator, heater core, expansion valve, receiver, condenser, switches, relays, and fans.

Companion Procedures by Application

Engine and fuel: The reference adds engine assembly removal, cylinder-head and manifold work, camshafts, crankshaft seals, oil pans and pumps, timing belts and chains, valve lash, and accessory belts. Illustrations include the 5E-FE cylinder head, 1ZZ-FE timing-chain and front-cover alignment, and 2JZ-GTE turbocharger. The piston and ring section also shows 3S-GTE ring positioning. Driveability and fuel sections include meter and oscilloscope checks for oxygen sensors and service for pumps, filters, and injectors.

Drivetrain and chassis: Procedures include Supra manual and automatic transmission removal, clutch hydraulic bleeding, halfshaft removal, CV-joint overhaul, steering rack removal, and service for struts, springs, shocks, control arms, ball joints, wheel bearings, and brakes. Illustrations show rack-and-pinion and hub assemblies. Cooling-fan diagrams DIA. 70–78 are grouped by application.

Workshop precautions: Incorrect camshaft and crankshaft indexing can cause piston-to-valve contact on interference engines. The CV-joint sections identify where handling can damage rollers, boots, or the ABS sensor rotor. Follow the manual’s precautions for pressurized fuel, SRS isolation, refrigerant recovery, and lifting or supporting the engine and transaxle.

Tools and Sample 5E-FE Inspection Limits

The factory manual lists Toyota special service tools and materials alongside the work that uses them. Examples include the valve-guide tool set 09201-10000, EFI fuel-pressure gauge 09268-45012, ABS actuator checker 09990-00150, and SRS deployment tool 09082-00700. The reference tables include fluid capacities, brake specifications, cylinder-head tightening patterns, and maintenance intervals.

Cold valve clearance: The factory manual specifies 0.006–0.010 in. (0.15–0.25 mm) at the intake and 0.012–0.016 in. (0.31–0.41 mm) at the exhaust. The clearances are used to determine replacement shim thickness.

Cylinder compression: For the 5E-FE test at normal operating temperature, with the throttle fully open and cranking speed at least 250 rpm, the factory manual gives a minimum of 142 psi (980 kPa) and a maximum cylinder-to-cylinder difference of 14 psi (100 kPa).
