Cessna Centurion 210K, T210K, 210L & T210L Service Manual, 1970–1976 (P/N D2004-13)

646 Pages • 1 Printable PDF (English) • Download

5.0starstarstarstarstar(1)
$25.80 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Cessna Models Covered & Key Technical Specifications

Models: 210, T210 Centurion

Sub-models / Variants: Centurion (210K, 210L), Centurion II (210K from S/N 21059352, 210L), Turbo Centurion (T210K, T210L), Turbo Centurion II (T210K from S/N 21059352, T210L)

Model Years: 1970–1976 (1970, 1971, 1972, 1973, 1974, 1975, 1976)

Serial Numbers: 210K / T210K — 21059200–21059351, 21059352–21059502. 210L / T210L — 21059503–21059719, 21059720–21060089, 21060090–21060539, 21060540–21061039, and 21061040 and on (within the listed model years).

Serial Break (landing gear): Engine-driven hydraulic system through 21059502. Hydro-electric power pack beginning with 21059503.


  • Gross weight: 3800 lb

  • Fuel capacity: 90 gal (89 gal usable)

  • Engine models: Continental IO-520-L (210K, 210L), Continental TSIO-520-H (T210K, T210L)

  • Propeller: 82-inch (2-blade) or 80-inch (3-blade) McCauley constant-speed

  • Main wheel tire pressure: 55 psi

  • Nose wheel tire pressure: 50 psi

  • Nose gear strut pressure: 90 psi (strut extended)

  • Landing gear: Retractable, hydraulically-actuated tricycle gear

Cessna Manual Features & Selected Content Preview

This Cessna service manual (P/N D2004-13) covers the 1970–1976 210K, T210K, 210L, and T210L Centurion series, including the Centurion II, Turbo Centurion, and Turbo Centurion II configurations. This edition incorporates Change 4, dated October 1, 1975.

Chapter Bookmarks and Diagram Readability

Navigation and diagram detail: Embedded bookmarks open the service chapters. The legacy Menu and Toolbar Help entries are inactive. Text search is limited to the blank-page notices. Small component labels, terminal identifiers, and wire tables require zooming.

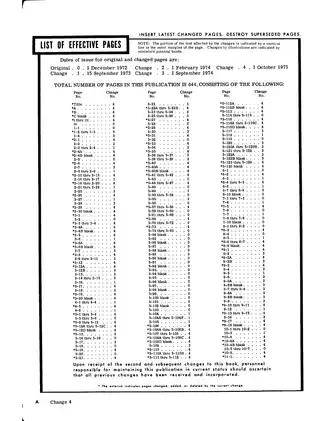

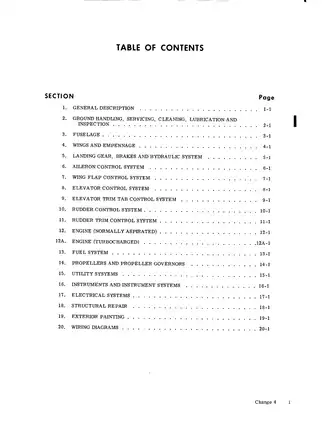

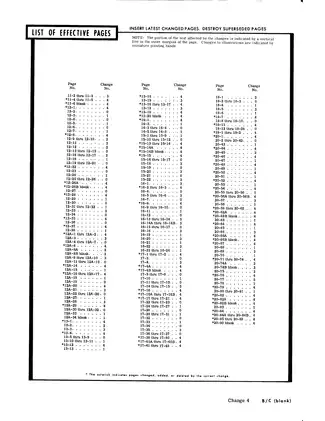

The download contains one printable, 646-page PDF in English. The total includes the cover, two pages listing effective pages, the contents page, the model cross-reference, the foreword, the maintenance and safety notes, and 42 intentionally blank pages.


Landing Gear, Engine and Airframe Service

These selected topics cover major shop procedures. The manual also covers emergency locator transmitter battery service and inertia-reel harnesses.

  • Landing gear and hydraulics: Gear and door rigging, actuator repair, hydraulic power pack bench testing, pressure adjustments, and troubleshooting for both hydraulic configurations.

  • Wheels and brakes: Cleveland and McCauley wheel service, wheel-bearing repacking, brake bleeding, main-wheel alignment, and nose gear shimmy dampener repair.

  • Engine and propeller service: Step-by-step engine removal and installation, fuel-injection diagnosis, magneto timing, turbocharger control checks, and McCauley propeller governor adjustments.

  • Flight controls: Aileron, flap, elevator, and rudder rigging, plus elevator trim tab free-play inspection, electric trim adjustment, and simulated air-load testing.

  • Electrical systems and instruments: Charging-system troubleshooting, electrical load analysis, pitot-static leak testing, instrument-panel circuits, and system-specific wiring diagrams.

  • Airframe repair and inspection: Fuselage, wing, and empennage repair criteria, illustrated skin and spar repairs, control-surface balancing, and periodic inspection charts.

  • Utility systems: Heating and ventilation troubleshooting, wing and propeller deicing checks, and oxygen-system purging, functional testing, and leak testing.

The manual serves as a reference for experienced aircraft mechanics and provides step-by-step procedures for mechanics with less experience.

Landing Gear, Brakes and Hydraulic Tests

The landing gear chapter uses separate schematics and troubleshooting charts for the engine-driven hydraulic system through S/N 21059502 and the hydro-electric system beginning with S/N 21059503. This helps mechanics match gear or door sequencing faults to the correct tests and components.

Exploded views show uplocks, downlocks, door actuators, manifolds, and the emergency hand pump. The Power Pack Bench Test Harness Schematic Diagram identifies the SK210-42 harness used in bench testing, which includes valve and handle-release checks.

Hydro Test unit instructions cover system and component leak testing. The manual warns that excessive filling pressure can damage the power pack reservoir seals.

Engine, Fuel System and Propeller Service

Separate sections cover the Continental IO-520-L and turbocharged TSIO-520-H. The Fuel Injection Schematic accompanies service procedures for fuel-air control units, fuel manifold valves, injection pumps, and discharge nozzles. The Turbocharger System Schematic supports controller and wastegate actuator troubleshooting and operational checks.

The manual covers propeller removal, installation, damage assessment, and governor-control rigging. Major engine repairs and engine, accessory, and propeller overhaul require separate manufacturers’ publications.

The airframe fuel-system chapter covers integral fuel bay leak classification, sealing, and testing. It also explains auxiliary fuel pump circuit differences and flow adjustment.

Airframe, Flight Controls and Inspections

Ground handling, cleaning, and lubrication procedures come with jacking details, reference station diagrams, and servicing charts. The inspection section covers 100-hour inspections and explains Progressive Care program selection. Progressive Care uses separate manuals and forms.

Airframe chapters cover cabin doors, windows, upholstery, and seat installations. Structural repair guidance addresses stringer and rib damage as well as skin and spar damage. The Control Surface Balancing illustrations support checks after repair or painting.

Flight-control chapters provide cable-tension settings, surface-travel data, and wear limits. They also cover replacement of the flap motor, transmission, or coupling. The installation torque table distinguishes steel-nut thread sizes and types and specifies the applicable thread conditions.

Electrical, Instruments and Utility Systems

The electrical chapter uses the same serial break as the landing gear chapter to distinguish the 14-volt and 28-volt supply systems. The wiring groups are labeled 12-volt and 24-volt. Coverage includes split bus bars, alternator regulation, lighting, and warning circuits.

Instrument service covers wet and dry vacuum systems and fuel-quantity calibration. The Static System Test Equipment illustration shows the leak-test setup. Applying compressed air to connected vacuum-system lines can damage the gyros.

Utility coverage includes deice boot repair, propeller deicing timer checks and brush alignment, and oxygen-system component service. Nav-O-Matic autopilot and electronic communications and navigation equipment are covered in separate publications.

A Look at Main-Wheel Alignment Data

For the 210 and T210, the aircraft specifications list 0 to 0.06 in. of main-wheel toe-in and 4° ± 1° 30′ of camber. The wheel-alignment figure explains how these tolerances with both the cabin and fuel tanks empty relate to alignment at gross weight.

Always consult a certified aviation mechanic before servicing this equipment, particularly the landing gear and flight controls. This documentation is an informational reference.
