1974 Cessna 210K / T210K / 210L / T210L Illustrated Parts Catalog (P/N P523-12-RAND-1000–10/74)

Cessna’s September 1, 1974 illustrated parts catalog covers the 1970–1975 210K, T210K, 210L, and T210L Centurion family, including Centurion II, Turbo Centurion, and Turbo Centurion II configurations. The edition carries print code P523-12-RAND-1000–10/74.

• Airframe and cabin: Exploded parts illustrations identify wing structures, fuselage sections, empennage components, doors, seats, and interior trim, with their related attaching hardware.

• Engine and turbocharger: Continental engine installations and accessory listings cover induction components, turbochargers, exhaust systems, oil coolers, and propeller governor assemblies.

• Landing gear and hydraulics: Parts breakdowns cover hydraulic power packs, emergency hand pumps, gear-door actuators, downlocks, unlock and sequence actuators, wheels, and brakes.

• Flight controls: Illustrated listings identify control-column components, aileron and elevator controls, rudder interconnections, electric trim assemblies, and flap-system hardware.

• Electrical equipment: Installation views and parts tables identify battery and starter contactors, voltage regulators, switch panels, circuit breakers, and instrument-panel lighting assemblies.

• Vacuum and de-ice: Engine-driven vacuum systems, wing and stabilizer de-ice installations, and separate propeller de-ice listings distinguish equipment configurations.

• Oxygen equipment: Cylinder and regulator assemblies, filler and outlet valves, pilot and passenger masks, and associated lines and console parts receive separate listings.

Suited to aircraft maintenance personnel and parts specialists who already work with part numbers, exploded illustrations, and aircraft serial applicability.

This catalog provides parts identification and procurement references. It does not provide step-by-step diagnostic or repair procedures; the fuel-cell structural listings explicitly refer repair and sealing work to the service manual.

Component and Structural Breakdown

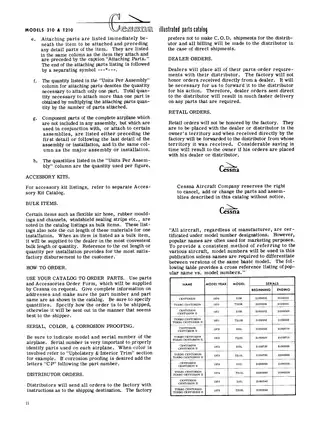

Illustrations such as Lower Forward Fuselage Structure and Fuel Cell Components Installation connect numbered callouts to parts lists showing part numbers, descriptions, units per assembly, and applicability. Miscellaneous Bulk Items listings identify materials and stock items used across assemblies.

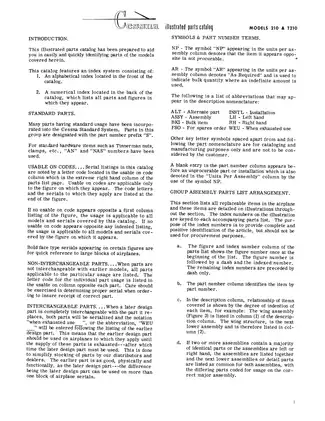

The introduction explains interchangeable parts, non-interchangeable designs, and “when exhausted use” replacement entries. Usable On codes apply only to their own figure. Matching the aircraft serial to that figure’s code key helps distinguish otherwise similar parts before an order is placed.

Engine and Landing-Gear Applicability

Engine listings distinguish standard and non-congealing oil-cooler configurations and identify the specification number needed for the listed engine. The Engine Components & Associated Accessories sections provide tables of commonly used replacement parts; those two listings are explicitly unillustrated.

Woodward and McCauley propeller governor entries are separate. Detailed parts for the McCauley governor are referred to the applicable McCauley manual.

The Hydraulic Power Pack Body & Reservoir Assembly views distinguish installations by serial applicability. Earlier downlock actuator listings include paired-replacement notes and identify kit SK210-66, making the replacement relationship visible before individual actuator parts are selected.

Finish, Trim and Equipment Identification

Finish and Trim Plate interpretation and Paint Code Charts connect interior schemes and exterior finishes to the relevant aircraft groups. Painted or plastic interior parts and upholstered parts use different second-dash-number conventions for color and material.

Name Plates, Placards & Exterior Markings Installation drawings identify panel labels and exterior markings. The battery-box placards warn that reversed polarity can damage electrical components.

Electrical Equipment Installation views show component locations and associated mounting parts. Wing-leveler listings also specify a matched-set relationship between the turn coordinator, inverter, and restrictor valve.

Selected Engine Parts Dimensions and Thread Data

For the IO520L engine assembly, S1053E12T duct is listed in 16.5- and 19.0-inch cut lengths with separate bulk-item references.

The IO520L and TSIO520H accessory lists both specify a 3/4-20-3A spark-plug thread designation. These entries provide component identification data for parts selection.

Printed Indexes and PDF File Details

Text lookup and navigation: PDF text search is not available, and there are no embedded PDF bookmarks. The printed alphabetical and numerical indexes provide references to the relevant figures and parts listings.

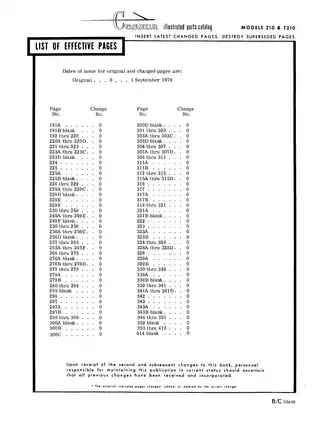

One printable English PDF, 667 pages, measuring 31.41 MB. The total includes the publication cover, one effective-page list, the catalog content and indexes, and 39 blank pages.
