Kawasaki ZL900/ZL1000 Eliminator 1985–1988 Service Manual Set (P/N 99924-1077-51)

The Kawasaki supplements document Eliminator-specific differences from the ZX900 platform. Much of their ZL900 material overlaps; the later edition adds the ZL1000-specific chapter. The Haynes volume provides separate service and repair coverage for the related ZX models.

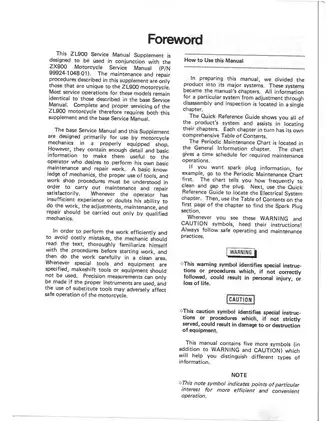

Required factory reference: Both supplements specify the Kawasaki ZX900 Motorcycle Service Manual, P/N 99924-1048-01, as their base manual. That publication is not included. The Haynes book is an independent manual and is not the factory base manual named in those cross-references.

PDF Search, Bookmarks and Diagram Detail

Navigation and wiring detail: PDF text search is unavailable in all three files. The second Kawasaki supplement and the Haynes manual have chapter bookmarks; the first supplement has none. Small wiring labels require zooming. The first supplement has some faint diagram lines, and some small Kawasaki wiring labels remain soft when enlarged.

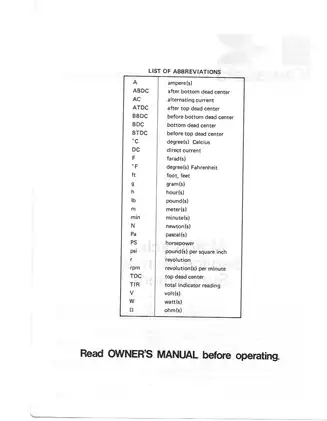

The ZIP download contains three printable English PDFs totaling 613 pages, including covers and preliminary material. The Haynes page count includes 31 identical repeat pages, including 12 repeated wiring-diagram pages.

Eliminator Powertrain, Chassis and Electrical Work

These selected repair topics show part of the coverage. Other sections include seat and fender removal, general lubrication, and fastener checks.

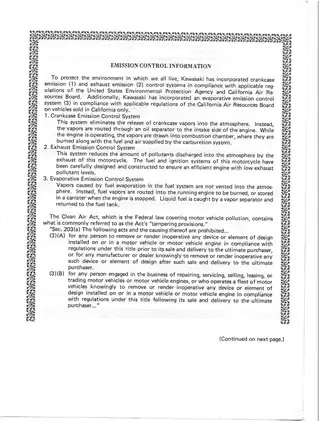

• Fuel and emissions: Throttle and choke checks, fuel-tank removal, fuel-tap inspection, model-specific carburetor data, and California evaporative-emission hose routing.

• Cooling system: Coolant draining, water-pump and pump-cover removal, radiator and fan service, reservoir routing, and thermostat-housing installation.

• Engine and clutch: Cylinder-head removal differences, engine removal and installation, clutch-hub disassembly, spring-plate setup, and friction-plate inspection.

• Shaft drive: Step-by-step procedures for final gear case teardown, pinion service, bearing-preload measurement, bevel-gear adjustment, and propeller-shaft service.

• Suspension and brakes: Fork disassembly, rear-shock adjustment and oil filling, swingarm alignment, steering service, rear brake adjustment, and wheel-bearing work.

• Electrical diagnosis: Alternator troubleshooting, charging-system tests, starter and cooling-fan circuits, switch checks, and model-specific wiring diagrams.

• ZX-family overhaul: The Haynes manual covers internal engine and gearbox work, carburetor overhaul and synchronization, cam-chain timing, and systematic fault finding for its listed ZX applications.

Kawasaki wrote the supplements primarily for motorcycle mechanics in a properly equipped shop. Owners undertaking basic maintenance and repair need mechanical knowledge, suitable tools, and an understanding of workshop procedures.

Fuel and Cooling Differences

The fuel sections distinguish the ZL900’s Keihin CVK32 carburetors from the ZL1000’s CVK34 configuration. The ZL1000 chapter adds coasting-enricher inspection and US high-altitude jetting information, with separate California specifications.

Full carburetor overhaul and synchronization are among the procedures referred to the factory base manual. The supplements’ own fuel-system pages concentrate on model-specific data, controls, tank fittings, and emissions components.

The ZL900 cooling description explains how coolant- and oil-temperature switches operate the fan circuit. ZL1000 routing drawings show the revised reservoir and hose arrangements.

Engine, Clutch and Internal Repair Coverage

Engine pages provide compression and valvetrain inspection data, clean-air-system details, exhaust service, and the Eliminator-specific cylinder-head removal changes. Clutch material distinguishes spring-plate setup with new friction plates from checks made when the existing plates are reused.

The ZL1000 chapter adds connecting-rod bearing-insert selection and model-specific connecting-rod installation requirements. The Haynes volume supplies more extensive piston, cylinder, crankshaft, gearbox, and cam-chain procedures for its ZX applications.

Bevel-Gear Setup and Assembly Cautions

Factory-lapped gearsets, shim tables, and correct/incorrect tooth-contact charts help relate bearing setup to gear mesh during shaft-drive repair. The final-drive chapter distinguishes pinion-bearing preload from front driven-shaft bearing preload.

Excessive preload can damage the tapered roller bearings, while misplaced shims change backlash and tooth contact. The manual also warns that heating the gear case with a torch can warp the housing.

Chassis and Electrical References

Swingarm coverage includes pivot-shaft sizing and side-clearance alignment. Suspension sections distinguish fork service from rear-shock damping adjustment and oil filling.

Electrical material reaches beyond the main wiring diagram: reserve-lighting diagnosis, tachometer checks, temperature-warning circuits, brake-light switches, and junction-box tests receive separate treatment. These circuit references help distinguish wiring faults from component faults before replacement.

Diagrams, Tools and Workshop Data

References include the Engine Oil Flow Chart, final gear case and front bevel gear exploded views, tooth-contact pattern charts, the Electric Starter Circuit, and ZL model-specific wiring diagrams.

Special-tool references identify the pinion gear holder 57001-1165, dial gauge holder 57001-1049, and damper cam holder 57001-1025. Other callouts include bearing driver set 57001-1129 and oil-seal and bearing remover 57001-1058.

Component torque tables, lubricant specifications, fluid capacities, wear limits, and electrical test values accompany the relevant systems.

For engine, fork, wheel, brake, and shaft-drive repair, the motorcycle must be securely supported before major components are loosened; the cooling system should be depressurized, and open fuel-system work kept away from ignition sources.

Examples of Clutch and Bevel-Gear Setup Data

For the ZL900, the clutch spring-plate free-play standard is 0.30–0.60 mm with all new friction plates, compared with 0.55–0.85 mm when the friction plates are not replaced.

The ZL900 final-drive specifications list 0.13–0.18 mm backlash for both the final bevel gears and the front bevel gears, alongside separate preload and tooth-contact adjustment information.
