John Deere 240, 245, 260, 265, 285, 320 garden tractor technical repair manual
Product Gallery

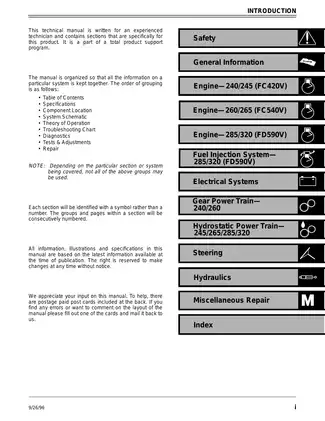

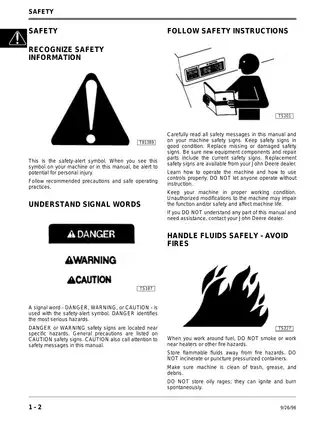

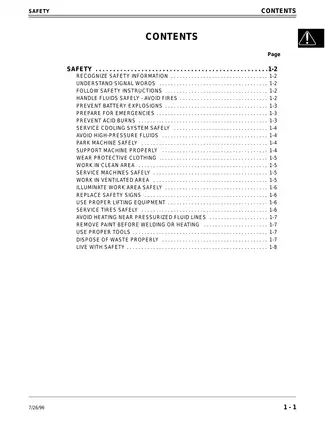

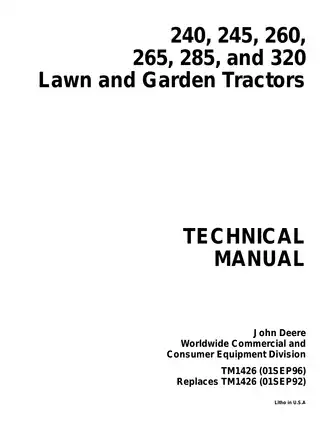

Sample pages from the John Deere 240, 245, 260, 265, 285, 320 garden tractor technical repair manual manual





Purchase Information
John Deere 240, 245, 260, 265, 285, 320 garden tractor technical repair manual - Technical Specifications
- File Size:
- 20.28 MB
- File Type:
- ZIP
- Language:
- English
- Pages:
- 562
- Printable:
- Yes
- Estimated Download Time:
- 0.42 Minutes
- Delivery Format:
- Digital (PDF) - Instant Access
- Category:
- Garden Tractor
- Brand:
- John Deere
John Deere Models and Parts Covered in this Garden Tractor Manual
240, 245, 260, 265, 285, 320, Late 200 Series / John Deere
Serial numbers:
- 240: 000000 - 070000
- 245: 000000 - 070000
- 260: 000000 - 070000
- 265: 000000 - 070000
- 285: 000000 - 070000
- 320: 000000 - 070000
Engine 240 specs:
- Kawasaki FC420V, gasoline, 1-cylinder, air-cooled, vertical-shaft, 422 cc, 25.8 ci, 3.5x2.7 inches, 89 x 69 mm, 14 hp, 10.4 kW, 8.4:1
Engine 245 specs:
- Kawasaki FC420V, ..., see above, ..., 3.50x2.68 inches, 89 mm x 68 mm
Engine 260 specs:
- Kawasaki FC540V, ..., see above, 534 cc, 32.6 ci, 3.5x3.38 inches, 89 x 86 mm, 17 hp, 12.7 kW, 8.3:1
Engine 265 specs:
- see above.
Engine 285 specs:
- Kawasaki FD590V, 585 cc, 35.7 ci, 2.91x2.68 inches, 74 x 68 mm, 18 hp, 13.4 kW, carburetor, 8.7:1.
Engine 320 specs:
- Kawasaki FD590V, 4-stroke, 585 cc (35.7 cu-in), liquid, cooled, V-twin 90°, gasoline, 18.0 HP (13.4 kW), 3,600 rpm and 41.5 Nm (4.23 kg·m; 30.63 ft·lb) at 2,600 rpm, 74.0 mm (2.91 in) cylinder bore and 68.0 mm (2.68 in), 8.7:1.
Publication number.:TM-1426
Production year(s): 1988, 1989, 1990, 1991, 1992, 1993, 1994.
John Deere John Deere 240, 245, 260, 265, 285, 320 garden tractor technical repair manual - Complete Manual Information
