John Deere 240, 245, 260, 265, 285, 320 garden tractor service manual - TM-1426

Price: 24.99 USD
Lifetime Guarantee
File specifications File size: 20.89 MB File ending in: pdf

To make it easier for you to choose the right manual, we have compiled various information for you below.

The following models are covered by this manual:

  • John Deere 240 Garden Tractor
  • John Deere 245 Garden Tractor
  • John Deere 260 Garden Tractor
  • John Deere 265 Garden Tractor
  • John Deere 285 Garden Tractor
  • John Deere 320 Garden Tractor

Serial numbers:

  • John Deere 240: M00240A010001 - M00240A015000
  • John Deere 245: M00245A040001 - M00245A065000
  • John Deere 260: M00260A010001 - M00260A020000
  • John Deere 265: M00265B010001 - M00265B020000
  • John Deere 285: M00285X010001 - M00285X050000
  • John Deere 320: M00320A010001 - M00320A015000

Engine 240 specs:

  • Kawasaki FC420V, gasoline, 1-cylinder, air-cooled, vertical-shaft, 422 cc, 25.8 ci, 3.5x2.7 inches, 89 x 69 mm, 14 hp, 10.4 kW, 8.4:1.

Engine 245 specs:

  • Kawasaki FC420V, ..., see above, ..., 3.50x2.68 inches, 89 x 68 mm, 14 hp, 10.4 kW.

Engine 260 specs:

  • Kawasaki FC540V, gasoline, 1-cylinder, air-cooled, vertical-shaft, 534 cc, 32.6 ci, 3.5x3.38 inches, 89 x 86 mm, 17 hp, 12.7 kW, 8.3:1, Rated RPM 3350.

Engine 265 specs:

  • ..., see above,

Engine 285 specs:

  • electronic fuel injected (EFI), Kawasaki FD590V, gasoline, 2-cylinder, liquid-cooled, vertical-shaft, 585 cc, 35.7 ci, 2.91x2.68 inches, 74 x 68 mm, 18 hp, 13.4 kW, carburetor, 8.7:1, Idle RPM 1400-3350.

Pages: 562

LISTING:

  • ENGINE - FC420V (240/245 TRACTORS)
  • ENGINE - FC540V (260/265 TRACTORS)
  • ENGINE - FD590V (285/320 TRACTORS)
  • FUEL INJECTION SYSTEM 285/320 (FD590V)
  • GEAR POWER TRAIN 240/260
  • TRANS AXLE - 240/260
  • HYDROSTATIC POWER TRAIN 245/265/285/320
  • HYDROSTATIC TRANS AXLE - 245/265/285/320
  • MOWER DECK REPAIR - 38 INCH
  • MOWER DECK REPAIR - 46/50 INCH
  • MOWER DECK REPAIR - 48 INCH

Engine 320 specs:

  • see above.

Publication Number: TM-1426

Production year(s):

  • 1988, 1989, 1990, 1991, 1992, 1993, 1994.

Language:

  • English (some of our manuals are multilingual)

Printable:

  • Yes

Delivery:

  • Download link will appear on the checkout page after your payment is complete.

More information: Purchase your John Deere 240, 245, 260, 265, 285, 320 garden tractor service manual - TM-1426 here for immediate download

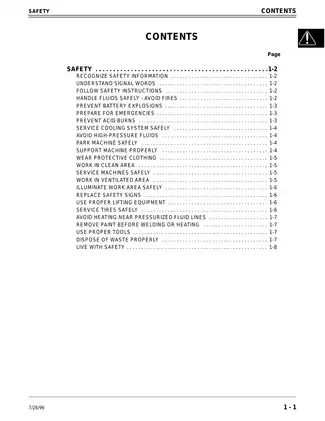

Table of Contents

  1. General Information
  2. Engine Repair
  3. Electrical Repair
  4. Power Train Repair
  5. Steering and Brake Repair
  6. Hydraulic Repair
  7. Miscellaneous Repair
  8. John Deere Tractors Technical Manual - TM1426
  9. Engine Specifications, 240, 245, 260, 265, 285, 320
  10. Fuel and Air System Repair

Please note that the following table of contents is a partial overview and does not cover all the sections and topics included in the manual. It provides a glimpse of the manual's content.

This manual is useful to mechanics, technicians, and owners as it contains comprehensive and detailed information on repairing and servicing the John Deere 240, 245, 260, 265, 285, 320 garden tractor.

  • The price of this manual, handbooks, and repair guides are not set by [RL] marketplace, but by the seller of the manuals himself, so it is possible that the same manual is offered at a different price on another page here. Please compare prices before deciding to purchase.
  • For many of our manuals, there are comments and ratings from other users at the end of the detail page to make your purchase decision easier. Please leave a review after your purchase to help other users make their purchasing decision.
  • Don't hesitate and download the repair manual you need now. You get a lifetime guarantee for the download, as described in our FAQs here.
  • To contact the seller of the manual, please use our contact form here and we will forward your request or take care of it directly.
  • If you liked our service, please recommend us on social media and follow us on Facebook here.
  • Click the download button and instantly download this manual
Price: 24.99 USD
Lifetime Guarantee
About the Author: Samuel Davis
Repairloader Team Samuel Davis

I'm Samuel Davis, a mechatronics-trained expert at Repairloader, handling manuals for outboards, aircraft, mowers, and various types of vehicles since 2014. My expertise enables me to create the detailed manual descriptions necessary for your repair needs.
