2003 John Deere G100 Lawn Tractor Technical Manual (P/N TM2020)
254 Pages • 27.34 MB • Instant, Printable PDF
John Deere Models Covered & Key Technical Specifications
Model: G100
Model Year: 2003
-
Engine: Kohler CV730-0006, 2-cylinder, 4-stroke, 725 cc, 18.6 kW (25 hp)
-
Cooling System: Air-cooled with flywheel-mounted fan
-
Lubrication: Fully pressurized gear-driven Gerotor pump
-
Fast Idle Speed: 3350 ± 75 rpm
-
Slow Idle Speed: 1700 ± 75 rpm
-
Crankshaft Runout (PTO end, in engine): Maximum 0.15 mm (0.0059 in.)
-
Valve Adjustment: None (Hydraulic lifters)
-
Battery: 12VDC, 342 CCA
-
Crankcase Oil Capacity (with filter): 2.0 L (2.1 qt)
John Deere Manual Features & Content Preview

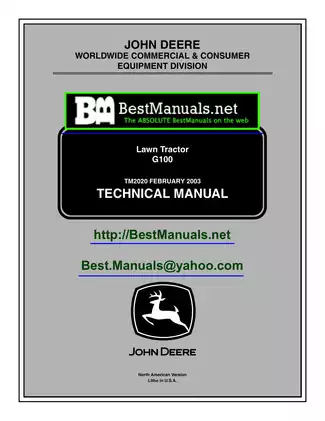

This PDF contains the official John Deere publication TM2020 (dated February 2003), covering North American market specifications for the 2003 John Deere G100 lawn tractor and its Kohler CV730-0006 engine.
Supplied as one 254-page English-language PDF.
-
Engine repair: Engine removal and installation, cylinder-head and valve service, valve seat reconditioning, piston inspection, and internal engine repair.
-
Engine diagnostics: Cylinder leak testing, compression testing, crankcase vacuum and oil pressure checks, fuel pump tests, and governor adjustment.
-
Hydrostatic power train: Hydrostatic transaxle bleeding, neutral creep adjustment, traction drive belt tensioning, and Tuff Torq K66C disassembly and assembly.
-
Electrical troubleshooting: Wiring diagrams, starting and charging tests, PTO and Reverse Implement Option (RIO) circuit diagnosis, and armature air gap adjustment.
-
Steering and brakes: Steering sector gear service, drag link adjustment, front axle repair, and brake pedal, linkage, and parking brake work.
-
Mower deck: Deck removal, side-to-side and front-to-rear leveling, blade balancing, spindle rebuilding, and jack sheave service.
John Deere wrote this manual for experienced technicians.
Kohler Engine Diagnosis and Repair
Engine coverage extends to hydraulic valve lifters, camshaft timing and end play, crankshaft measurement, piston rings, and oil seals. Reference data includes cylinder-head flatness, piston-to-cylinder and intake valve-to-guide clearances, engine oil pressure, and component torque specifications.
Engine theory covers the lubrication network, centrifugal governor, the capacitive discharge ignition module, and the pulse-operated fuel pump. Crankcase vacuum tests identify the JT05697 U-tube manometer and JT03503 crankcase vacuum test kit.
Fuel-system scope: Carburetor and fuel pump removal and installation are documented, but both are treated as assemblies with no separately serviceable internal components.
The piston assembly instructions identify cylinder-specific piston/connecting-rod orientation because incorrect assembly can cause extensive wear or damage.
K66C Hydrostatic Transaxle
Internal repair covers the Gerotor charge pump, variable displacement swash plate, center case and check valves, and pump and motor cylinder blocks. Separate procedures and inspection data address the differential, reduction gears, axle shafts, and internal wet disk brake.
Symptom-based diagnostics address loss of forward or reverse drive, low ground speed, creep, noise, and erratic speed. They help distinguish belt or linkage faults from internal hydrostatic problems before teardown.
Exploded component views, component location views, and the Gear Power Flow diagram show how the hydrostatic motor drives the reduction gears, differential, and axles.
Electrical Circuits and Interlocks
The electrical section groups theory of operation, diagnostic flow, and test data by circuit, with operating conditions, test locations, and expected readings. The W1 Main Wiring Harness drawing identifies connector terminals and wire numbers, while the Reverse Implement Option (RIO) Circuit Schematic maps the latch relay and safety-interlock connections.
Battery load and starter-current tests sit alongside stator, regulator/rectifier, ignition, and PTO clutch resistance checks. Starter repair notes explain how emery cloth particles can embed in the commutator and cause rapid brush wear.
Steering, Brakes, and Mower Deck
Chassis coverage includes steering shaft and sector gear removal, steering alignment, front wheel bushings, the beam axle, and brake linkage adjustment. Hood, seat, fender deck, lift linkage, and height-adjuster procedures cover access and deck-lift components.
The attachments section focuses on mower deck service. The Mower Decks Troubleshooting Chart separates cut-quality, vibration, belt-slip, and blade-drive complaints. Spindle - Cross Section and Jack Sheave and Idlers - Cross Section drawings support bearing and seal work.
Tool references include the TY15272 Blade Height Gauge and JT07076 Rotary Blade Balancer.
Proper maintenance requires strict adherence to factory safety protocols for rotating mower blades, fuel handling, raised-machine support, and tensioned springs.
File Format and Navigation

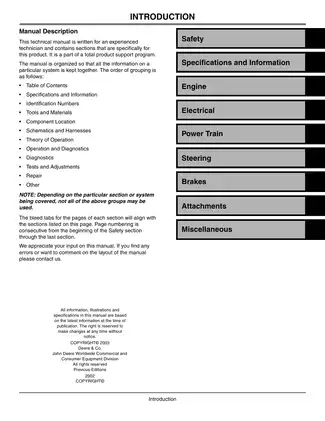

The file contains 244 numbered manual pages, one title page, one introduction page, two blank front-matter pages, and a six-page index, all included in the total.
Text search: Searchable embedded PDF text is available across the manual, including the main electrical schematics.
Navigation: Embedded PDF bookmarks link to sections and individual procedures.
Readability: Small wiring codes and connector labels are best read with zoom.
