Suzuki RM-Z450 Service Manual, 2004–2007

This Suzuki Motor Corporation 2005 RM-Z450 owner’s service manual covers the liquid-cooled DOHC single with the KEIHIN FCR40MX carburetor, semi-dry-sump lubrication system, and CDI ignition. Its repair and diagnostic coverage is specific to this carbureted competition motorcycle.

PDF Search, Chapter Bookmarks, and Page Count

Search and diagram detail: PDF text search is not available. Embedded bookmarks provide access to the foreword and technical chapters. Small wiring labels are readable when enlarged.

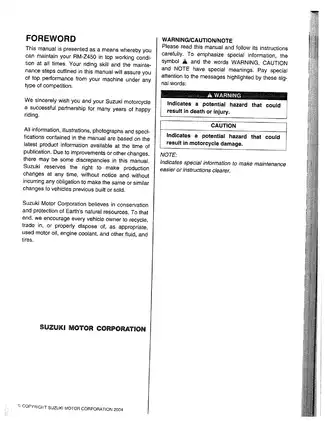

The ZIP contains one printable, 309-page PDF, including seven preliminary pages and ten repeated pages. The repeats comprise one carburetor reassembly page, one water-pump assembly page, and a second copy of the eight-page Cooling System chapter.

Engine Rebuilding, Fault Finding, and Race Setup

These selected coverage highlights summarize the main workshop topics rather than the complete contents. Additional subjects include starting procedures and break-in guidance after major engine-part replacement.

• Engine and top-end repair: Step-by-step engine removal and installation, automatic decompression and camshaft service, cam-chain and tensioner work, cylinder-head and valve inspection, tappet-shim selection, piston and ring service, and valve timing.

• Crankshaft and transmission: Crankcase separation, crankshaft and connecting-rod inspection, gearbox removal and reassembly, shift-fork checks, gearshift-linkage repair, and bearing and oil-seal replacement.

• Clutch and kickstarter: Clutch-pack inspection, primary driven gear and sleeve-hub service, release-bearing replacement, clutch-release camshaft inspection, and kickstarter removal, inspection, and reassembly.

• Fuel and ignition diagnosis: Carburetor disassembly and cleaning, float and fuel-level checks, accelerator-pump timing, throttle-position-sensor testing, ignition peak-voltage measurements, CDI checks, and magneto rotor and stator service.

• Cooling and lubrication: Cooling-circuit pressure testing, radiator-cap inspection, radiator removal, water-pump repair, oil-strainer inspection, and removal, inspection, and reassembly of both oil pumps.

• Brakes, wheels, and steering: Brake bleeding, fluid replacement, caliper and master-cylinder repair, wheel-bearing replacement, rim and disc inspection, sprocket replacement, and steering-bearing service.

• Suspension and race setup: Fork disassembly, seal and spring service, rear-shock oil replacement and internal inspection, swingarm and linkage bearing replacement, carburetor tuning, and suspension-balance guidance.

Mechanically experienced owners can use the maintenance and tuning sections; internal engine and suspension work requires repair experience and the specified measuring equipment and special tools.

Maintenance and Mechanical Fault Finding

Pre-practice and pre-race checklists sit alongside a periodic maintenance chart. These cover the air cleaner, engine oil and filter, both oil strainers, coolant, control cables, hot-start system, idle speed, valve clearance, brakes, wheels, steering, and suspension.

Exhaust-silencer packing, drive-chain guides, buffers, tensioner rollers, and lubrication points receive separate attention. Compression testing links low readings to possible cylinder, ring, valve-seating, and decompressor faults; oil-pressure testing distinguishes low- and high-pressure fault causes. These references help identify where further inspection is needed before committing to internal repair.

Carburetor Tuning and Electrical Diagnosis

The Machine Tuning chapter explains the slow, intermediate, and main carburetor systems. It connects throttle position and rich/lean symptoms with the pilot screw, slow jet, needle diameter and clip position, and main jet.

Temperature, altitude, and humidity charts explain how operating conditions affect carburetor settings. Regional carburetor identification and jetting entries help distinguish the U.S.A./Japan configuration from other-market machines.

Electrical testing includes probe connections, coil-resistance specifications, peak-voltage checks, and a CDI terminal-reference table. The coverage is for carburetor and CDI systems; it does not include fuel-injection diagnosis or ECU programming.

Fork and Rear-Suspension Service

Front-fork tuning covers compression and rebound damping, outer-chamber oil changes, oil-quantity adjustment, spring selection, and a symptom-based tuning chart. Fork seal and oil service is documented, but the manual cautions against dismantling the compression damper unit.

Rear-suspension tuning covers low- and high-speed compression, rebound, spring preload, rider sag, spring selection, track-condition symptoms, and front-to-rear balance. Shock oil service calls for nitrogen equipment, a regulator, a filling hose, and the specified suspension oil.

Overclamping the fork outer tube or axle holder can damage parts and affect handling; disturbing the inner-rod locknut can damage its oil seal. Incorrect linkage-bolt orientation can restrict suspension movement and damage the linkage, while poor rear brake-hose routing can allow contact with the shock spring.

Diagrams, Tools, and Workshop Reference

Diagram coverage includes the Engine Lubrication System Chart, Electrical Circuit, Wiring Diagram, Wire Harness Routing, Carburetor Hose and Water Hose Routing, and front and rear brake-hose routing drawings. Construction and exploded views support the engine, transmission, carburetor, brakes, fork, steering, and rear suspension procedures.

The special-tool index identifies the 09920-13120 crankcase separating tool, 09941-53630 front fork top cap wrench, 09910-60611 universal clamp wrench, and 09930-35020 rotor remover.

The final chapter contains component-specific tightening tables, capacities, wear limits, approved fluids, spare and optional parts, handlebar setup, rear brake pedal setup, engine electrical-parts installation drawings, and a reusable setting-data worksheet.

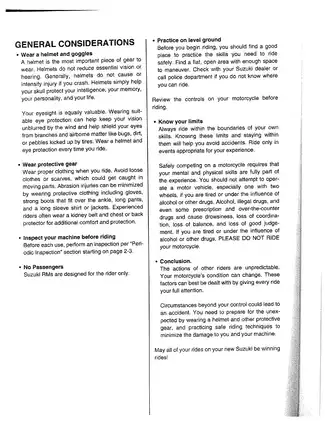

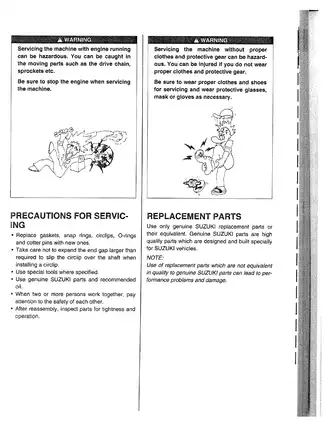

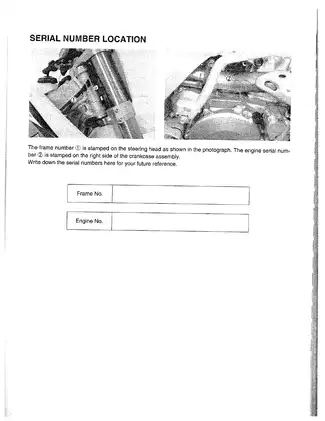

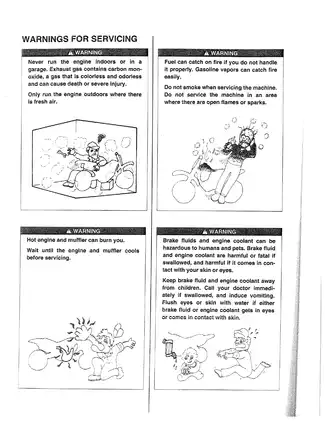

The maintenance chapter and consolidated service-data table give conflicting spark-plug-gap figures. Confirm the applicable specification for the exact motorcycle before adjustment, and follow the manual’s safety warnings for fuel, hot coolant, brake fluid, rotating components, and pressurized nitrogen.

Selected Carburetor and Oil-Pressure Test Data

The carburetor inspection section specifies an 8 mm standard float height. Its fuel-level check specifies a gauge reading 6.5 mm above the float-chamber mating surface, with the carburetor horizontal laterally and inclined 12° longitudinally. The accompanying illustration distinguishes the gauge reading from the actual chamber level because of the meniscus effect.

For lubrication diagnosis, the oil-pressure reference is 50 kPa at 1,850 r/min with the oil at 50°C. The test section pairs this condition with separate lists of possible low- and high-pressure causes.
