2008–2012 Suzuki RM-Z450 Service & Repair Manual

This Suzuki RM-Z450 service and repair manual covers the 2008–2012 closed-course competition models, with workshop procedures for the liquid-cooled four-stroke engine, fuel injection, and chassis systems.

• Engine repair: Engine removal and installation, cylinder-head service, piston and ring inspection, camshaft timing, and valve-clearance adjustment with tappet shim selection charts.

• Clutch and transmission: Wet multi-plate clutch service, kick starter repair, gearshift linkage inspection, crankcase separation, and crankshaft and transmission checks.

• Fuel injection diagnosis: Dealer-mode fault-code reading, diagnostic trouble code tables, sensor circuit testing, throttle-position sensor adjustment, and ECM terminal references.

• Fuel, lubrication, and cooling: Fuel-pressure and pump-output tests, throttle body service, oil-pump inspection, cooling-system pressure testing, and water-pump repair.

• Suspension and chassis: Front fork rebuilding, rear shock service, suspension tuning, steering bearings, wheel bearings, brake calipers, master cylinders, and brake bleeding.

• Workshop illustrations: Exploded assembly views, the FI System Wiring Diagram, Engine Lubrication System Chart, Wiring Harness Routing views, and Fuel Hose Routing diagrams.

The procedures are suited to mechanics and experienced owners equipped for precision measurements and the special-tool requirements of internal engine and suspension work.

Engine Repair and Maintenance

The maintenance section separates inspections before practice and before a race from the scheduled service chart. It covers engine oil and filter changes, oil strainers, air-cleaner service, and control-cable adjustments.

Engine removal and installation include mounting-fastener and swingarm-pivot torque data, followed by checks after installation. The top-end section goes into valve-guide replacement, valve-seat inspection and servicing, cylinder measurement, and piston-ring wear assessment.

Tappet shim selection charts connect measured valve clearance with replacement shim thickness. Camshaft timing illustrations and automatic decompression checks accompany reassembly. The manual also identifies the primary drive gear nut's left-hand threads.

Bottom-end coverage includes gear dogs, shift forks, bearings, crankshaft runout, and connecting-rod clearance checks. Clutch illustrations distinguish the drive and driven plates and their assembly order.

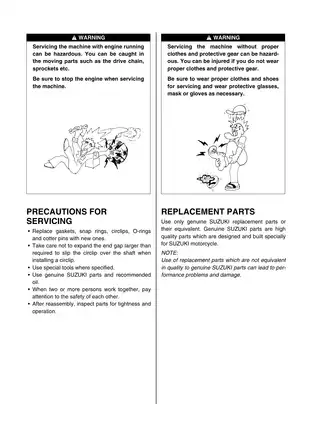

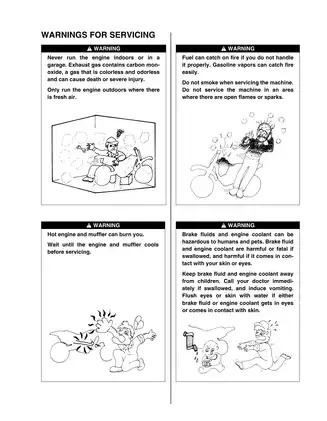

Servicing high-performance racing motorcycles involves mechanical risks; use the specified tools and consult a qualified technician before undertaking complex engine work.

FI Fault Tracing and Fuel-System Service

Dealer-mode diagnosis uses the optional FI indicator light assembly 36380-28H00, battery lead wire 36890-28H00, and an external battery. These are workshop equipment requirements, not items included with the PDF.

The code-specific checks link fault indications to sensor measurements, wiring continuity, and ECM terminals. This helps distinguish a sensor problem from a harness or connection fault before choosing a replacement component.

Fuel-system coverage extends to pump delivery, pressure-regulator checks, injector inspection, and throttle body cleaning and reassembly. The fuel pump is serviced as an assembly; internal pump disassembly is prohibited.

Electrical service includes magneto rotor removal and installation, stator inspection, ignition-coil tests, and regulator/rectifier checks. The FI precautions explain how disconnecting the condenser coupler on a running engine can expose the ECM to damaging counter-electromotive force.

Forks, Rear Shock, and Brake Repair

Front fork procedures cover seals, bushings, springs, and the separate outer-tube and damper oil chambers. Internal disassembly of the damper rod assembly and compression damper unit is prohibited.

Rear shock coverage includes oil replacement, damper inspection, and nitrogen charging, with the required charging equipment identified. Suspension tuning charts relate handling symptoms to damping and spring adjustments; the setting-data sheet provides space to record track conditions and setup changes.

Brake service covers caliper and master-cylinder disassembly, inspection, reassembly, and bleeding. Steering, swingarm, and suspension-linkage sections include bearing replacement and installation references.

A Preview of Engine Pressure-Test Data

The compression-test standard is 400 kPa or higher with the automatic decompression system actuated, the engine warm, and the throttle fully open. The section also lists mechanical causes of a low reading.

Oil-pressure data specify 50 kPa at 4,000 r/min with oil at 50°C (122°F). The accompanying diagnostic notes distinguish causes of low pressure from high pressure in the lubrication circuit.

Searchable Text, Bookmarks, and Wiring Detail

Search and diagram access: The PDF has searchable text and embedded chapter and subsection bookmarks. Small wire-color codes in the full wiring diagram require zooming.

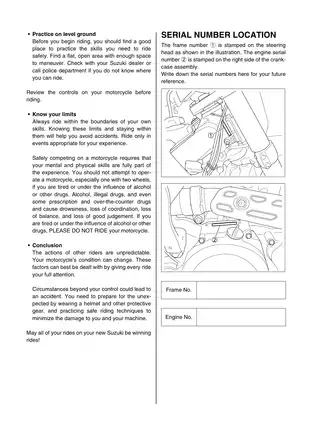

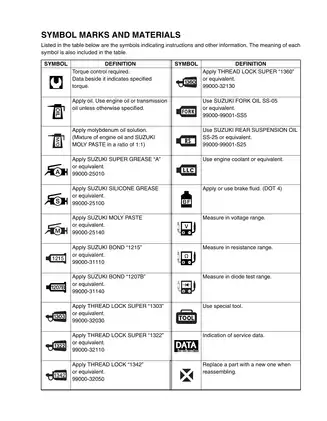

The download contains one printable, English-language 370-page PDF. That total includes seven pages of front matter and one memo page.
