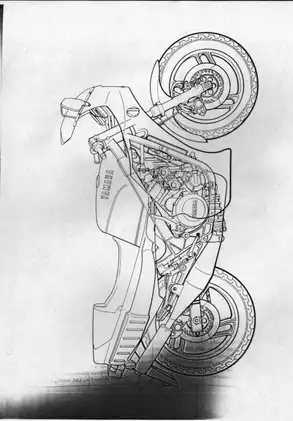

1984 Yamaha RD500LC Factory Service Manual (P/N 47X-28197-80)

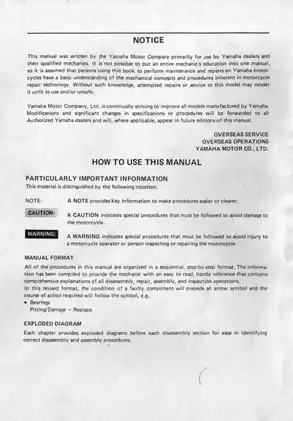

• Coverage and document identity: Covers the 1984 Yamaha RD500LC, factory model code 47X, beginning with engine and frame number 47X-000101; this 260-page PDF carries Yamaha document number 47X-28197-80 on the cover.
• V4 engine repair: Documents engine removal and installation plus disassembly, inspection, and reassembly of the upper and lower cylinder groups, pistons, reed valves, YPVS hardware, upper and lower crankshafts, balancer shaft, crankcases, clutch, kick-start mechanism, oil pumps, and six-speed transmission.
• Cooling and carburetion: Covers coolant-flow reference data, coolant replacement, water-pump, thermostatic-valve, and radiator service, together with four-carburetor overhaul, synchronization, float-height adjustment, and fuel-level setting.
• Chassis service: Details cast wheels and tubeless tires, chain and sprockets, brake bleeding, caliper and master-cylinder repair, front-fork and anti-dive work, steering-head service, rear-shock inspection, and swingarm/relay-arm repair.
• Electrical fault tracing: Provides the main RD500LC circuit diagram plus dedicated ignition/starting, charging, lighting, signal, cooling, and YPVS schematics with factory troubleshooting charts and component tests.

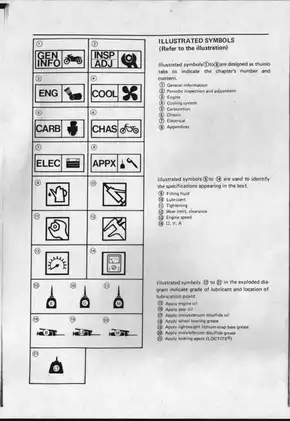

• Workshop reference data: Lists Yamaha special tools and part numbers, periodic maintenance tables, assembly torque references, inspection limits, clearances, electrical test data, lubrication diagrams, and cable-routing views.

Engine and Drivetrain Repair Coverage

The engine chapter is the core of this publication. It separates upper- and lower-bank work throughout the teardown, allowing the correct cylinder, piston, reed-valve, water-jacket, YPVS, and crankshaft locations to be identified rather than treating the motor like a conventional inline two-stroke. Engine removal coverage starts with the cowling, battery, air filter, radiator, left carburetor, mufflers, drive chain, connectors, and cables before the powerplant is removed from the chassis.

Internal repair coverage continues through the cylinder heads, cylinders, pistons, rings, pins, connecting-rod bearings, crankshaft runout inspection, balancer shaft, primary drive, shift mechanism, transmission gears, shift forks and cam, clutch, kick starter, engine-oil delivery system, transmission oil pump, water pump, bearings, oil seals, blind seals, and circlips. Exploded assembly drawings and component-specific inspection criteria sit with the related procedures. Reassembly sections cover crankcase sealing and tightening sequence, transmission and primary-drive setup, clutch and pump-gear installation, flywheel fitting, upper and lower piston/cylinder assembly, YPVS link adjustment, carburetor refitting, and final engine installation.

The cooling chapter maps coolant flow and covers draining, filling, leak inspection, water-pump service, thermostatic-valve checks, and radiator disassembly and inspection. Carburetor coverage is equally specific, with sectional drawings for the four Mikuni VM26SS units, removal and overhaul procedures, float-height and fuel-level adjustment, installation, synchronization, throttle-cable adjustment, and idle-speed setting.

Chassis, Electrical, and Factory Reference Data

Chassis procedures extend well beyond routine checks. The manual covers front and rear wheel removal, wheel-bearing inspection, cast-wheel and tubeless-tire service, drive-chain and sprocket inspection, hydraulic brake bleeding, pad replacement, caliper overhaul, front and rear master-cylinder repair, fork disassembly and reassembly, anti-dive service, steering-head work, rear-shock removal, and New Monocross swingarm and relay-arm inspection.

Electrical diagnosis is organized by circuit rather than relying on one wiring sheet. Along with the overall RD500LC circuit diagram, the manual supplies dedicated schematics and troubleshooting charts for ignition and starting, charging, lighting, signals, the electric cooling fan and temperature circuit, and YPVS control. Factory checks cover the ignition coil, pickup and source coils, spark-plug cap, generator output, stator, rectifier, switches, thermo unit, fan motor, YPVS control unit, and servomotor. Market notes identify England, Germany, and Finland specification differences; the self-canceling flasher section, for example, is marked as excluding German-spec machines.

The special-tool registry gives both application and Yamaha number. Useful examples include the flywheel magneto puller 90890-01362 with adapter 90890-04063, universal clutch holder 90890-04086, piston-pin puller 90890-01304, front-fork damper-rod holder 90890-01388, and electro tester 90890-03021. The appendices consolidate general and maintenance specifications, torque data, three lubrication diagrams, and five cable-routing views.

Manual-specific cautions also expose the repair traps that matter on this machine. The crankcase assembly pages require the bearing clips and oil/blind-seal flanges to be fully seated in their locating grooves to avoid seal or crankcase damage. Brake sections warn that oil contamination reduces braking and damages the rubber components in the hydraulic assemblies.
