1997 Yamaha TDM850 Service & Repair Manual (P/N LIT-11616-TD-85, LIT-11616-08-29)

• 751 PDF pages across four files: a 355-page TDM850D/TDM850DC service manual plus an 18-page TDM850E/TDM850EC supplement in the 373-page early-model file; a 323-page TDM850 '96 manual; a 12-page TDM850 '97 supplement; and a 43-page TDM850 '99 supplement.
• Coverage is configuration-specific: 4DT1 U.S. non-California TDM850D, 4DT2 California TDM850DC, 4DT3 Canadian TDM850D, 4DT4 TDM850E, and 4DT5 TDM850EC versions, followed by the later 4TX1, 4TX2/5AR1, and 4TX4 configurations.
• Engine repair procedures cover engine removal, camshaft and cylinder-head work, valves and pistons, crankshaft and connecting-rod inspection, balancer timing, clutch service, transmission and shift-fork repair, oil-pump work, and final reassembly checks.
• Chassis repair sections address wheels and brake discs, master cylinders and calipers, hydraulic brake bleeding, front-fork disassembly and seal work, steering-head adjustment, rear shock and relay arm, swingarm, drive chain, radiator, thermostatic valve, and water pump.
• Fuel and emissions coverage includes carburetor synchronization and overhaul, fuel-level setup, fuel-pump testing, California-only canister and emission-hose routing, the 4TX1 Mikuni BDST38/2 system, 1997 regional carburetor changes, and the 4TX4 BDSR38/2 system.
• Electrical sections provide switch and continuity testing, ignition and starting fault isolation, charging, lighting, signal and cooling-fan diagnosis, TPS self-diagnosis, combination-meter and speed-sensor checks, fuel-sender testing, and the 1999 fuel-pump control circuit.

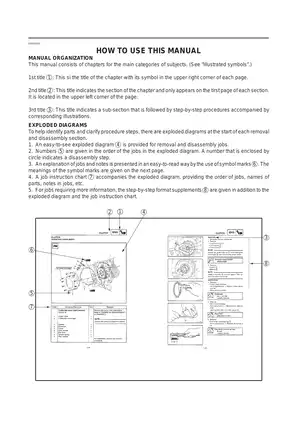

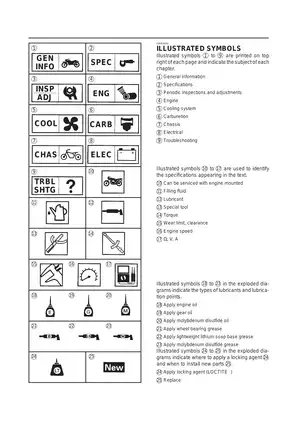

• Reference material includes exploded assembly views, job instruction charts, cable-routing drawings, system circuit diagrams, full wiring diagrams, Yamaha special-tool numbers, torque tables, fluid capacities, wear limits, pressure-test data, adjustment specifications, and electrical test values.

Publication Structure and Model Matching

The early U.S. file carries LIT-11616-TD-85 on its outer cover and LIT-11616-08-29 on the internal TDM850D/TDM850DC title page. Its embedded TDM850E/TDM850EC supplement is LIT-11616-08-66 and cites base-manual number 4DT-28197-20. The later Yamaha document codes are 4TX-AE1 for 1996, 4TX-AE2 for 1997, and 4TX-AE3 for 1999.

For the D/DC manual, the starting VINs are JYA4DTE0*NA000101, JYA4DTC0*NA004101, and JYA4DTN0*NA005101; the corresponding engine starts are 4DT-000101, 4DT-004101, and 4DT-005101. The E/EC supplement begins at JYA4DTE0*PA006101 and JYA4DTC0*PA008101, with engine starts 4DT-006101 and 4DT-008101.

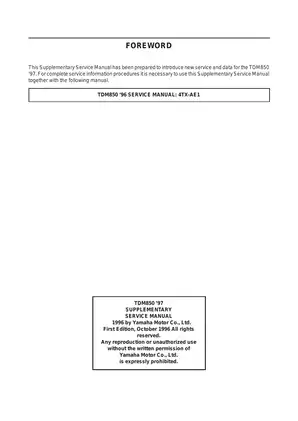

The supplements are update documents rather than stand-alone repair manuals. The 18-page E/EC publication adds identification, specification, and cable-routing changes to the D/DC manual. The 1997 supplement adds revised identification, specifications, carburetor fuel-level information, and wiring data to the 1996 manual. It distinguishes model code 4TX2 from 5AR1 for CH/A markets, while its wiring diagram is specifically marked “except CH, A.” The 1999 supplement must be used with both earlier 4TX publications.

Factory Procedures and Late-Model Changes

At the bench, the manuals cover valve-shim selection, compression and oil-pressure testing, crankshaft and connecting-rod oil-clearance inspection, timing-chain and balancer indexing, clutch-pack inspection, and transmission gear and shift-fork checks. Chassis procedures include static wheel balancing, brake hydraulic repair, steering-bearing adjustment, and front-fork damper service.

The 1999 update is particularly important when identifying late hardware. It documents the BDSR38 carburetors, a clutch pack with different first and last friction plates, the odometer/twin-trip/clock combination meter, the front-wheel speed sensor, and the ignitor-controlled electric fuel-pump system.

Routing matters on these motorcycles. The early manual includes the California canister and emission-hose layout, while the later publications map the throttle and clutch cables, brake hoses, speed-sensor lead, fuel hoses, carburetor heater hoses, and main wiring harness.

Yamaha tool references include the 90890-01312 fuel-level gauge, 90890-01325 radiator-cap tester with 90890-01352 adapter, 90890-01326 T-handle with 90890-01465 damper-rod holder, and 90890-04019 valve-spring compressor with 90890-04108 attachment.

Diagrams, Tools, and Repair Notes

Named electrical material includes the TDM850D/DC circuit diagram, ignition-system circuit diagram, and electric starting circuit operation chart. Later coverage adds the TPS self-diagnosis circuit diagram, TDM850 '97 wiring diagram except CH/A, and 1999 fuel-pump system circuit and operation diagram.

The engine section warns that main and connecting-rod bearing shells must remain in their original positions; mixing them can alter oil clearance and cause engine damage. The front-fork chapter also cautions that excessive separating force can damage the oil seal, bushings, and oil-lock piece.

Engine removal, brake hydraulic work, fuel-system testing, hot cooling-system service, and gas-charged shock handling require proper support, pressure release, electrical isolation, and fire-safe workshop practices.
