1995–1999 Cummins Onan 4KY, 3.6KY & 3.3KY Generator Factory Service Manual (P/N 981-0530)

This factory service manual, Manual No. 981-0530, covers 1995–1999 Cummins Onan KY mobile generator sets: gasoline 4KY and 3.6KY models, plus LPG 3.6KY and 3.3KY models.

Chapter Bookmarks and Wiring Detail

Text search and diagram navigation: The service pages do not support text search. Embedded bookmarks link to the chapters and wiring appendices. Small wiring labels require zooming for clear reading.

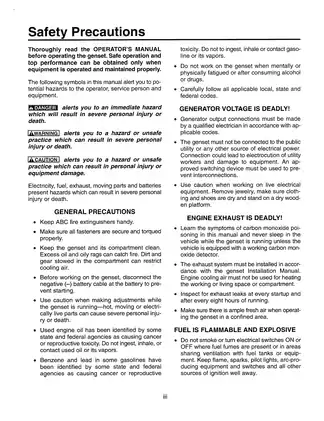

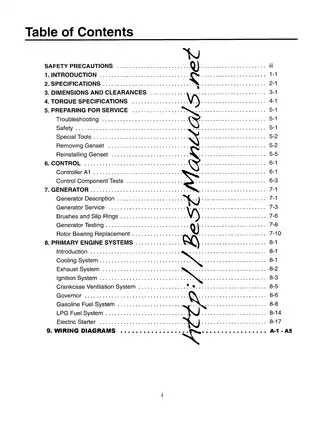

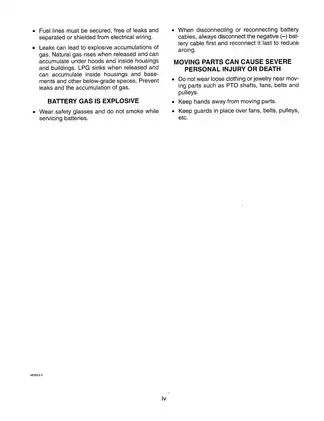

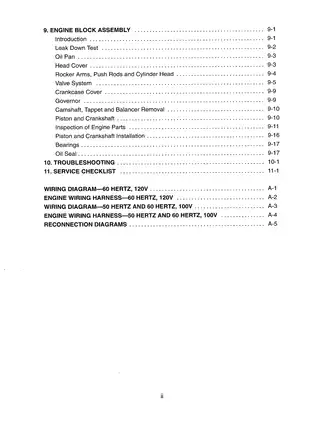

Supplied as one printable English-language PDF. The 86-page PDF includes 75 service-section pages, five wiring/reconnection appendix pages, four contents and safety pages, one front cover, and one closing page; all cover and closing material is included in the total.

Control, Generator and Engine Service

Beyond the selected topics below, the manual covers valve spring inspection and piston pin-to-connecting-rod clearance checks.

• Control and diagnostics: Controller A1 operation, fault code charts, control-component tests, and separate gasoline/LPG troubleshooting for starting problems and shutdowns.

• Generator repair: Rotor and stator testing, brush and slip ring service, generator disassembly and assembly, and rotor bearing replacement.

• Fuel and governor systems: Gasoline fuel pump tests, choke adjustment, LPG demand-regulator checks, automatic priming-solenoid tests, and governor linkage adjustments.

• Engine repair: Leak-down testing, cylinder head and valve work, piston and crankshaft service, bearing replacement, and engine block reassembly.

• Ignition and starting: Spark plug diagnosis, ignition coil checks, starter voltage tests, armature inspection, and electric starter disassembly and reassembly.

• Removal and final checks: Compartment and under-floor genset removal, reinstallation, cooling and exhaust inspection, and return-to-service load testing.

Service personnel must be qualified in electrical and mechanical service, with LPG work also requiring training in proper fuel handling.

Controller A1 and Generator Diagnosis

The control section explains initialization checks, gasoline fuel priming, voltage regulation, and fault monitoring. The troubleshooting table separates gasoline and LPG checks for overcranking, underfrequency, and unexpected engine stops, helping technicians select the relevant fuel-system tests before replacing parts.

Electrical variants: Component tests cover control switch S1 and start solenoid K1, plus battery charger VR2, transformer T2, and voltage trim potentiometer R5 where fitted. Rotor and stator resistance tables distinguish the documented generator configurations.

The 2-pole revolving field generator section includes slip ring refinishing with Onan commutator stone 420-0259. Its repair cautions identify brush damage during improper endbell removal or installation, and damage to the bearing and collector ring if the rotor bearing is heated.

Gasoline and LPG Fuel Systems

Gasoline coverage includes carburetor and intake manifold removal, choke service, air-preheater inspection, and fuel pump pressure testing. Carburetor service is limited to replacement and the documented adjustments; internal overhaul is excluded.

The LPG section covers the low-pressure vapor-withdrawal system, demand-regulator lock-off pressure checks, automatic priming-solenoid testing and adjustment, and fuel-shutoff solenoid leak and operation tests. LPG carburetor mixture settings are factory sealed.

Governor procedures address speed, droop, and sensitivity adjustment using a frequency meter and load bank. The fuel sections also explain throttle-stop settings in relation to governor response.

Engine Block and Starter Repair

Engine block assembly documentation includes leak-down test interpretation, cylinder head tightening patterns, and step-by-step procedures for valve seat regrinding and valve lash adjustment.

Deeper repair coverage addresses cylinder bore inspection and deglazing, piston ring checks, crankshaft clearances, and camshaft/crankshaft/balancer gear alignment. The technical reference also provides fuel-specific spark plug settings and torque tables covering air deflector bolts and generator fasteners.

Crankcase ventilation service addresses the breather reed valve and blocked passages. Starter coverage includes armature ground and open-circuit tests, short-circuit testing with a growler, brush inspection, and reassembly.

Wiring References and Service Scope

Visual references include the Controller A1 Block Diagram, engine wiring harness drawings, AC Reconnection Diagrams, Valve Clearance Adjustment, and Starter Assembly views. The electrical appendix separates the generator wiring configurations and shows grounded- and isolated-neutral reconnections.

Removal guidance distinguishes compartment and under-floor RV installations; access depends on the vehicle. Operator, installation, and parts manuals are separate publications covering routine operation, installation requirements, and replacement-parts identification; they are not included in this PDF.

Follow the manual's precautions for high-voltage generation, pressurized LPG, and exhaust gases during service.

Engine Clearances and Bolt Torques: A Preview

Examples from the engine inspection tables include an intake valve stem-to-guide factory clearance of 0.0010–0.0022 inch (0.025–0.055 mm) and a cylinder head distortion limit of 0.0157 inch (0.4 mm). These dimensions apply to standard-size parts at 70°F (21°C).

The engine torque table specifies connecting rod bolts at 18–20 lb-ft (24–27 N-m), with clean threads lubricated with new engine oil. Separate entries distinguish the cylinder head bolt groups and their tightening requirements.
