Onan Gasoline Engine Service Manual (16, 18, 20 & 24HP) - John Deere

Comprehensive service documentation for Onan 16, 18, 20 & 24 HP Gasoline Engines, covering repair procedures, specifications, and diagrams. Ref: CTM2.

4.7starstarstarstarstar_half(3)
visibility Preview Available
Onan Onan Gasoline Engine Service Manual (16, 18, 20 & 24HP) - John Deere manual page preview - page 1 of 224

Sample pages from the Onan Gasoline Engine Service Manual (16, 18, 20 & 24HP) - John Deere manual

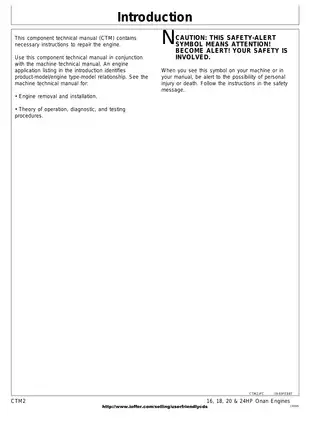

Onan Onan Gasoline Engine Service Manual (16, 18, 20 & 24HP) - John Deere manual preview page 1 - thumbnail

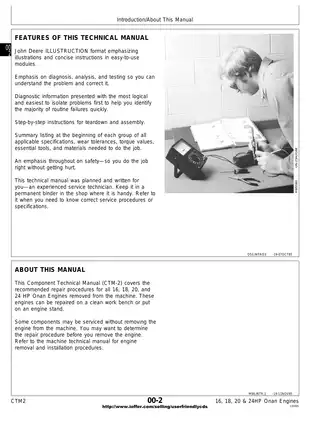

Onan Onan Gasoline Engine Service Manual (16, 18, 20 & 24HP) - John Deere manual preview page 4 - thumbnail

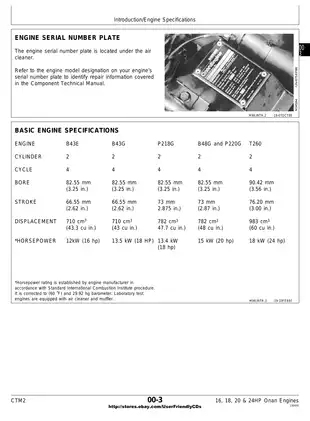

Onan Onan Gasoline Engine Service Manual (16, 18, 20 & 24HP) - John Deere manual preview page 5 - thumbnail
info_outline Click thumbnails to preview different pages
$13.80 (incl. VAT) Instant Download / No Shipping Fees
1 copies sold
OR BUY NOW
verified_user
Lifetime Access
Re-download anytime
flash_on
Instant Download
Get it immediately
lock
Secure Payment
PayPal

Document Details

keyboard_arrow_down
Document Number / Seller:
25884 / William Allen
File Size:
16.96 MB
File Type:
PDF
Language:
English
Pages:
224
Printable:
Yes
Category:
Gasoline-Engines
Last updated / verified
May 5, 2025

Models Covered & Key Technical Specifications

Onan Engines (CTM2) - John Deere 16, 18, 20 & 24HP Documentary Advanced Repository | Portfolio.

  • System Storage Capacity: 16.96 MB is the file size for the complete manual Documentation.
  • Core Tolerance Values: 2 ± 1 N·m (18 ± 9 lb-in.) specifies the torque for the Breather Valve Cover Bolt Setting.
  • Specific Consumption Data: 11 ± 3 N·m (97 ± 27 lb-in.) indicates the torque for the lift bracket cap screws Benchmarks.
  • Critical Heat Dissipation: 12 ± 1 N·m (106 ± 9 lb-in.) is the required torque for the starter mounting cap screws Requirements.
  • Universal Footprint Data: 19 ± 2 N·m (168 ± 18 lb-in.) specifies the torque for the Gear Housing Cap Screws Range.
  • Calibrated Tank Capacity: 35 ± 1 N·m (310 ± 9 lb-in.) is the torque for the Bearing Plate Cap Screws Threshold.

Manual Description & Preview

OEM-Grade Performance Training Manual: Engines (Gasoline) Onan Gasoline Engine Service Manual (16, 18, 20 & 24HP) - John Deere Blueprint-Vault

Specification System-Path Calibration-Data
Engine Model John Deere Onan
Horsepower 16-24 HP 12kW - 18kW
Bore 82.55 mm - 90.42 mm 3.25 in. - 3.56 in.
Stroke 66.55 mm - 76.20 mm 2.62 in. - 3.00 in.
Displacement 710 cm³ - 983 cm³ 43.3 cu. in. - 60 cu. in.

System-Identifier: Onan Engines // Repair-Classification: Gasoline Engine Manual // System-Identifier: John Deere

Technical content addresses engine removal, theory of operation, diagnostic, and testing procedures for Onan engines. Detailed diagrams and concise instructions are provided in an easy-to-use format, emphasizing diagnosis and analysis.

H4 Header: Engine Specifications H4 Header: Intake Manifold and Cylinder Heads H4 Header: Flywheel Procedures H4 Header: Camshaft Specifications H4 Header: Starter System Diagnosis

The document includes coverage of engine specifications, intake manifold, and cylinder heads. Brake system specifications are included for reference on torque values. Safety procedures are documented, and fluid capacities are listed within the detailed diagrams. Tool requirements are also documented.

...documents torque specifications for engine components to ensure proper seal compression uniformity.

FAQ

Which specific technical manual publication code identifies this document covering the 16, 18, 20, and 24HP Onan engines? keyboard_arrow_down

Document is identified as the CTM2 Component Technical Manual for the specified John Deere Onan engine models.

Are there specification tables that list torque requirements for fasteners within the intake manifold and cylinder head sections? keyboard_arrow_down

Manual contains dedicated specification tables for the intake manifold and cylinder head components. These tables reference tightening sequences and torque values for the various fasteners used across the engine models.

Is the document organized to include technical reference data for cylinder head flatness and intake manifold configurations? keyboard_arrow_down

Manual features specification sections that provide reference values for cylinder head flatness measured in millimeters and inches. It also includes descriptive data and illustrations for intake manifold assembly configurations across different engine types like the T260 and P218G. This technical content is presented in a modular format to assist with identifying system components and their associated specifications.

What kind of component breakdown information is provided for the breather and air cleaner assemblies? keyboard_arrow_down

Manual includes exploded view illustrations and assembly order references for the air cleaner, breather valve, and manifold cover components.

Does this manual cover the engine model variants listed in the application chart? keyboard_arrow_down

Engine application chart references the specific model numbers for various consumer products, including lawn and garden tractors and front mowers. This coverage preview lists the specific B43, P218, P220, and T260 engine models associated with different equipment machine numbers.
