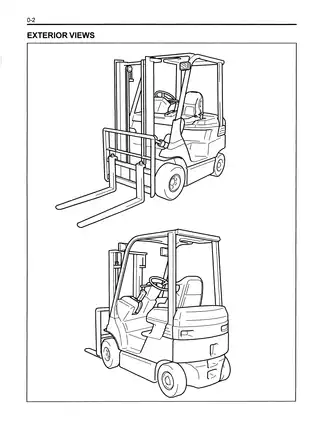

Toyota 7-Series Electric & IC Forklift Repair Manual Set, 1999–2003

Each truck family has its own electrical, drivetrain and material-handling sections. This separation helps technicians select the applicable procedures without working through unrelated forklift configurations.

Engine-overhaul scope: The internal-combustion manuals cover engine removal, installation and related chassis systems. Full internal engine repair requires separate publications: CE602-1 for the 4Y, CE618-1 for the 1DZ-II, C4630 for the G4/GM6-262, and C4615 for the 11Z–14Z engine family. Those engine manuals are not included.

PDF Bookmarks and Wiring-Label Readability

Search and diagram detail: None of the six PDFs provides embedded text search. Section bookmarks provide chapter navigation. Small wiring labels require zooming, and some lettering in the 7FBCU35–55 wiring diagram remains soft at enlarged views.

The ZIP contains six printable English PDFs totaling 3,748 pages, including the 12 foreword and section-index pages and all technical appendices. The publication table gives the individual file lengths.

Forklift Controllers, Drivetrains and Mast Repair

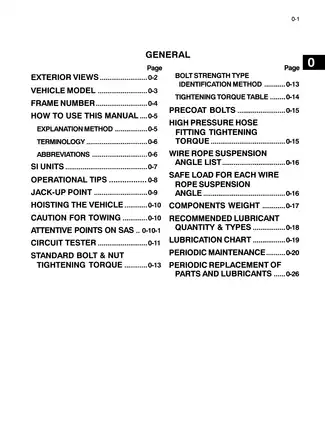

These selected topics illustrate the repair coverage; periodic maintenance charts and vehicle-hoisting references are among the other subjects covered.

• Electrical diagnosis: Controller-board and AC driver tests, contactor-panel inspection, multi-display diagnosis, and fault tracing with or without displayed error codes.

• Electric motors and drive units: Drive- and pump-motor removal, inspection and reassembly, plus electric drive-unit and differential teardown.

• Internal-combustion powertrains: Engine removal, cooling and fuel-system service, torque-converter and transmission repair, clutch-drum inspection, and propeller-shaft service.

• Steering, axles and brakes: Steering-gear and axle service, brake disassembly, bleeding, braking-force checks, and pedal adjustments.

• Masts and hydraulics: Mast and lift-bracket removal, roller adjustment, lift- and tilt-cylinder overhaul, oil-pump testing, and control-valve rebuilding.

• SAS diagnosis and setup: Sensor replacement, matching procedures, and diagnosis of yaw-rate, tilt-angle, load, speed and mast-height inputs.

• Diagrams and service references: Wiring diagrams, connector views, hydraulic circuits, torque tables, wear limits, service standards, and Toyota special service tool references.

It is suited to experienced lift-truck technicians and properly equipped repair shops because the procedures assume electrical test equipment, hydraulic gauges, lifting and support equipment, and Toyota special service tools.

Controller Tests and Configuration-Specific Setup

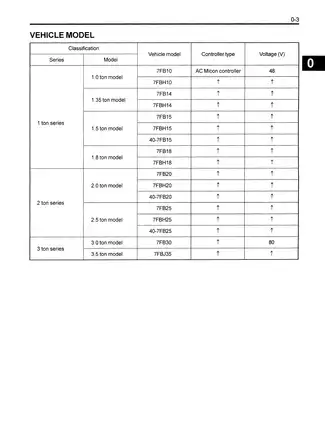

The 7FBCU sections distinguish the 15–32 and 35–55 controller, motor, drive-unit and axle arrangements. They also identify 30-prefix dust-proof trucks and the enlarged battery compartment of the 7FBCHU25 variants. Both the 7FBCU and 7FBEU model tables include 36/48-volt configurations; the three-wheel 7FBEU manual addresses its traveling and material-handling AC drivers separately.

The 7FB material includes battery-compartment dimensions, required battery weights, and on-vehicle and off-vehicle charger service with timer tests. These model-specific references support battery and charger selection before electrical testing begins.

Plug-in analyzer functions, tuning, option setting, tire-constant setup and SAS matching extend the diagnostic coverage beyond fault-code lists. Connector measurements and troubleshooting charts help distinguish harness faults from controller-board or sensor problems.

The 7FB controller reassembly instructions warn that omitted TMD/TMP insulating sheets can damage the transistors; missing insulation beneath the MB contactor can cause a critical failure.

Engine Applications, Transmissions and Brake Options

The smaller gasoline truck families use the 4Y, while the 7FDU15–32 applications use the 1DZ-II diesel. The larger truck model tables identify G4/GM6-262 gasoline and 13Z diesel applications. Related service includes diesel fuel-system bleeding, engine-speed adjustment and, for applicable G4 configurations, electronic-governor self-diagnosis and sensor adjustment.

The 7FGU/7FDU15–32 manual separates the standard one-speed torque-converter transmission from the optional two-speed arrangement for pneumatic-tire 2–3 ton trucks. It includes internal transmission procedures, oil-pressure measurement and stall testing, along with EZ Pedal and direction-switch service.

Brake coverage also varies by truck family. The 7FBCU manual includes optional dead-man brake components, booster service and separate bleeding procedures, while the 7FBEU manual addresses disc-brake adjustment.

Mast Adjustments, Hydraulic Controls and SAS

Step-by-step procedures cover V, SV, FV, FSV and QFV mast configurations where applicable, including lift-cylinder rod shim adjustment to address uneven lifting. Hydraulic checks include natural-drop, forward-tilt and cylinder-leak tests.

The 7FBEU manual separates standard and mini-lever hydraulic controls. Its mini-lever material includes control-valve disassembly, lever-box service and material-handling operation start-timing adjustment.

SAS sections connect sensor service with the required matching or resetting work. The hydraulic cautions also explain how careless relief-valve adjustment can generate excessive pressure and damage the oil pump or related components.

Battery isolation, supported masts and loads, released hydraulic pressure, brake safety, and approved lifting practices remain mandatory throughout service work.

Wiring References and Toyota Diagnostic Tools

Electrical references include SAS and non-SAS wiring diagrams, CPU and DC/MD board connector views, and separate 15–32 and 35–55 connector and connecting drawings. Hydraulic circuit diagrams, control-valve sectional views and engine sectional views support component identification and system diagnosis.

SST references include Toyota electrical tester 09082-00050 and AC controller diagnosis kits 09230-13130-71 and 09230-21440-71. The associated harness instructions identify the applicable connectors and checks.

Selected Battery Charge-State Standards

The 7FB battery service standards specify an electrolyte specific gravity of 1.280 at full charge and 1.150 at the end of discharge, both referenced to 20°C (68°F). These values accompany the battery inspection and electrolyte-checking material.
