Toyota RAV4 1995–1998 Service & Repair Manual Collection

The service articles combine mechanical procedures with shared Toyota/Lexus reference material. The separate electrical volume covers a different RAV4 model series, while the EV bulletins supplement specific battery and diagnostic work.

Coverage limits: Internal engine repair is for the 3S-FE. Other engine sizes appear in shared service material, not additional engine-overhaul chapters. The 4Runner content is limited shared service information and an SRS article; the EV files are supplements, not a complete EV repair manual.

The May 2000 EWD provides electrical coverage for its listed series. It has gaps in RHD harness-routing, door-lock and ground-point material, and its overall SRS sheet is omitted; the separate SRS system circuit is included. Its foreword refers mechanical repair to RM777E, RM773E and RM774E, with NCF185E for new-car features. These publications and the EV manuals RM845U and RM600-U are outside this collection.

PDF Search, Diagram Detail and File Contents

Text search and wiring detail: Service-article text is searchable, but embedded diagram labels and the EV003-99 correction-page content are not consistently searchable. The two EWD files have no text search. None of the PDFs has embedded bookmarks, and small wiring labels require zooming.

The ZIP contains 49 printable PDFs totaling 1,808 pages: 1,632 service-article pages, 167 EWD pages and nine EV-bulletin pages. The EWD count includes its two PDF pages bearing the front and back covers; the EV correction pages are already included in the bulletin total.

Engine, Transaxle and Circuit Coverage

The following selected contents outline the main repair areas rather than reproduce the complete contents list. Other topics include cruise-control fault diagnosis and vacuum-hose routing.

• Engine repair: 3S-FE removal, cylinder-head and valve-train work, timing-belt installation, internal inspection, crankshaft seals, water pump, oil pump and oil cooler.

• Automatic transaxles: RAV4 A540H diagnosis and overhaul, clutch-and-brake application charts, road and pressure tests, plus A241E/A540H fluid service and linkage adjustments.

• Manual transaxles and driveline: E250/E250F disassembly, inspection and reassembly, bearing-preload and shim selection, axle shafts, rear differential, center differential lock and transfer-case overhaul.

• Brakes, suspension and steering: ABS fault isolation, disc/drum service, front and FWD/4WD rear-suspension work, power-steering pressure tests, pump repair and rack overhaul.

• HVAC and body electrical: Manual A/C and heater diagnosis, cooling-fan tests, starter and charging-system service, instruments, locks, windows, mirrors, sunroof and wiper circuits.

• Restraints and wiring: SRS code diagnosis and component service, system wiring diagrams, connector views, relay locations, harness routing, ground points and current-flow charts.

This material is suited to technicians and experienced repairers who can use electrical test equipment and carry out component measurements; transaxle overhaul and SRS work assume workshop knowledge and the specified tools.

3S-FE Internal Repair and Timing Work

The paired engine articles provide step-by-step procedures for valve-clearance inspection and shim selection, engine removal and installation, cylinder-head and manifold work, and camshaft and valve-lifter service.

Internal inspection covers pistons, connecting rods, crankshaft, bearings and cylinder block. Bearing-size markings, wear limits and assembly data support parts selection during repair. Lubrication sections include oil-pan, oil-pump and oil-cooler service, with crankshaft-seal and water-pump procedures in the engine articles.

The on-vehicle adjustment article adds ignition-timing checks, throttle-position-sensor tests and idle-speed specifications. Idle speed is ECM-controlled rather than manually adjustable.

A540H Overhaul and E250/E250F Assembly

Automatic transaxle: A540H diagnosis includes time-lag, shift and lockup checks, stall testing, hydraulic-pressure testing and torque-converter checks. Internal procedures cover clutches, brakes, planetary gearsets, overdrive, differential and final drive, with check-ball layouts, spring specifications, thrust components and clutch-pack measurements.

The A540H valve-body section explains how plunger-sleeve and retainer position affects line pressure. Its marked assembly positions matter when interpreting the overhaul instructions.

Manual transaxles: E250/E250F coverage includes input and output shafts, oil pump, shift mechanism, forks, synchronizers and differential assemblies. Major housings use liquid gasket rather than conventional cut gaskets, with preparation and curing requirements specified.

Related chapters cover front and rear axle shafts, drive shaft, rear integral differential and center differential lock. The A540H transfer-case article adds control-solenoid testing and internal overhaul. A340E/A340F/A340H information belongs to the limited shared 4Runner service material, not a complete A340 internal-overhaul manual.

Brake, Suspension and Steering Procedures

ABS coverage includes code retrieval and clearing, relay and actuator tests, wheel-speed circuits, 4WD deceleration-sensor diagnosis and pump-motor faults. Conventional brake material covers bleeding, caliper and wheel-cylinder service, master-cylinder work, parking-brake adjustment, and pedal or booster settings.

Suspension articles include hub and wheel-bearing work, lower control arms, ball joints, stabilizers and RAV4 rear-suspension components. Power-steering procedures extend to seal and bushing inspection, control-valve setup and rack assembly-preload checks.

HVAC, Starting and Electrical Fault Tracing

Manual A/C material covers performance testing, amplifier circuits, thermistor and pressure-switch diagnosis, compressor controls and major refrigerant-system components. Heater sections add blower, resistor, relay and control-cable checks.

Starter coverage includes on-vehicle and bench testing, solenoid checks and overhaul. Charging-system material covers regulated output, load tests, brushes, rotor, stator and diodes.

The 1999 diagrams include engine-performance, anti-lock brake, A/T, center-differential-lock and power/ground circuits. Together with component-location tables and connector views, these let a repairer follow a circuit from its test terminal to the relevant harness connection. The later EWD adds current-flow charts, connector lists and connector part numbers for its own model series.

SRS Procedures and EV Supplements

SRS material covers modules, front sensors, pretensioners, spiral cable, sensor assembly, post-collision inspection and circuit-specific diagnosis. Airbag and steering-column work requires system deactivation and the specified backup-power waiting period.

The 4Runner SRS article warns that incorrect spiral-cable alignment can sever the internal cable and disable the restraint system. Tool references include diagnosis check wire 09843-18020 and deployment equipment 09082-00700/09082-00740; other sections specify valve-clearance adjuster 09248-55040 and A/T tool set 09350-32014.

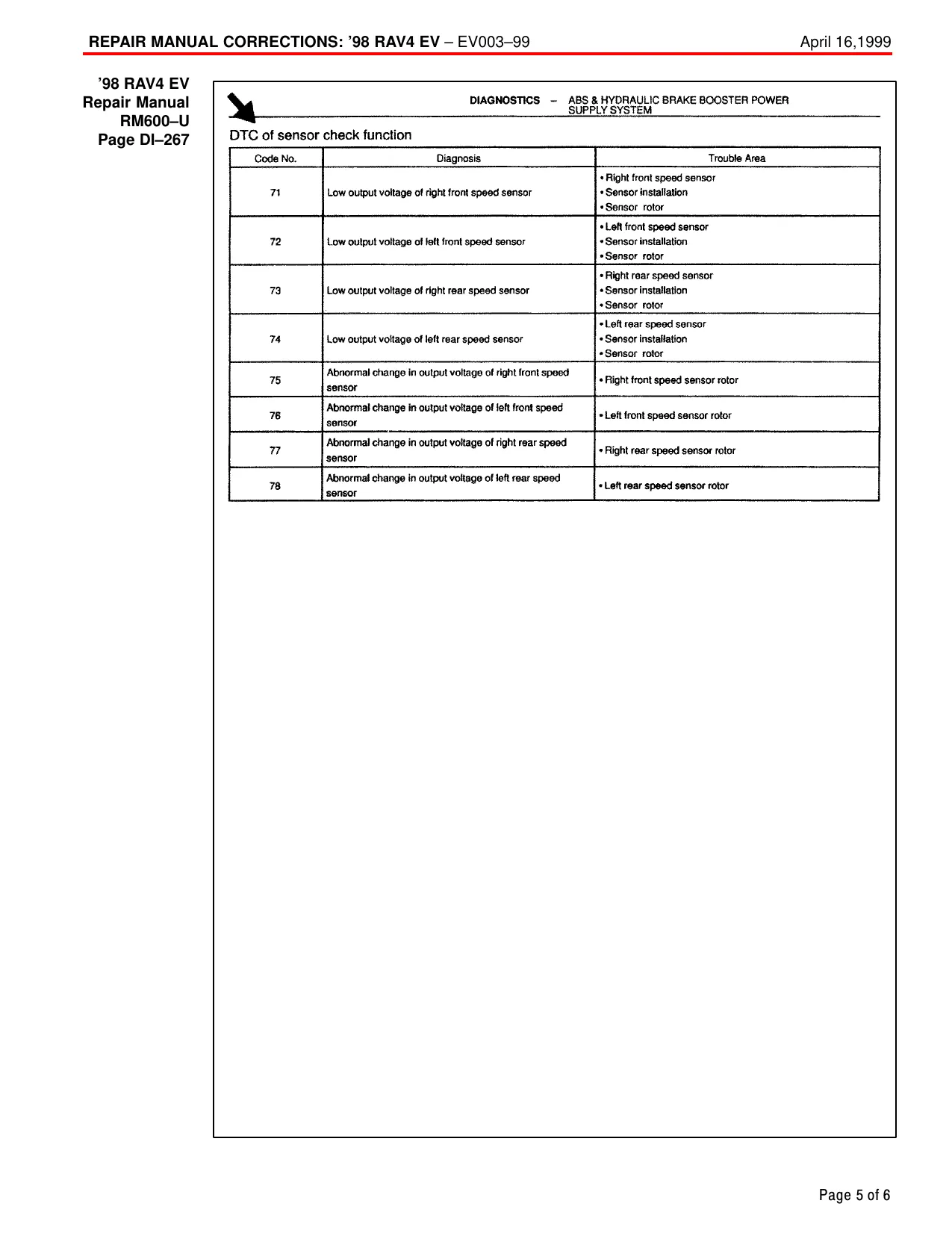

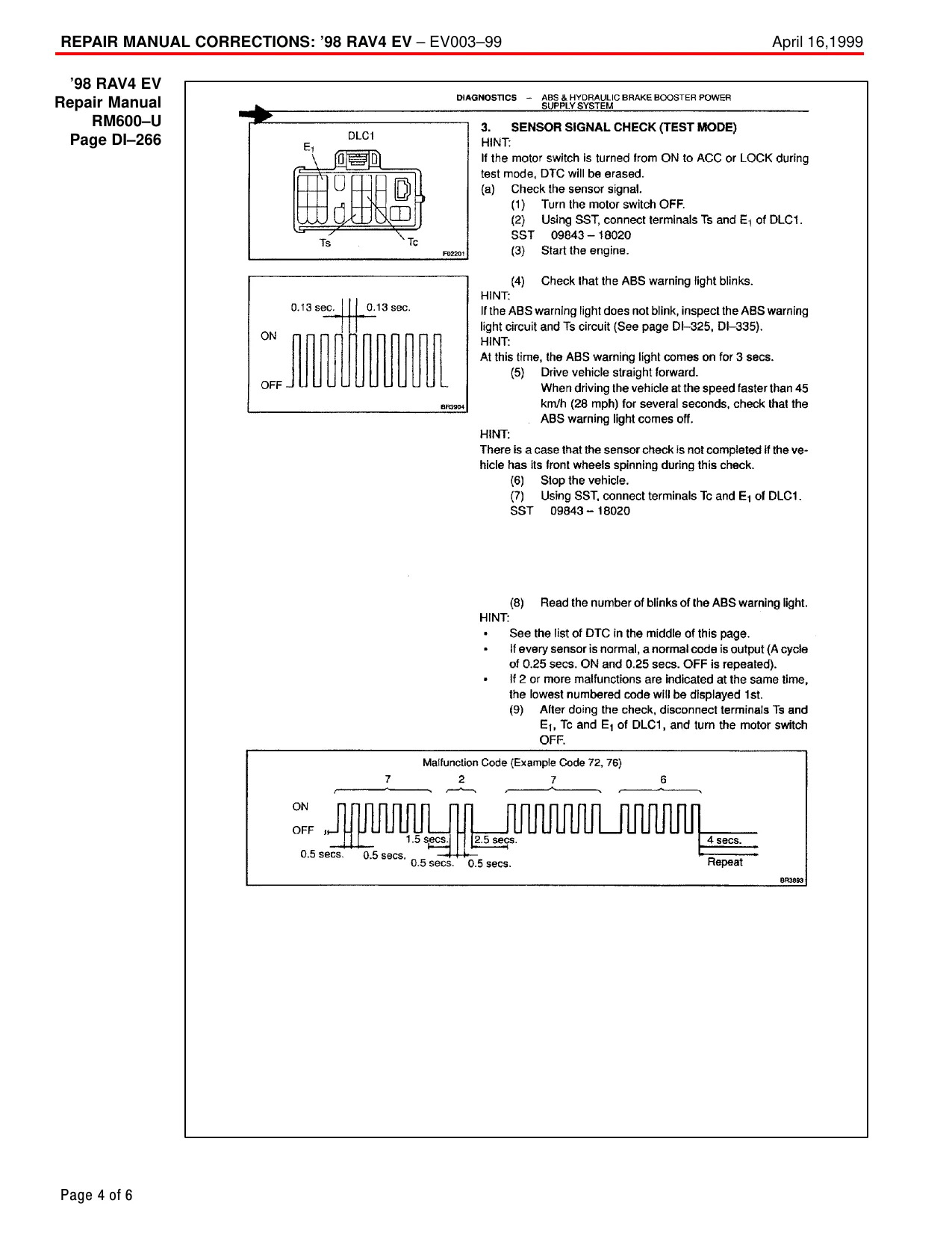

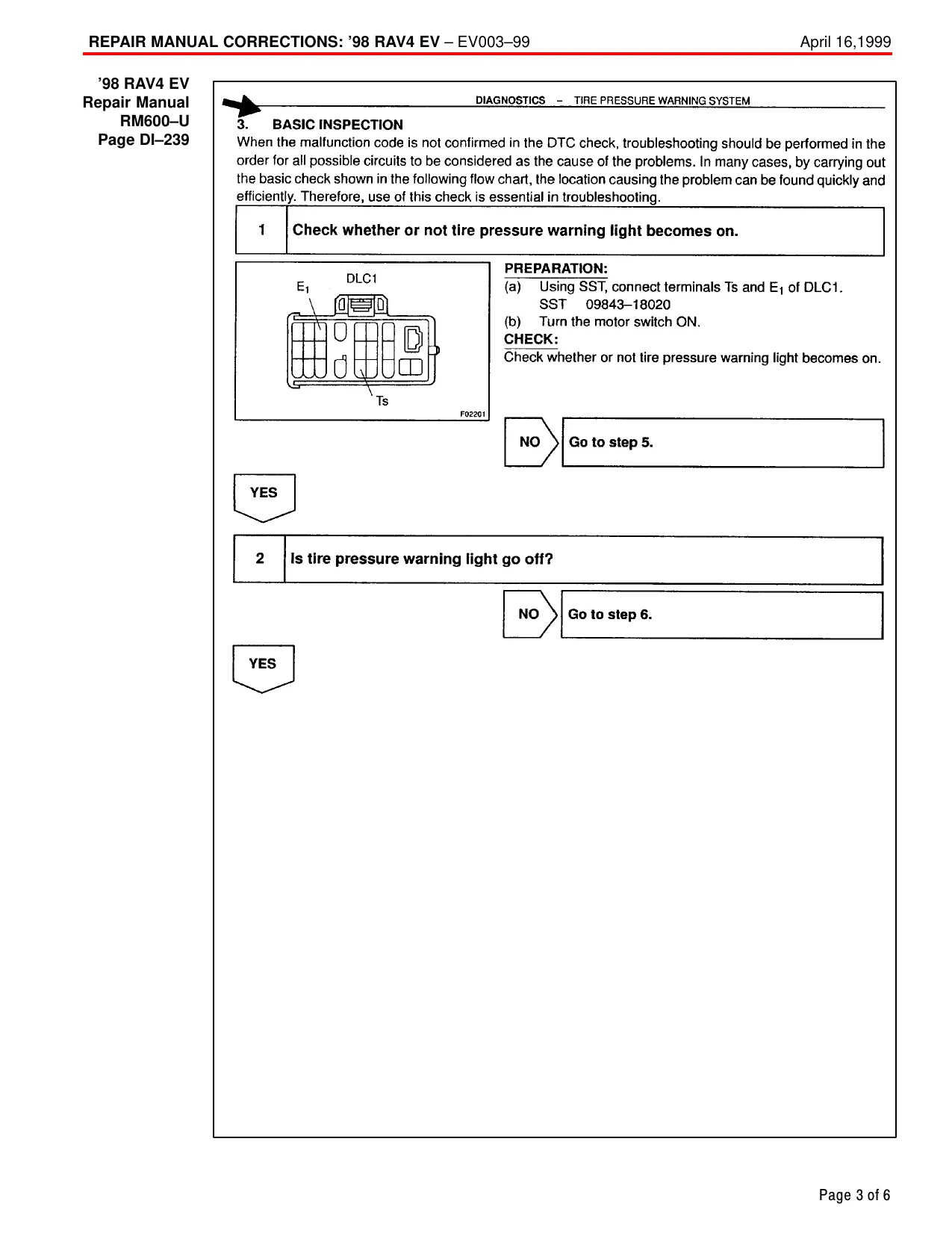

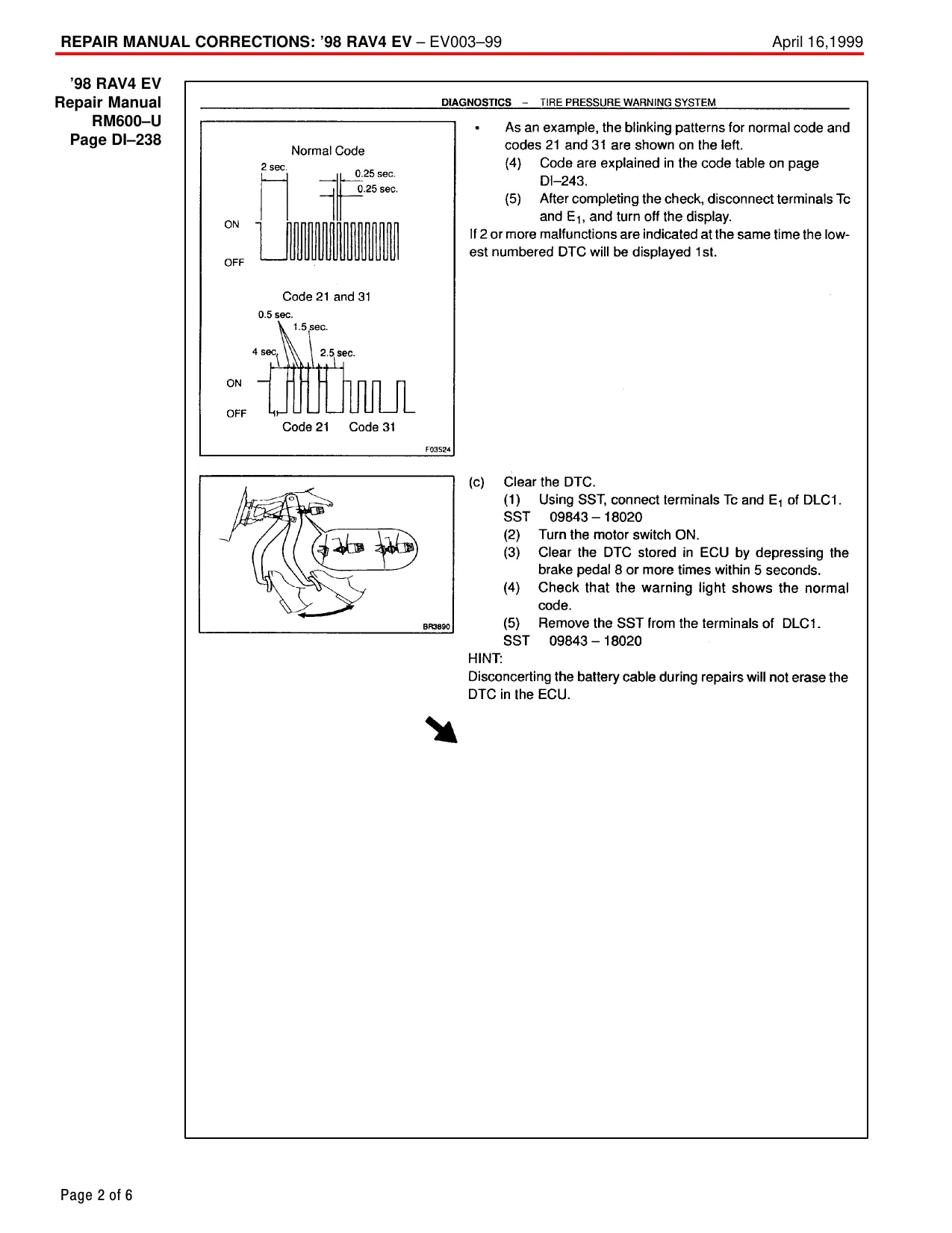

EV002-01 addresses traction-battery terminal deposits associated with DTC 2846/22 and carries separate high-voltage isolation, insulated-glove and voltage-verification requirements. EV003-99 supplies five correction pages covering tire-pressure warning, ABS sensor checks and regenerative-brake diagnostics.

Crankshaft and Synchronizer Specification Examples

The 3S-FE crankshaft table lists standard end play of 0.020–0.220 mm and a 0.300 mm wear limit, alongside bearing-size and oil-clearance data for internal inspection.

For E250/E250F overhaul, minimum clearance between the synchronizer ring back and gear spline end is 0.8 mm for first and fourth gears, compared with 0.7 mm for second and third gears.
