John Deere 544C Loader Technical Manual 1984 (P/N TM-1228)

1,389 Pages • Printable PDF • 261.84 MB • Download

4.6starstarstarstarstar_half(5)
$37.70 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

John Deere Models Covered & Key Technical Specifications

Model: 544C (Power Shift planetary transmission)

Model Years: 1980–1984 (1980, 1981, 1982, 1983, 1984)


  • Engine: John Deere turbocharged diesel, 6-cylinder, 4-stroke cycle

  • Engine displacement: 414 cu. in. (6.785 L)

  • Horsepower: 110 net hp (82 kW) at 2200 engine rpm

  • Torque converter: Twin turbine with 5.19 to 1 multiplication ratio

  • Hydraulic pump flow: 49.75 gpm (3.14 L/s) at 600 psi (4137 kPa) and 2200 engine rpm

  • Maximum lift capacity (at height): 10,325 lb. (4683 kg)

  • Turning radius: 14 ft. 7 in. (4.44 m)

  • Fuel capacity: 40 U.S. gal. (151.4 L)

John Deere Manual Features & Selected Content Preview

John Deere Dubuque Works 544C Loader Technical Manual, P/N TM-1228 (Feb-84) covers machine repair and system testing, including optional front differential lock, emergency steering, cab or canopy equipment, and the detachable backhoe.

PDF Search, Bookmarks, and Foldout Diagrams

Finding procedures and circuit details: Most text is searchable through an existing OCR layer, but some drawing pages have no searchable text. Embedded bookmarks cover the major sections and many individual procedures; some entries land on the wrong page. Small wiring codes and hydraulic schematic labels require zooming.

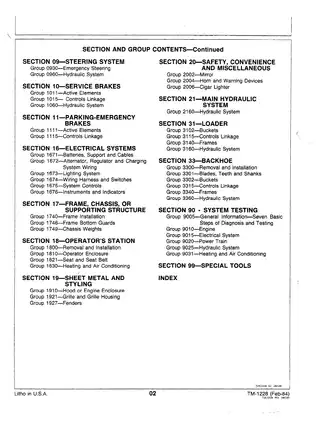

One printable PDF contains 1,389 pages, including the original front cover, two unnumbered blank pages, and one rear safety page.


Engine Overhaul, Power Shift, and Loader Hydraulics

The following selected repair topics show the scope of the manual rather than its complete contents. Further examples include cold-weather starting-aid service and windshield-wiper adjustment.

  • Engine repair: Step-by-step removal, installation, break-in, and internal repair of the crankshaft, main bearings, camshaft, timing gears, pistons, liners, cylinder head, and valves.

  • Transmission and driveline: Planetary Power Shift and twin-turbine torque-converter disassembly and reassembly, range clutches, output shafts, axles, differential lock, U-joints, and planetary final reductions.

  • Steering and brakes: Steering-valve and metering-pump repair, steering and feedback cylinders, accumulator charging, emergency steering, wet-disk brakes, hydraulic bleeding, and parking-brake repair and adjustment.

  • Hydraulic assemblies: Closed-center pump and module repair, open-center loader pump and control-valve overhaul, cylinder and reservoir service, and third-function/multi-purpose bucket hydraulics.

  • Loader, backhoe, and frames: Boom and tilt-linkage repair, bucket work, frame separation, articulation-pivot overhaul, and detachable-backhoe removal, installation, and component repair.

  • Electrical and system diagnosis: Starting and charging tests, control-circuit fault tracing, wiring diagrams, hydraulic pressure and flow tests, leakage checks, and operating-cycle checks.

John Deere wrote this manual for experienced service technicians; it assumes the shop skills and equipment needed for component overhaul and system testing.

Engine Work and Fuel-Injection Limits

The engine section also covers connecting rods, the oiling system, turbocharger inspection and rebuilding, water-pump repair, starting-motor overhaul, flywheel work, and the damper drive. Cooling-system coverage includes thermostat testing and radiator removal and installation.

Fuel injection: Pump and nozzle removal, installation, pump timing, fuel-system bleeding, and nozzle seal replacement are included. Internal pump repair and nozzle testing and repair are referred to the separate TM-1214, Roosa Master Fuel Injection Equipment, which is not included.

Driveline Setup and Hydraulic Repair Details

Transmission coverage continues into the control valve, oil pump, cooler, filter, and clutch cut-off system. Axle work goes beyond seal replacement to bevel-pinion cone-point setup, bearing preload, backlash, rolling-drag checks, and differential-lock leakage testing.

The differential chapter identifies the ring gear and spiral bevel pinion as matched parts and specifies the associated left-housing replacement when a destroyed pinion is replaced. Transmission assembly instructions also flag housing-cover installation as a risk to the high-range clutch piston-housing seal.

Pump versions: Separate procedures distinguish hydraulic pumps and stroke-control valves with and without a serial-number plate. Loader-system flushing coverage distinguishes abrasive contamination from severe failures producing visible metal debris; retained contaminants can shorten replacement-pump life.

Backhoe repair extends to the swing frame, dipperstick, stabilizers, control valves, quick-connect adapters, and individual hydraulic cylinders. Assembly illustrations show shim placement, seal direction, bearing orientation, and component matching.

Fault Isolation, Schematics, and Shop Equipment

Section 90 separates fault isolation from component repair. Its seven-step diagnosis method and machine-specific tests help organize troubleshooting before assemblies are removed. Engine compression, lubrication, and turbocharger-boost checks sit alongside transmission stall and hydraulic-flow tests.

Closed-center tests address steering, brakes, and differential lock; open-center tests cover loader-pump output and control-valve leakage.

Electrical coverage traces lighting, gauges, air conditioning, return-to-dig, boom-height kick-out, clutch cut-off, differential lock, and emergency-steering circuits.

Visual references include the Electrical Wiring Diagram, Electrical Schematic, closed-center hydraulic schematics with backhoe or emergency steering, open-center hydraulic schematic, power-flow views, and the air-conditioning schematic and diagnostic flow chart. The Backhoe Function Chart supports function-specific leakage testing.

Test procedures identify Service-Gard equipment, including the D-01080AA Hydraulic Analyzer, D-01084AA Tachometer/Temperature Reader, and D-19001TT Volt-Ohm-Amp Meter. Illustrated tool identification covers assembly-specific pullers, drivers, stands, and seal tools. Factory reference data supplies component-specific torque tables, fluid capacities, wear limits, clearances, adjustment data, and electrical test specifications.

Cab Service and Supporting References

Cab and canopy procedures cover removal and installation. Heating and original R-12 air-conditioning sections include diagnosis, compressor service, leak testing, evacuation, and charging.

The ILLUSTRUCTION format combines large service photographs, labeled components, section views, and short procedure blocks. This is the machine-specific half of John Deere's FOS/Technical Manual system; the separate FOS books provide basic theory and general training.

Detailed periodic servicing is referred to the machine's service chart and operator's manual; tire mounting and demounting refer to the separate Off-The-Road Tire Maintenance Manual. Before hydraulic or structural repair, follow the manual's procedures for lowering or securely supporting raised equipment, relieving pressure, discharging accumulators, and isolating the batteries.

A Preview of Differential Setup Specifications

The bevel-pinion shaft rolling-drag specification is 2–10 lb-in (0.2–1.1 N·m), checked during adjustment without the oil seal installed.

Backlash between the spiral bevel gear and pinion is 0.007–0.015 in. (0.19–0.39 mm). The axle chapter includes dial-indicator checks and shim adjustment for this setting.
