John Deere Models Covered & Key Technical Specifications

Models: 550A Crawler Bulldozer, 555A Crawler Loader

Model Years: 1983–1986 (1983, 1984, 1985, 1986)

Sub-models / Variants: 550A (6405, 6410, 6415 dozer blades; 9300 or 9550 backhoe); 555A (9300 backhoe).

Winch serial breaks: (-390307) / (390308-) — clutch-cover and piston-seal variants.


  • Engine coolant capacity: 5 gal (18.9 L)

  • Transmission capacity: 13.5 gal (51 L)

  • Transmission type (550A and 555A): Torque converter with full power shift; 3 forward and 3 reverse speeds.

  • Fuel tank capacity: 36 gal (136 L)

  • SAE operating weight (550A with 16 in. shoes): 13,510 lb (6126 kg)

  • SAE operating weight (555A): 18,800 lb (8526 kg)

  • Torque wrench tolerance: +/- 10 percent

John Deere Manual Features & Selected Content Preview

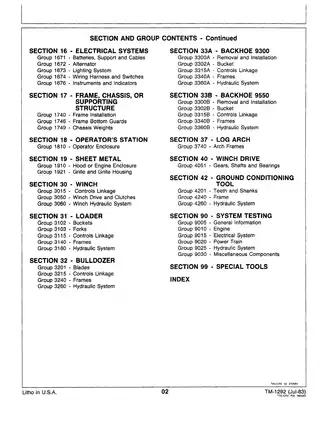

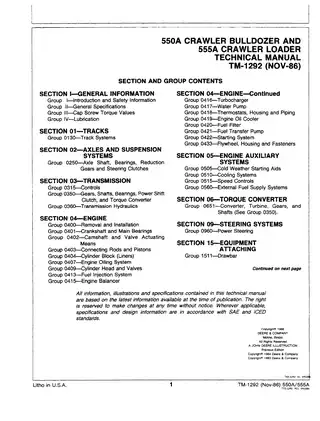

This John Deere technical manual is publication TM-1292 (November 1986) for the 550A Crawler Bulldozer and 555A Crawler Loader.

Bookmarks, Text Search, and File Details

Search and diagram detail: OCR text supports searches across most service sections, with recognition errors and gaps in some hydraulic pages and diagram labels. Embedded PDF bookmarks link to sections and repair procedures. Small wiring codes require zooming.

Supplied as a single printable 896-page PDF in English, including two cover pages and 59 pages that are blank or contain only headers and footers.


Crawler Powertrain, Undercarriage, and Hydraulic Repair

These selected repair and diagnostic topics outline the manual's coverage. Other examples include water-pump service and roll-over protective structure (ROPS) inspection.

  • Undercarriage and steering clutches: Step-by-step track-chain removal and press work, sprocket and track-frame service, carrier rollers, front idlers, recoil springs, hydraulic track adjusters, wear measurement, final-drive overhaul, bearing preload, steering clutches, and brake bands.

  • Powertrain overhaul: Torque-converter and power-shift housing teardown, forward/reverse and range-clutch service, countershaft and bevel-drive work, ring-and-pinion setup, transmission pump repair, and control- and selector-valve service.

  • Engine repair: Engine removal and internal repair, including crankshaft, pistons, liners, timing gear train, cylinder head, and turbocharger; fuel-injection timing and system bleeding.

  • Electrical diagnosis: Starting-motor and alternator repair, starting- and charging-circuit tests, electrical schematics, wiring layouts, and return-to-dig circuit troubleshooting.

  • Working equipment: 6405, 6410, and 6415 dozer blades; loader and multi-purpose buckets; lumber or pulpwood forks; loader boom and return-to-dig linkage, with pump, valve, cylinder, and frame service.

  • Attachments: Separate 9300 and 9550 backhoe repair sections, plus winch drive and hydraulics, ripper, log arch, and drawbar service.

  • System testing: Engine, powertrain, hydraulic, track, backhoe, and winch troubleshooting, including pressure, flow, pump-efficiency, and cylinder-drift tests.

John Deere wrote this manual for experienced service technicians; it assumes established shop skills and access to the specified service equipment.

Blade, Backhoe, and Steering Configurations

The 6405 uses its own angling frame, mounting frame, and C-frame procedures. The 6410 and 6415 share boom-and-lift-frame coverage but retain model-specific blade removal instructions.

Backhoe compatibility: The 550A uses the 9300 or 9550; the 555A uses the 9300 only. Each has separate frame, control-valve, and cylinder repair coverage.

The 9300 uses a rotary swing cylinder and reservoir; the 9550 uses linear swing cylinders without a reservoir.

Tests and adjustments: System Testing separates loader and dozer torque-converter data, includes lever-steer and pedal-steer clutch/brake adjustments, and provides a hydraulic pump flow-analyzer test for the 555A only.

Winch clutch-cover repair distinguishes the earlier three-packing design from the later single-seal design.

Diagnostic Drawings and Service Tools

Circuit and flow drawings: Electrical System Schematic Diagram and Wiring Harness Layout identify circuits, connections, and wire codes. Power Train Block Diagram, Loader Hydraulic System Operation, Dozer Hydraulic System Operation, and Backhoe Boom Power Circuit Oil Flow show power and oil paths.

Component-location drawings, pressure-test-port identification, operational checkout modules, malfunction charts, and exploded assembly views support fault tracing. The return-to-dig tests, for example, separate electrical faults from mechanical problems so the technician can select the relevant repair section.

Special tools: Group-level tool lists identify the D-01030AA Master Pin Pusher, JD284 Hydraulic Track Adjuster Service Set, JD-292 Torque Converter Box Wrench, and JDE-147 Manifold Pressure Tester by number and use.

Section 99 provides dimensioned drawings for shop fabrication of the final-drive housing lifting tool, sprocket-weight lifting tool, winch lifting tool, and 9300 backhoe swing-cylinder removal bar.

Fuel-Injection Scope and Repair Cautions

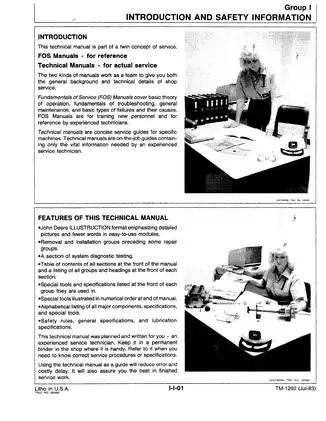

Fuel-injection pump removal, installation, timing, system bleeding, and line/nozzle service are covered. Complete Roosa Master pump and nozzle repair and testing require separate publication TM-1214, which is not included. John Deere's companion Fundamentals of Service manuals provide the basic theory and training material.

Hammering out the track master pin can enlarge the link bore and force replacement of the link. Allowing the injection-pump outlet fittings to turn during line removal can damage the pump internally.

Work involving suspended components, raised equipment, batteries, diesel injection, and high-pressure hydraulics requires the supports, isolation steps, tools, and OEM safety practices specified in the manual.

Selected Track Wear Dimensions and Service Specifications

Repair groups include component torque tables, lubricant recommendations and capacities, bearing and gear clearances, clutch and spring checks, engine wear limits, track measurements, electrical test data, and hydraulic pressure, flow, efficiency, and cylinder-drift specifications. General hardware tables distinguish Grade B, D, and F fasteners.

The track inspection section lists a new-chain link height of 90 mm (3.54 in.) and a minimum recommended link height of 82.8 mm (3.26 in.) for rebuilding a link.

Bushing wear limits distinguish operating conditions: the minimum recommended outside diameter is 48.0 mm (1.89 in.) under high shock loading and 46.0 mm (1.81 in.) under normal loading.
