John Deere 4100 Compact Utility Tractor Technical Manual, 1998–2001 (P/N TM1630)
595 Pages • 1 Printable PDF (English) • Download
John Deere Models Covered & Key Technical Specifications
Models: 4100 Gear Drive, 4100 Hydrostatic Drive, 4100 Narrow Gear Drive (specification tables)
Sub-models / Variants: Gear Drive (dual-range constant-mesh transmission, 8 forward/4 reverse), Hydrostatic Drive (dual-range hydrostatic transmission), Narrow Gear Drive (dual-range constant-mesh transmission, 8 forward/4 reverse)
Model Years: 1998–2001 (1998, 1999, 2000, 2001)
-
Engine: John Deere/Yanmar 3TNE74-JKI, 3-cylinder, 4-cycle diesel
-
Displacement: 1006 cc (61.4 cu in.)
-
Gross Output Power: 14.9 kW (20 hp)
-
Rated Speed: 2650 rpm
-
Maximum Torque: 39.7 lb-ft (53.8 Nm) at 2650 rpm
-
Cooling System: Liquid with pump and radiator
-
Electrical: 12 VDC, 45 amp-hr battery, 20 amp standard alternator
-
Hydraulic System: Open system, 16671 kPa (2418 psi) working pressure

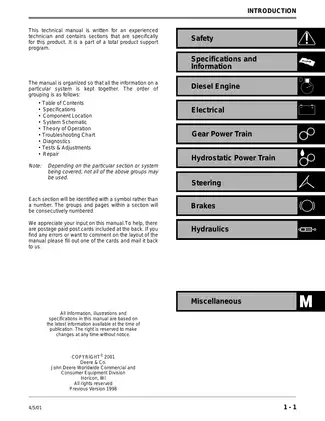

John Deere Manual Features & Selected Content Preview
John Deere’s April 2001 Technical Manual (P/N TM1630) covers 1998–2001 4100 Gear Drive and Hydrostatic Drive compact utility tractors and replaces the February 1998 edition. The general vehicle and hydraulic specification tables also list the 4100 Narrow Gear Drive.
Text Search, Bookmarks, and Wiring Diagrams
Finding procedures and reading diagrams: The PDF supports text search and includes bookmarks for system sections and individual procedures. Zoom in on the wide wiring sheets to read the smaller wire codes, connector IDs, and pin labels.

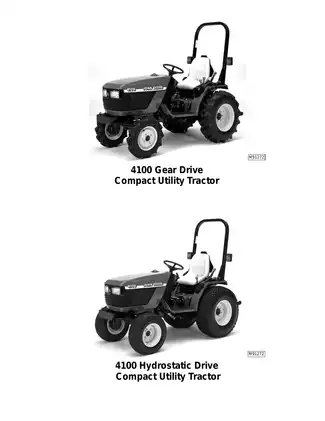

The download contains one printable, 595-page English PDF. The total includes the cover and one unnumbered model illustration page.
Diesel, Drivetrain, and Hydraulic Service
The topics below are selected examples of the manual’s coverage. Other procedures include water pump removal and installation and cruise control linkage checks.
-
Diesel engine repair: Engine removal, cylinder head reconditioning, piston and connecting rod repair, crankshaft inspection, camshaft service, and step-by-step valve clearance adjustment.
-
Fuel and cooling systems: Injection nozzle testing, static timing coverage for EPA and non-EPA engines, fuel system bleeding, and thermostat, radiator, and radiator cap tests.
-
Gear power train: Transmission disassembly and assembly, differential and PTO repair, and Mechanical Front Wheel Drive (MFWD) axle service.
-
Hydrostatic power train: Charge pump, piston pump, and motor service, plus PTO clutch and lubrication pressure tests and transmission neutral adjustment.
-
Electrical diagnosis: North American and road-homologated wiring diagrams, harness layouts, interlock logic, and tests for the charging, starting, glow plug, and fuel shutoff circuits.
-
Hydraulics and steering: Pump flow testing, rockshaft leakage diagnosis, rockshaft control valve repair, selective control valve inspection, and power steering tests.
-
Brakes and chassis: Wet disk brake inspection, pedal and parking brake adjustments, and removal procedures for the three-point hitch, rollover protective structure (ROPS), fenders, and fuel tank.
Written for experienced technicians, the manual specifies the measuring tools, test equipment, and support stands required for the documented work.
Diesel Engine Inspection and Repair
The 3TNE74-JKI chapter provides bearing clearance checks, cylinder bore measurements, valve seat inspection, and component-specific tightening data. The compression test calls for a JDG472 adapter and links low readings to possible piston, ring, valve, and head gasket faults.
Camshaft installation notes identify where the lobes can score the bushings and damage machined bearing surfaces.
Fuel Injection and Cooling Tests
The static timing procedures distinguish EPA and non-EPA engines and explain how mounting-flange shims affect injection timing. The manual restricts work on emissions-certified injection pumps to factory-trained, authorized technicians and specifies complete pump and governor assembly replacement when repair is required.
The cooling section covers radiator bubble and pressure tests, including a separate cap test. The reference section includes inch and metric fastener torque tables, engine oil and coolant requirements, and gear transmission oil viscosity charts.
Gear and Hydrostatic Transmission Diagnosis
Separate chapters cover the gear model’s transmission-driven PTO and the hydrostatic model’s hydraulically operated PTO clutch and brake. The Hydrostatic Schematic for the HST traces the charge pump, valve block, traction circuit, and PTO controls.
The neutral adjustment addresses tractor creep. Separate PTO clutch and lubrication pressure tests help technicians isolate a pressure fault before opening the transmission.
Exploded and component-location views identify transaxle, differential, MFWD final-drive, and PTO components. The tractor-splitting procedure explains how a sticking input shaft can pull out of the transmission and let its O-ring-retained splined collar drop into the tunnel. Both power train chapters identify the component dimensions that describe new parts and are unsuitable as wear limits.
Electrical Circuits and Interlock Logic
The Gear Drive Main Electrical Schematic and Hydrostatic Drive Main Electrical Schematic each have North American and road-homologated versions. Harness views identify wire colors, circuit numbers, and termination points.
The Control Module Logic Table shows which switch states govern the interlocks. Diagnostic tables pair electrical test points with expected readings and fault checks.
Hydraulics, Steering, and Brakes
Pump flow tests distinguish tractors with and without selective control valves (SCVs). Rockshaft lift cycle and leakage tests help diagnose slow lifting and load drop. The SCV procedures identify the old and new valve layouts and specify complete valve replacement where wear or continued malfunction warrants it.
The Hydraulic Schematic traces the rockshaft circuit, and the Hydrostatic Steering System Schematic shows steering flow. The steering tests help isolate leakage to the cylinder or control unit, both serviced as replacement assemblies.

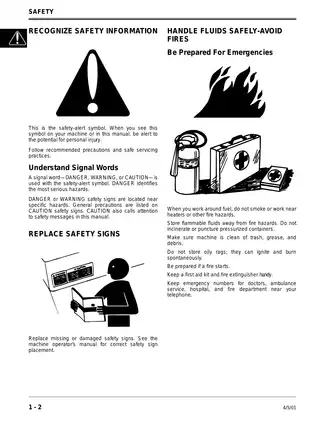

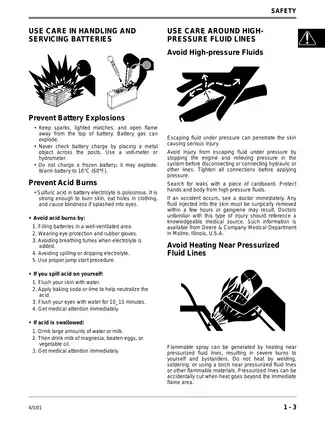

Brake coverage distinguishes North American pedal adjustment from the additional European parking brake procedure. The manual provides safety instructions for working around pressurized hydraulics and supporting heavy assemblies.
Valve Clearance and Thermostat Data Preview
For the 3TNE74-JKI engine, the valve adjustment specifies 0.15–0.25 mm (0.006–0.010 in.) of clearance at both intake and exhaust valves with the engine cold.
For the same engine, the thermostat test specifies initial opening at 69.5–72.5°C (157–163°F) and a minimum lift of 8 mm (0.315 in.) above 85°C (185°F).
