Hewlett Packard Models Covered & Key Technical Specifications

Models: LaserJet 4100, 4100N, 4100TN, 4100DTN

Models & Model Codes:

LaserJet 4100 — C8049A

4100N — C8050A

4100TN — C8051A

4100DTN — C8052A

Model Year: 1999


  • Print Speed: 25 ppm (letter), 24 ppm (A4)

  • Processor: 250 MHz RISC

  • Resolution: 1200 dpi

  • Standard Memory: 16 MB or 32 MB SDRAM (model dependent)

  • Memory Slots: Three 100-pin DIMM slots

  • Input Capacity: 600 to 1,600 sheets (model dependent)

  • Duty Cycle: Up to 150,000 pages per month

  • Interface: IEEE-1284-compliant parallel, PHC, 10/100Base-TX Ethernet (4100N/4100TN/4100DTN)

Hewlett Packard Manual Features & Selected Content Preview

This HP service manual covers the LaserJet 4100 (C8049A), 4100N (C8050A), 4100TN (C8051A), and 4100DTN (C8052A). The English manual is identified as P/N C8049-90920 and covers model-specific options, assembly-level repair, and factory troubleshooting.

PDF Search, Bookmarks, and Diagram Detail

Text access and diagram labels: Main text supports PDF searches, and embedded bookmarks provide access to chapters, service topics, parts lists, and the index. Labels within the engine-controller and paper-feeder I/O diagrams are image-based and are not included in text searches. Small connector and pin labels on these diagrams require zooming.

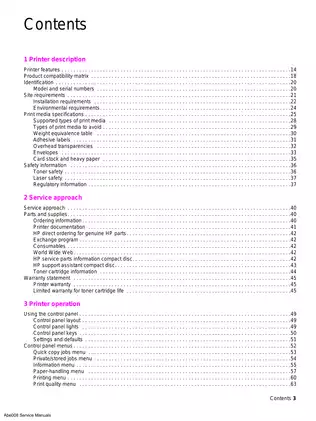

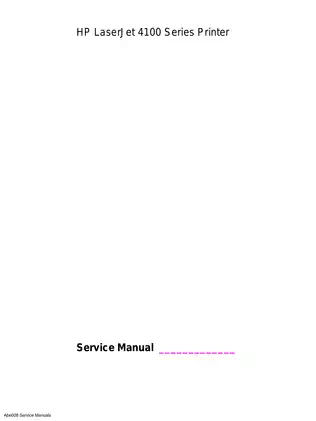

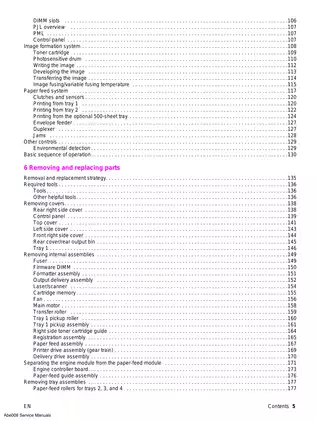

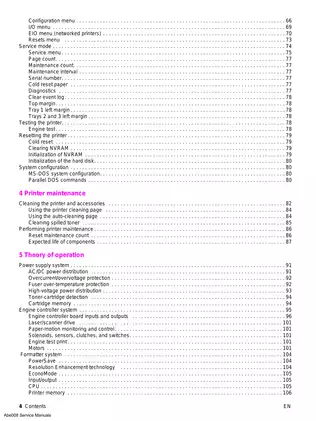

One printable English-language PDF contains 332 pages, including two title pages, nine contents/figure/table-list pages, eleven index pages, and seven otherwise blank pages.


Print-Engine Service and Fault Isolation

The following is a selected content overview. Other topics include print-media compatibility and embedded Web server status and configuration pages.

  • Model and accessory coverage: Base, network, additional-feeder, and duplex configurations, plus compatibility data for envelope feeders, memory and flash DIMMs, EIO cards, and hard disks.

  • Systematic fault isolation: Troubleshooting flowcharts, power-on and blank-display checks, event-log analysis, printer-message tables, paper-path tests, and information-page evaluation.

  • Print-engine diagnostics: Image-defect tables, repetitive-defect ruler, half self-test, drum-rotation check, and high-voltage system checks for image-formation faults.

  • FRU removal and replacement: Illustrated step-by-step procedures for the fuser, formatter, firmware DIMM, laser/scanner, fan, main motor, transfer roller, feed assemblies, and drive mechanisms.

  • Service settings: Page-count and serial-number entry, maintenance-count reset, margin adjustment, cold reset, NVRAM cleanup and initialization, hard-disk initialization, and RAM-disk configuration.

  • Electrical and mechanical references: Engine-controller I/O diagrams, low-voltage power-supply circuit, paper-feeder driver I/O, connector-location views, tray pickup timing diagrams, and exploded assemblies.

The depth of the electrical checks, service-mode work, and FRU replacement procedures makes this manual best suited to printer technicians and experienced repairers equipped for ESD-safe electrical and mechanical service.

Repair Depth and Paper-Handling Systems

This is primarily an assembly-level repair manual. HP directs diagnosis through internal tests and troubleshooting procedures, followed by replacement of field-replaceable units; some mechanical assemblies receive subassembly-level service. Component-level repair of printed circuit boards is outside the supported scope.

The removal chapter also covers the output delivery assembly, registration assembly, printer and delivery drive gear trains, cartridge-memory controller and antenna, engine controller board, and paper-feed guide. Tray-module disassembly includes access to pickup mechanisms, paper-size detection boards, and feeder-controller PCAs.

Required tools include a magnetized Phillips #2 screwdriver, a flat-blade screwdriver, needle-nose pliers, and an ESD mat. Connector tagging and transfer-roller gloves are recommended.

Paper movement and control: The theory-of-operation chapter treats tray feeding, the optional paper feeder, envelope feeder, and duplexer as distinct systems. It explains how sensors, solenoids, clutches, switches, thermistors, and PCAs coordinate paper movement with laser/scanner operation, the main motor, image formation, and variable fusing.

Using the Diagnostic References

The engine test bypasses the formatter, allowing a technician to distinguish a print-engine fault from a formatter-related problem. The half self-test separates image-formation faults from transfer or fusing faults, while the repetitive-defect ruler links recurring marks to particular rollers.

The two-part troubleshooting flowchart and numerical and alphabetical message tables connect symptoms with further checks. Paper-path testing can isolate problems by input source, output bin, and duplex operation rather than treating every jam as the same fault.

Configuration and Post-Repair Setup

The base model differs from the network-equipped variants; the TN adds a paper feeder, and the DTN adds both the feeder and duplexer. Compatibility tables distinguish accessories and voltage-specific maintenance kits before parts are selected.

Formatter replacement: NVRAM initialization aligns the firmware with the replacement formatter. Skipping it can affect print quality, while initialization erases stored page count, serial number, and event-log data. Configuration-page records and service-mode restoration are therefore part of the documented repair process. HP reserves service mode for authorized service personnel.

RAM-disk settings apply only when no optional hard disk is installed and sufficient memory is available. Engine-controller replacement has its own top-margin adjustment procedure, separate from the service-menu margin settings.

Maintenance, Parts, and Handling Cautions

Maintenance coverage includes manual and automatic cleaning pages, spilled-toner cleanup, maintenance-kit contents, counter reset, and expected-life data for pickup and separation parts, the fuser, transfer roller, and cooling fans.

The manual contains 139 figures and 76 tables. Exploded views, replaceable-cable listings, screw identification, and alphabetical and numerical parts lists support parts identification. Fusers, maintenance kits, engine-controller boards, and related electrical parts are separated by voltage version.

Turn the printer off, unplug the power cord and connected cables, and let the fuser cool before removing covers or internal assemblies. The manual also warns that incorrect routing can damage paper-feed wiring, while touching the transfer roller’s black rubber surface can contaminate it and create print-quality problems.

Examples of Registration and Fuser Test Data

The engine-controller replacement procedure specifies a 2 mm (.08 inch) top margin between the paper’s leading edge and the engine-test print pattern, based on the average of several test prints.

For 50.X FUSER ERROR diagnosis, the fuser test data includes a 200–500 kΩ resistance range between J132-1 and J132-2, with the printer switched off and the fuser removed.
