HP Color LaserJet 2820, 2830 & 2840 Service Manual – 2005 (P/N Q3948-90943)

This HP factory service manual (P/N Q3948-90943) covers the Color LaserJet 2820, 2830, and 2840 all-in-one printers. It documents assembly-level repair, fault diagnosis, and replacement parts.

Text Search and Wiring Detail

Search and navigation: The manual text is searchable. The PDF has no embedded bookmarks, and the table of contents links lack working destinations. Small pin, connector, and signal labels in the main wiring diagrams are readable when zoomed in and are outside the searchable text layer.

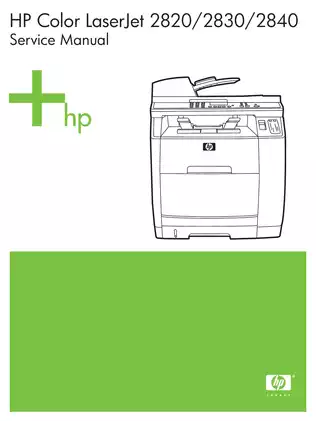

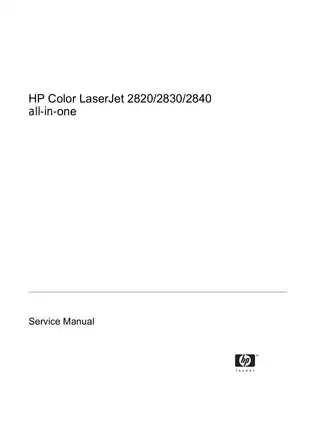

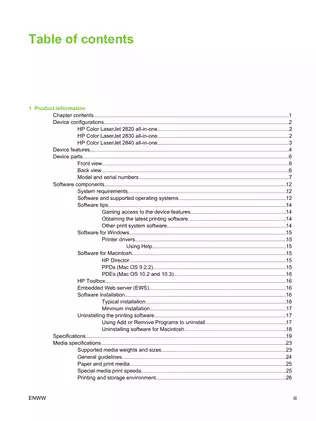

The download is one printable PDF with 438 pages, including the front cover, title page, back cover, and one blank page.

Print Engine, Paper Path, and Scanner Service

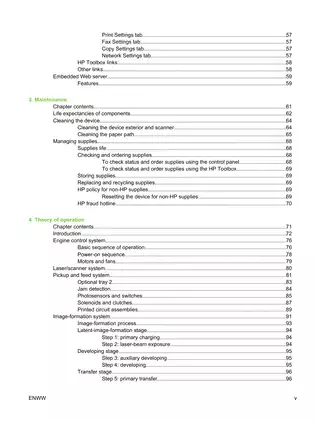

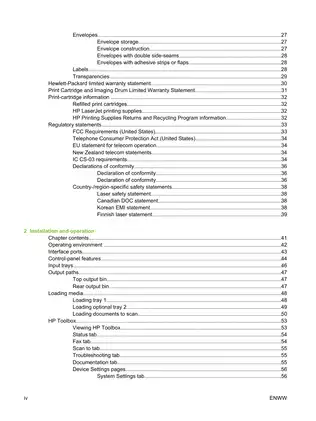

These are selected service topics. The manual also covers the embedded web server and how to record network settings, copy counts, and fault codes before service.

• Print engine theory: Explains how the DC controller coordinates the laser/scanner, power-supply boards, cartridge carousel, image formation, transfer, fusing, and paper-feed sensors.

• Illustrated removal and replacement: Step-by-step procedures cover the fuser, laser/scanner, flatbed scanning assembly, scanner glass, automatic document feeder (ADF) parts, tray rollers, motors, and sensors.

• Drive and chassis repair: Covers the gear and rotary-drive assemblies, carousel removal and gear alignment, registration and transfer components, and the feed-drive shaft and belts.

• Fault isolation: Covers control-panel messages, print and color defects, paper and ADF jams, scan and copy faults, engine and half self-tests, and paper-path testing.

• Fax and memory-card service: Covers fax fault isolation and T.30 protocol tracing on the 2830 and 2840, plus memory-card diagnosis and assembly replacement on the 2840.

• Wiring and parts references: Includes a two-page main wiring diagram, connector-location views, DC controller connections, and 15 numbered parts and assembly figures.

The manual is suited to printer service technicians familiar with multimeter testing and electrostatic discharge (ESD) precautions for printed circuit assemblies (PCAs).

Fax, Tray 2, and Parts Matching

The 2830 and 2840 have V.34 fax with flash storage and a fax-quality post-service test. The 2840 adds memory-card slots and a dedicated post-service test. It also includes the 250-sheet tray 2, which is optional on the 2820 and 2830.

The fax section explains how the formatter and line interface unit (LIU) work together. It distinguishes two regional LIU designs, including differences in line protection, current limiting, metering-tone filtering, and impedance control in the version used primarily in Europe.

The parts tables distinguish copy and fax control panels, regional formatter and LIU exchange assemblies, voltage-specific fusers and low-voltage power assemblies, and 2840-only memory-card parts. The replacement-kit tables and alphabetical and numerical parts lists help match the part to the printer’s configuration.

Maintenance and Reassembly

Component life-expectancy tables accompany procedures for cleaning the exterior, scanner glass, and print path, caring for pickup rollers and separation pads, and handling supplies. The replacement procedures also cover print cartridges and the imaging drum.

A parts-removal chart shows which assemblies have to come out to reach the formatter, DC controller, power-supply boards, and other internal parts. Reinstallation notes cover wire routing, grounding springs, and transfer-roller handling. Incorrect seating of the carousel feet can show up as light printing on the left side of the page. The manual illustrates the pressure-shaft gear position and carousel gear marks, and warns that reversing the feed-drive timing belt can cause feeding problems.

The tool list includes Phillips and Torx drivers, small hand tools, an ESD mat, a penlight, and a multimeter. Service precautions address hot fuser surfaces, high voltage, laser exposure, sharp sheet-metal edges, and two-person lifting when turning the printer over.

Diagnostic Tests and Reference Drawings

The half self-test helps separate transfer or fusing faults from problems earlier in image formation. The manual also covers cartridge high-voltage contact checks, scan and copy quality, service reports and error logs, secondary service-menu functions, NVRAM initialization, printer calibration, and firmware updates or recovery with a recovery DIMM.

The engine-control diagram, pickup and feed diagram, 12-step image-formation diagram, ADF paper-path drawing, and general timing charts show how the systems operate. Electrical service focuses on connector tracing, functional tests, and replacing PCAs as assemblies.

Sample Fuser Test and Print Defect Values

The fuser heating-element test lists normal resistance as 14 ± 10 ohms for the 110 V version and 50 ± 20 ohms for the 220 V version.

The repetitive image defect ruler identifies the pressure roller at a repeat interval of 66.6 mm and the fuser film at 75.6 mm. Those intervals help distinguish two possible sources of recurring marks in the fuser.
