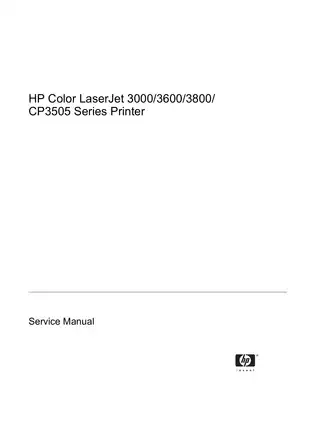

HP Color LaserJet 3000/3600/3800/CP3505 – 2007 Service Manual (P/N Q5982-91034)

This HP service manual (P/N Q5982-91034, Edition 1, June 2007) covers the Color LaserJet 3000, 3600, 3800, and CP3505 printer families. It combines operating theory, assembly-level repair procedures, diagnostics, and model-specific parts information for base, network, duplex, and additional-feed configurations.

Searchable Text, Bookmarks, and Diagram Detail

Text search and drawing labels: Main text is searchable, and embedded PDF bookmarks provide chapter and subsection navigation. Labels within the circuit and timing diagrams are not included in text searches. Small connector, pin, and signal labels in the circuit diagrams require zooming and page rotation for comfortable reading.

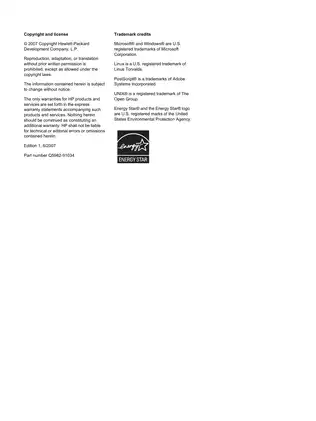

One printable English PDF contains 376 pages, including 12 front-matter pages, 362 numbered pages, and two closing pages: a blank page and the rear cover.

Print Engine, Paper Path, and Service Diagnostics

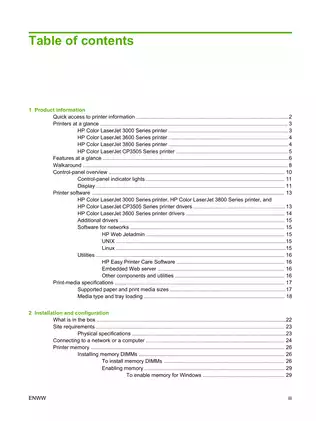

The following highlights are selected coverage, rather than a complete contents list. Other topics include memory-DIMM installation and verification, printer information pages, and embedded Web server functions.

• Operating theory: Engine control, laser/scanner operation, image formation, cartridge activation, motor and solenoid coordination, and sensor-based jam detection.

• Mechanical repair: Step-by-step removal and replacement procedures for the ETB, fuser, laser/scanner, cartridge drive motors, developing-separation drive, fuser drive, fans, and covers.

• Paper handling: Pickup-and-feed and pickup-drive assemblies, duplex-feed and reverse drives, cassette sensors, and optional feeder covers, driver PCA, and media sensor.

• Electrical assemblies: Formatter cage, DC controller, high- and low-voltage supplies, memory-controller, driver, pickup-and-feed and duplex PCAs, control panel, and sensor replacement.

• Bench diagnostics: Event logs, PQ troubleshooting pages, Disable Cartridge Check, paper-path and manual sensor tests, Component Test, Print/Stop Test, and engine, formatter, half-self, and drum-rotation checks.

• Diagrams and parts: Circuit diagrams, connector-location views, model-specific timing charts, and exploded assemblies with keyed FRU descriptions and part-number tables.

The internal repair and diagnostic material suits trained printer technicians familiar with laser-printing systems and ESD-safe servicing; HP restricts powered diagnostics with covers removed to trained service personnel.

Engine Operation and Print-Quality Fault Isolation

The operating sequence separates WAIT, standby, initial rotation, printing, and last rotation. It explains how formatter signals reach the laser/scanner through the DC controller and how feed, ETB, cartridge, and duplex drives interact with paper-path sensors.

The Power-on Sequence, Laser/Scanner System, and Pickup-and-Feed System Sensors drawings connect that explanation to individual mechanisms. DC Controller Connectors views, separate timing diagrams for the 3600 and the 3000/3800/CP3505 group, and the two-part General Circuit Diagram support connector and signal tracing.

Print-quality tables link symptoms to likely causes and corrective actions, supporting fault isolation before replacement assemblies are selected. They address light images and individual light colors, poor fusing, misregistration, smearing, misplaced images, reversed colors, missing colors, and “snail track” defects. Suspect areas include cartridges, bias contacts, the transfer unit, fuser, laser/scanner, high-voltage PCA, and DC controller.

FRU Repair and Model-Specific Parts

Repair coverage centers on field-replaceable units rather than component-level PCB repair. The parts-list instructions also explain that items omitted from the keyed tables are not field-replaceable units.

Parts distinctions include simplex and duplex front covers and ETBs, the 3000 paper-pickup assembly versus the 3600/3800/CP3505 design, and model-specific DC controllers and control panels. Formatter listings separate base/n from dn/dtn configurations for the 3000 and 3800, identify the 3600 I controller and CP3505 formatter, and distinguish new from exchange units. Fusers and low-voltage supplies are listed by input-voltage family.

The parts section separately identifies Q5982-90970 as the orderable printed copy of the service manual.

Replacement Follow-Up and Service Precautions

Formatter replacement includes transferring stored counts, the printer serial number, and Service ID. Calibration requirements accompany specified replacements, including the formatter, laser/scanner, and cassette media sensor; pickup-and-feed replacement includes a separate media-sensor calibration.

The belt-only component test carries a specific warning: ignoring its cartridge-removal prompt can damage the ETB or photosensitive drums. The pickup-and-feed procedures also identify high-voltage contact springs that can be bent during driver-PCA-cover removal.

Service precautions address electrical isolation, the hot fuser, laser/scanner protection, and ESD-sensitive assemblies.

Media, Cleaning, and Supply Data

Reference tables cover media sizes, tray loading, physical and site requirements, electrical demand, power consumption, acoustics, and operating conditions. Cartridge replacement estimates use individual-color coverage assumptions rather than fixed maintenance schedules.

Maintenance coverage includes cartridge handling, toner cleanup, fine-particle vacuum requirements, and HP Toner Cleaning Cloth part number 5090-3379.

Preview: Repeat Distances for Print-Defect Diagnosis

The repetitive-defects table lists approximate repeat distances of 75 mm for the fuser sleeve, 76 mm for the photosensitive drum, and 79 mm for the fuser pressure roller. These references work with the defect chart and ruler to associate recurring marks with the relevant rotating surface.
