1996 Kubota Z402-B Diesel Engine Workshop Manual (P/N 97897-01650)

Kubota’s 1996 Z402-B Workshop Manual, publication code 97897-01650, covers diesel engine service, maintenance, troubleshooting, and internal repair. Its service specifications also distinguish the AIXAM application’s injection-timing setting.

• Engine repair: Cylinder-head and valve disassembly, timing-gear and camshaft work, piston and connecting-rod service, and flywheel and crankshaft removal.

• Fault diagnosis: Troubleshooting tables and compression testing for starting problems, irregular running, exhaust smoke, poor output, overheating, and excessive oil consumption.

• Lubrication and cooling: Engine oil-pressure testing, oil-pump clearance checks, radiator and cap leak tests, thermostat testing, and water-pump disassembly.

• Fuel system: Fuel bleeding, injection-timing adjustment, pump-element and delivery-valve tightness tests, and injector pressure, spray-pattern, and seat-leakage checks.

• Starting and charging: Starter disassembly and inspection, solenoid tests, glow-plug checks, and alternator servicing, including the rectifier and IC regulator.

• Workshop reference: Maintenance checklists, tightening torque tables, factory specifications and allowable limits, special-tool illustrations, performance curves, and dimensional drawings.

Written for servicing personnel, this manual is suited to technicians equipped for mechanical measurement, component disassembly, and electrical testing.

Engine Diagnosis and Internal Repair

The troubleshooting tables connect symptoms with probable causes, corrective actions, and references to the relevant service pages. The compression-test procedure explains how repeat readings help distinguish cylinder and piston-ring leakage from valve or cylinder-head sealing problems before internal disassembly.

Cylinder-head work covers flatness and crack checks, valve-seat correction and lapping, valve stem-to-guide measurements, and guide replacement. Timing-gear and camshaft inspections include backlash, end clearance, and journal-clearance checks.

The piston and connecting-rod sections cover ring end gaps, ring-groove clearances, small-end bushings, and rod alignment. Crankshaft machining diagrams and repair-size tables accompany bearing-clearance inspections; cylinder repair extends to boring, honing, and matching oversize pistons and rings.

The piston-installation cautions explain how careless insertion can scratch chrome-plated surfaces and cause trouble inside the cylinder liner. Cylinder-head assembly notes also identify the O-ring as vulnerable to damage during installation.

Injection Pump and Nozzle Service

The Bosch MD mini pump and Bosch throttle-type nozzles have separate service coverage. Pump work covers removal and refitting, shim-based timing adjustment, and fuel-tightness testing; complete internal injection-pump overhaul is not included.

The AIXAM timing entry is separate from the standard engine setting. The timing section explains the relationship between gasket shims and injection timing, along with the effect of the starting timing-control mechanism on measurement.

Injector servicing includes nozzle-holder disassembly and reassembly, adjusting-washer selection, spray-pattern comparison illustrations, and valve-seat leakage tests. The procedures identify nozzle tester 07909-31361 for this work.

Oil Pump, Cooling, and Electrical Service

Oil-pressure diagnosis addresses the pump, strainer, filter cartridge, oil galleries, bearing clearances, and relief valve. The special-tool section identifies oil-pressure tester 07916-32031 and provides drawings for tools such as valve-guide and bushing replacement drivers.

Water-pump work includes the shaft, impeller, and mechanical seal. Radiator and cap testing are covered separately from thermostat inspection and removal.

The electrical sections include a starter exploded view, brush and commutator inspections, armature and field-coil tests, and alternator rotor and stator checks. A rectifier circuit schematic accompanies diode testing, with separate continuity checks for the IC regulator.

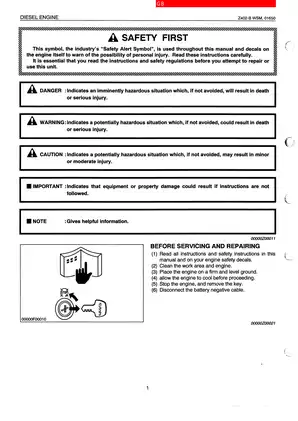

Before starting engine repair, review the engine-identification and safety sections, including precautions for pressurized fuel, hot coolant, and electrical isolation.

Selected Head, Valve, and Thermostat Specifications

These examples are a small selection of the manual’s assembly, adjustment, and inspection data.

The cylinder-head screw specification is 37.2 to 42.1 N·m with oiled threads and seats. The assembly section also specifies gradual tightening in sequence and subsequent retightening.

For valve work, cold valve clearance is 0.145 to 0.185 mm, and the intake valve opens 20 degrees before TDC. The cooling-system specifications list 85 °C as the thermostat’s full-opening temperature.

PDF Navigation, Languages, and Page Count

Text search and diagram detail: The manual text is not searchable. Embedded bookmarks organize the English, French, and German sections, although some French and German electrical entries have incorrect labels or destinations. Small terminal labels in the rectifier schematic require zooming.

Supplied as one printable, 187-page PDF containing English, French, and German text. The total already includes one front cover, one back cover, and two blank pages.
