Kubota B2710, B2910 & B7800 Tractor Operator's Manual, 2003 (P/N 6C170-6311-3)
76 Pages • 1 Printable PDF (English) • Download
Kubota Models Covered & Key Technical Specifications
Models & Model Codes: B2710 (B2710 HSD), B2910 (B2910 HSD), B7800 (B7800 HSD)
Model Year: 2003
-
Engine: 4-cylinder, vertical, water-cooled, 4-cycle diesel (V1305-E-D12 for B2710; V1505-E-D16 for B2910/B7800)
-
Displacement: 1335 cc (B2710), 1498 cc (B2910/B7800)
-
Gross Horsepower: 20.1 kW (27.0 HP) to 22.3 kW (30.0 HP)
-
Rated Revolution: 2600 rpm
-
Transmission: Main-hydrostatic, 3-range gear shift
-
Fuel Tank Capacity: 26 L (6.9 U.S. gals.)
-
Transmission Case Capacity: 14.5 L (3.83 U.S. gals.)
-
Wheel Bolt Torque: 196 to 225 N·m (145 to 166 ft-lbs), rear
-
Lug Nut Torque: 77 to 90 N·m (57 to 67 ft-lbs), front; 167 to 191 N·m (123 to 141 ft-lbs), rear
Kubota Manual Features & Selected Content Preview
This March 2003 Kubota operator's manual (P/N 6C170-6311-3) covers the B2710 HSD, B2910 HSD, and B7800 HSD hydrostatic-drive tractors.
Printable PDF and Page Guide

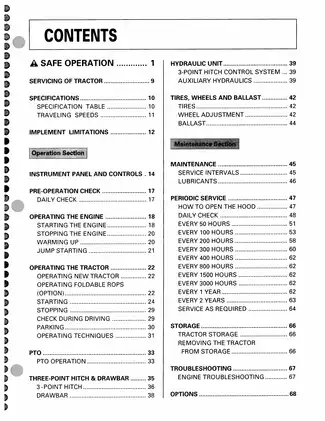

Text search and navigation: Use the printed table of contents to find sections by page number. PDF text search and embedded bookmarks are unavailable.
The English-language manual comes as one printable 76-page PDF. That total includes 68 numbered manual pages, four preliminary pages, one blank page, one Kubota company-information page, and the front and back covers.
Tractor Operation, Implement Setup, and Routine Service
These selected topics show the range of the manual. It also covers tractor storage and return-to-service checks.
- Engine and fuel service: Engine oil and filter changes, fuel-filter cleaning, step-by-step fuel-system bleeding, and air-cleaner maintenance for the V1305-E-D12 and V1505-E-D16 engines.
- Hydrostatic transmission: Fluid changes, transmission oil-filter replacement, suction-strainer cleaning, and clutch-pedal free-travel adjustment.
- Cooling system: Coolant flushing and replacement, radiator hose inspection, radiator-screen cleaning, and fan-belt tension adjustment.
- Axle, wheels, and brakes: Front axle oil changes and pivot adjustment, front-wheel toe-in, brake-pedal adjustment, and wheel-fastener torque checks.
- PTO and hydraulics: Rear and mid PTO operation, including stationary rear PTO use, plus three-point hitch setup and illustrated auxiliary outlet connections.
- Electrical checks: Engine-start interlock tests, the B7800 operator-seat switch test, battery maintenance, fuse identification by model, and light-bulb replacement.
For tractor owners and operators, the manual explains daily use and routine maintenance and directs major service work to a Kubota dealer.
Driving Controls and Rollover Protection

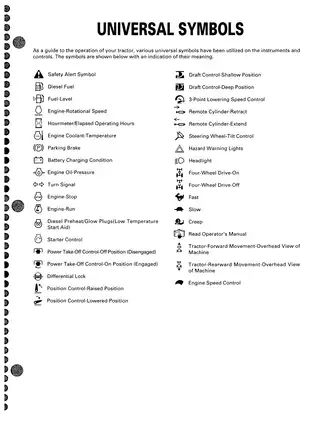

Daily inspection requirements, starting routines, cold-weather transmission warm-up, and driving techniques for field and road use are covered alongside the Easy Checker™ panel, gauges, and universal symbols.
The B2710 and B7800 use a speed-set device. The B2910 has separate cruise-control instructions, plus adjustments for its tilt and telescopic steering wheel and seat suspension.
Review the foldable ROPS and seat belt guidance before operation. Keep the safety interlocks in service and follow the manual's warning about jump-starting a frozen battery.
Model-Specific Hitch and Hydraulic Equipment
The B2710 and B2910 use position control and telescopic stabilizers. The B7800 uses a quarter inching valve and check chains. The B2910 also has telescoping lower links and a ratchet-type right lifting rod.
The rear hydraulic block outlet section applies to the B2710 and B2910. Kubota lists the mid PTO as an optional kit for the B7800. The auxiliary hydraulics section specifies a power-beyond valve with a relief valve for the mid outlet and identifies the tank return port.
The Hydraulic Control Unit Use Reference Chart links implement types to top-link mounting holes and sway settings. It helps owners match the hitch setup to the implement being attached.
Service Tables and Engine Troubleshooting
The service interval table and lubricant chart organize scheduled work, fluid capacities, oil grades, and grease points. The travel-speed and implement-limit tables give tire-dependent speeds and attachment limits. The manual also includes tire pressures and front and rear ballast guidance.
The fuel-filter section explains how contamination can accelerate wear in the fuel pump and injection nozzles. The transmission-strainer section explains how metal filings can damage hydraulic components and identifies the strainer, suction line, and O-ring in labeled illustrations.
The engine troubleshooting chart connects hard starting, loss of power, unexpected stops, abnormal exhaust smoke, and overheating with possible causes and basic checks.
Dealer service: Kubota refers valve-clearance adjustments, injection-nozzle pressure checks, and injection-pump checks to its dealers. Internal engine and hydrostatic transmission overhauls and electrical wiring schematics fall outside this operator's manual.
Examples of Pedal Free Travel and Front-Wheel Toe-In
For all three models, clutch-pedal free travel is 20–30 mm and brake-pedal free travel is 30–40 mm, measured at the top of each pedal's stroke. The manual specifies equal free travel for the left and right brake pedals.
With the front wheels pointing straight ahead, the toe-in check compares tire-bead spacing at hub height. The specified front measurement is 1–5 mm less than the rear measurement.
